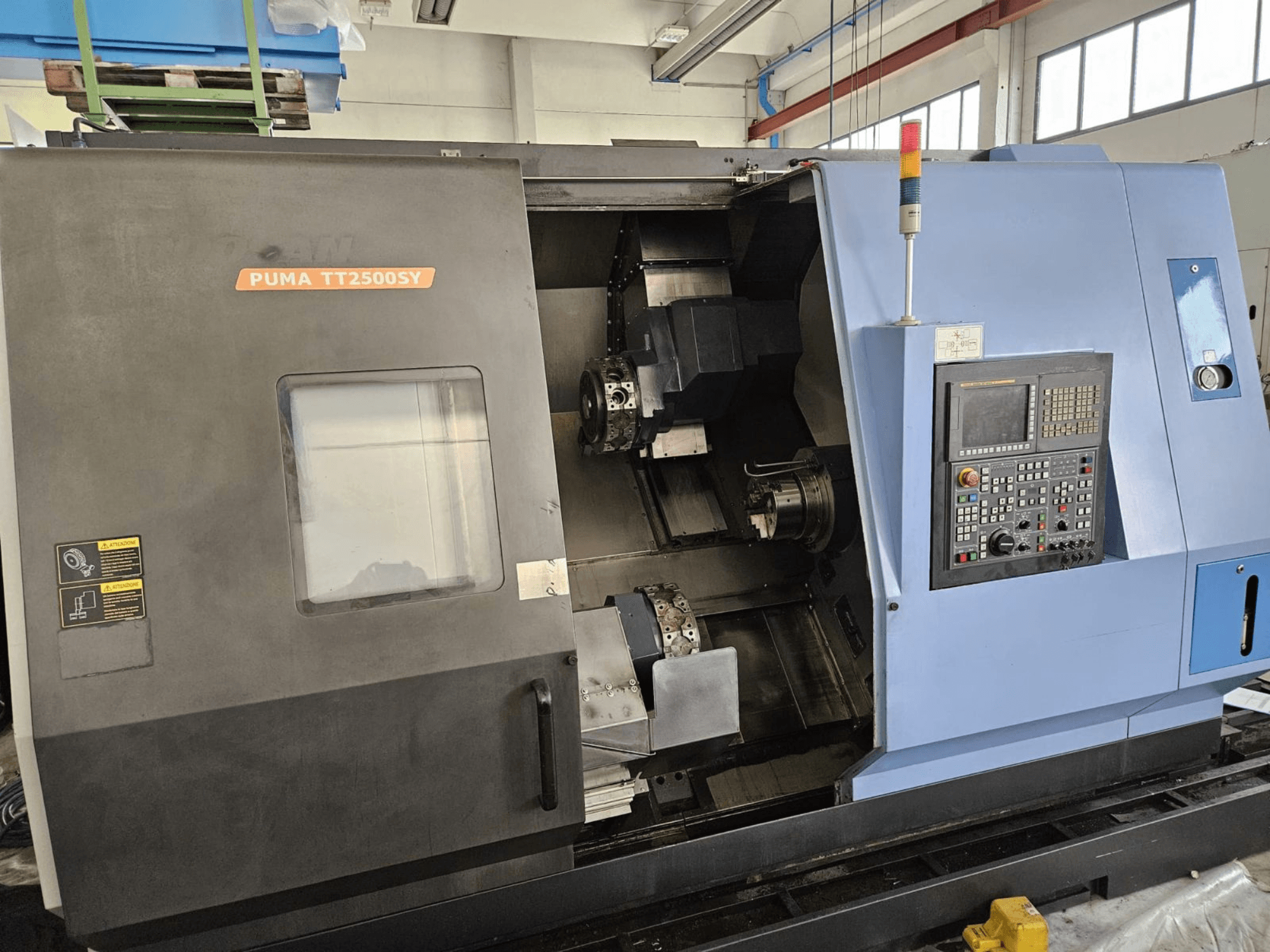

This 8-axis DOOSAN PUMA TT2500SY was manufactured in 2008. It features a maximum turning diameter of 390 mm on the upper turret and 300 mm on the lower turret, with a maximum turning length of 350 mm. The machine includes a robust tool turret with 24 stations and a rapid traverse speed of 20 m/min for X1 and X2 axes. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA TT2500SY multi-spindle turning machine. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2008
- MODEL: PUMA TT2500SY
- application type: Turning
- Location: Italy
- machine type: Multi-Spindle Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN PUMA TT2500SY
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i-MODEL A
Dimensions
- Machine Height: 2480 mm
- Machine Length: 4050 mm
- Machine Weight: 12700 kg
- Machine Width: 2210 mm
Movement
- Number of Axes: 8
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 76 mm
- Spindle Power: 26 kW
- Spindle Speed: 3500 RPM
Additional Information
Number of axes: 8 (X1, X2, Z1, Z2, Y, B, C1, C2)
Swing over bed: 800 mm
Swing over saddle: 620 mm
Max. turning diameter: Upper turret 390 mm; Lower turret 300 mm
Recommended turning diameter: 255 mm
Max. turning length: 350 mm
Main/left spindle motor power (30 min / cont): 26 / 22 kW
Main/left spindle nose: ASA A2-8
Right/sub spindle max. speed: 3500 rpm
Right/sub spindle motor power (30 min / cont): 26 / 22 kW
Right/sub spindle nose: ASA A2-8
C-axis indexing (C1 & C2): 360° in 0.001° increments
Upper turret travel (X1/Z1/Y): 255 / 800 / 120 mm (±60 mm Y)
Lower turret travel (X2/Z2): 190 / 900 mm
Sub-spindle B-axis travel: 810 mm
Rapid traverse (X1/X2): 20 m/min
Rapid traverse (Z1/Z2/B): 24 m/min
Rapid traverse (Y): 7.5 m/min
Turret stations: 24 total (12 upper + 12 lower)
Tooling type/interface: BMT65P
Indexing time: 0.2 s
Rotary tool spindle speed: 4000 rpm
Rotary tool motor power (15 min / cont): 5.5 / 1.5 kW
Machine electric power supply: 95.77 kVA
Additional equipment
Chip conveyor
Various static tool holders
Rotary live tool holders
Chucks on both spindles
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
