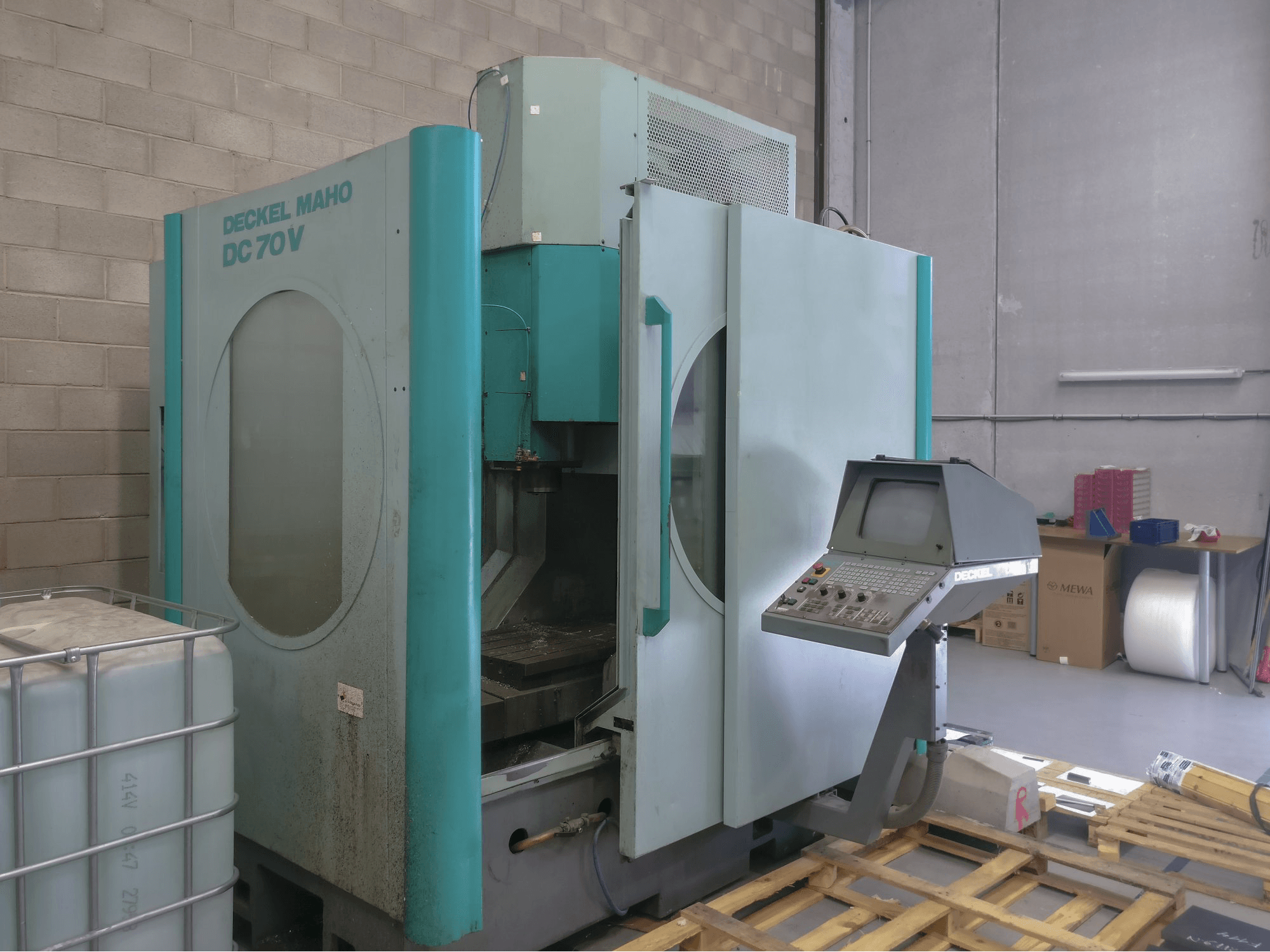

Front view of Deckel Maho Gildemeister DC 70 V Machine

DMG DC 70 V

Photo Gallery

Video gallery

SOLD

DMG - DC 70 V

1996

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Deckel Maho Gildemeister DC 70 V Vertical Machining Center

This DMG DC 70 V Vertical Machining Center was manufactured in Germany in 1996. The model incorporates a Dialog 112 Control unit and has worked mainly with steel in the past. The machine is in good mechanical condition. However, it has an electrical problem with the CNC which doesn't allow the machine to work. For its competitive price, it is an ideal equipment to retrofit.

Overview

brand: DMG
year: 1996
MODEL: DC 70 V
application type: Milling
Location: Spain
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Dialog
GINDUMAC ID: ES-MIL-DEC-1996-00001

Technical Information

General Data

Measurements width: 2600 mm
Measurements depth: 3300 mm
Measurements height: 2600 mm
Machine weight: 9000 kg

Control Unit

Brand: Dialog
Model: 112

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/min
Spindle motor power: 15 kW
Tool taper: BT-40

Movement

X-AXIS Movement: 700 mm
X-AXIS Working Feed: 10000 1/min
X-AXIS Rapid traverse: 30000 1/min
X-AXIS Accuracy: 0.001
Y-AXIS Movement: 550 mm
Y-AXIS Working Feed: 10000 1/min
Y-AXIS Rapid traverse: 30000 1/min
Y-AXIS Accuracy: 0.001
Z-AXIS Movement: 500 mm
Z-AXIS Working Feed: 10000 1/min
Z-AXIS Rapid traverse: 20000 1/min
Z-AXIS Accuracy: 0.001

Workpiece

Workpiece weight: 800 kg

Table

Outer length: 900 mm
Outer width: 550 mm
Height adjustment: 600 mm
TSlots size: 14 mm
Number of tslots: 5
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 650 mm

Tools

Slots in storage: 30
Max weight: 12 kg
Max tool diameter: 200 mm
Max tool length: 300 mm

Media

Main electronic connection: 400
Power consumption: 50 kVA
Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
