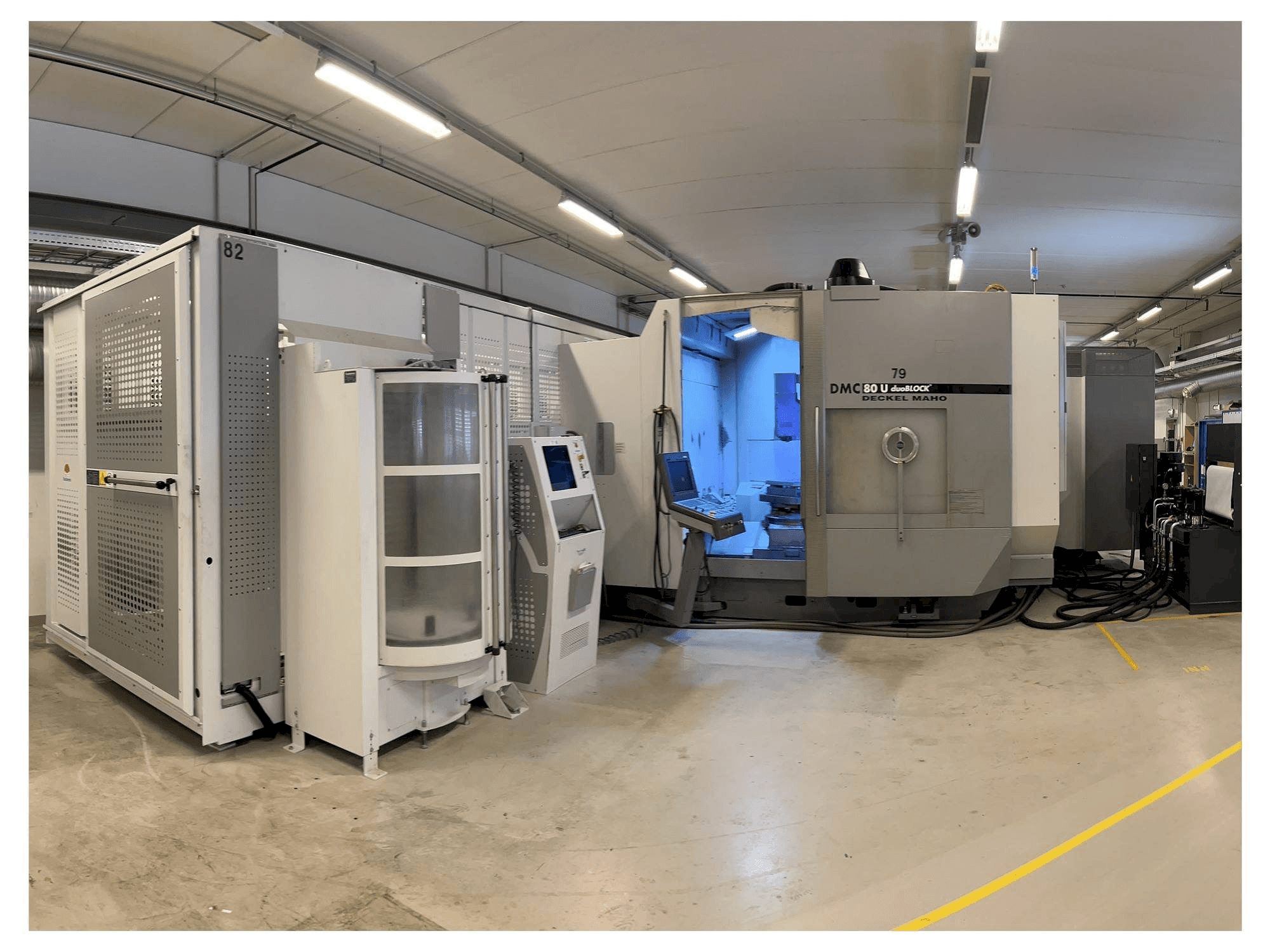

Front view of DMG DMC 80 U duoBLOCK machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG DMC 80 U duoBLOCK

Photo Gallery

DMG - DMC 80 U duoBLOCKPL-MIL-DMG-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG DMC 80 U duoBLOCK - Universal Machining Center

This DMG DMC 80 U duoBLOCK Universal Machining center was made in 2008 in Germany and has 28951 production hours, of which 14200 are spindle hours. It is equipped with a Heidenhain TNC 530 control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: DMG
year: 2008
MODEL: DMC 80 U duoBLOCK
production hours: 28951
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DMC 80 U duoBLOCK

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 530

Movement

X-axis Travel: 800 mm
Y-axis Travel: 800 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 19 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

A few tool holders

Machine Benefits

Technical Machine Benefits

Dmg dmc 80 u duoblock
1 x dmg measuring probe
A pallet warehouse: fastems, number of pallets: 12 pcs

Extra Information

Spindle hours: 14200h on counter, Spindle after full regeneration now: 0h Control: Heidenhain TNC 530 Spindle speed: 20-12000 rpm, 19/28 kW, SK40 DIN 69871 Spindle cooling: 80 Bar Feed rates: X,Y,Z: 20-10000 mm/min Tool magazine: 240 positions Travel distance X-axis: 800 mm Travel distance Y-axis: 800 mm Travel distance Z-axis: 800 mm Resolution X,Y,Z: 0.001 Tool mount: 450 mm NC rotary table with pallet: Max rotation of the table: 30 rpm Resolution of measuring system 0.001 deg Available workpiece weight: 1200 kg Table dim.: 800 mm Pallet Warehouse: Fastems Number of pallets: 12

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
