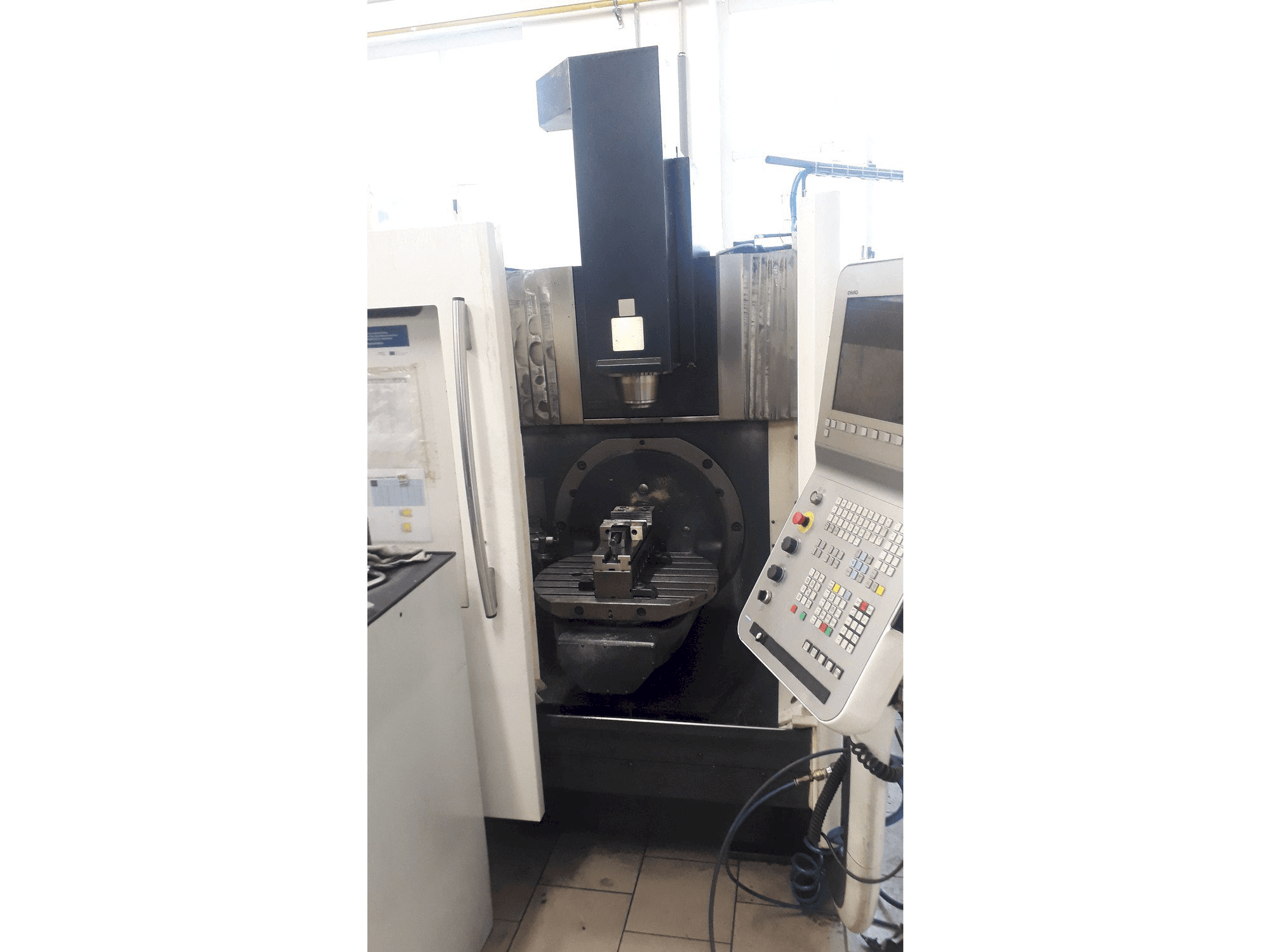

Front view of DMG DMU 50 ECO  machine

DMG DMU 50 ECO

DMG - DMU 50 ECO

2012

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG DMU 50 Eco vertical machine center was made in 2012 in Poland and has 32606 hours, of which 11997 are spindle hours. It is equipped with a Siemens 810D control unit and has 3+2 controlled axis. The machine has a spindle speed of 8000 rpm and is in very good condition. It comes with a chip conveyor.

Overview

  • brand: DMG
  • year: 2012
  • MODEL: DMU 50 ECO
  • production hours: 32606
  • application type: Milling
  • Location: Czech Republic
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Siemens
  • GINDUMAC ID: CZ-MIL-DMG-2012-00002

Technical Information

General Data

  • Measurements width: 4300 mm
  • Measurements depth: 2200 mm
  • Measurements height: 2615 mm
  • Machine weight: 4000 kg

Control Unit

  • Brand: Siemens
  • Model: 810D

Main drive

  • Number of spindles: 1
  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 13 kW
  • Number of axis: 3+2

Movement

  • X-AXIS Movement: 500 mm
  • Y-AXIS Movement: 450 mm
  • Z-AXIS Movement: 400 mm
  • B-AXIS Movement: -5 / +110 DEGREES MM
  • C-AXIS Movement: 360 DEGREES (0.001 DEGREE INCREMENT) MM

Table

  • Outer length: 630 mm
  • Outer width: 500 mm
  • Table load: 200 kg

Tools

  • Type of tool holder: SK 40

Media

  • Power consumption: 17 kva
  • Chip conveyor: Yes

    Additional Equipment

    • - Chip Conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Rapid feedrates: 12m/min
        • - Tool setter
        • - Table b-axis -5/+110 degrees
        • - Table c-axis 360 degrees
        • - Electronic handwheel
        • - There is no cooling through spindle
      • Qualitative Machine Benefits:
        • - Very good condition
        • - 2022 - new z-axis screw
        • - 2018 - new spindle installed when the machine had ca 8000 hours

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
