DMG DMU 50 VL

Photo Gallery

DMG - DMU 50 VLHU-MIL-DMG-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

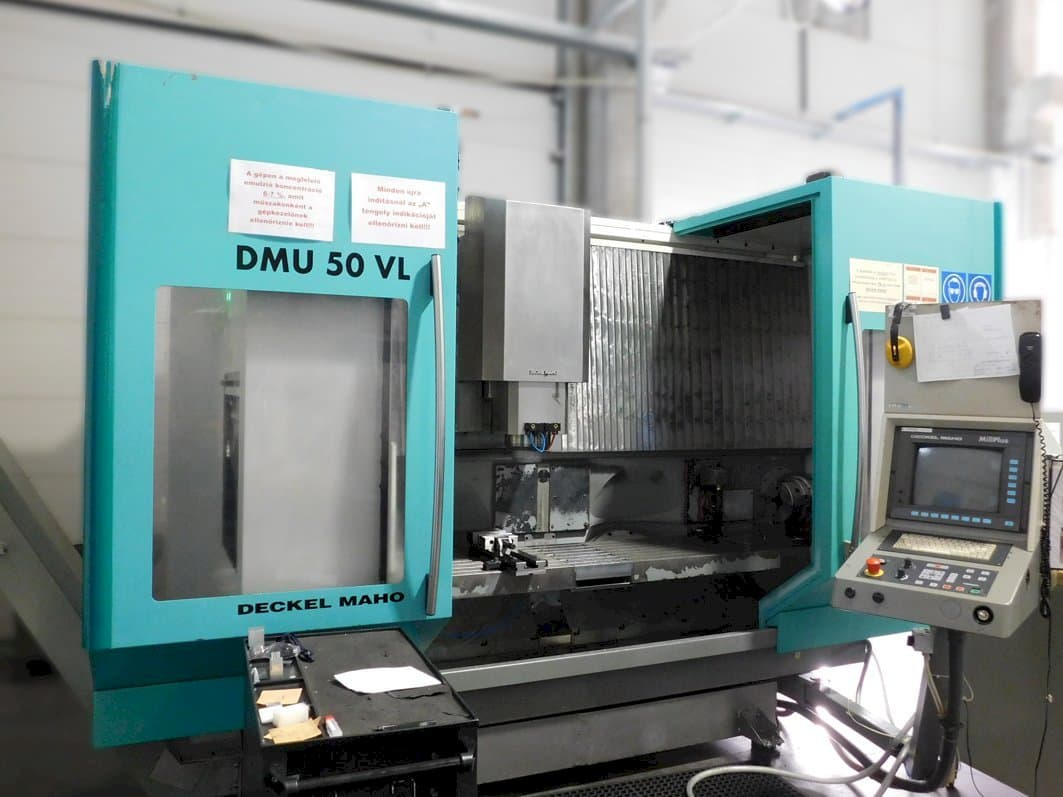

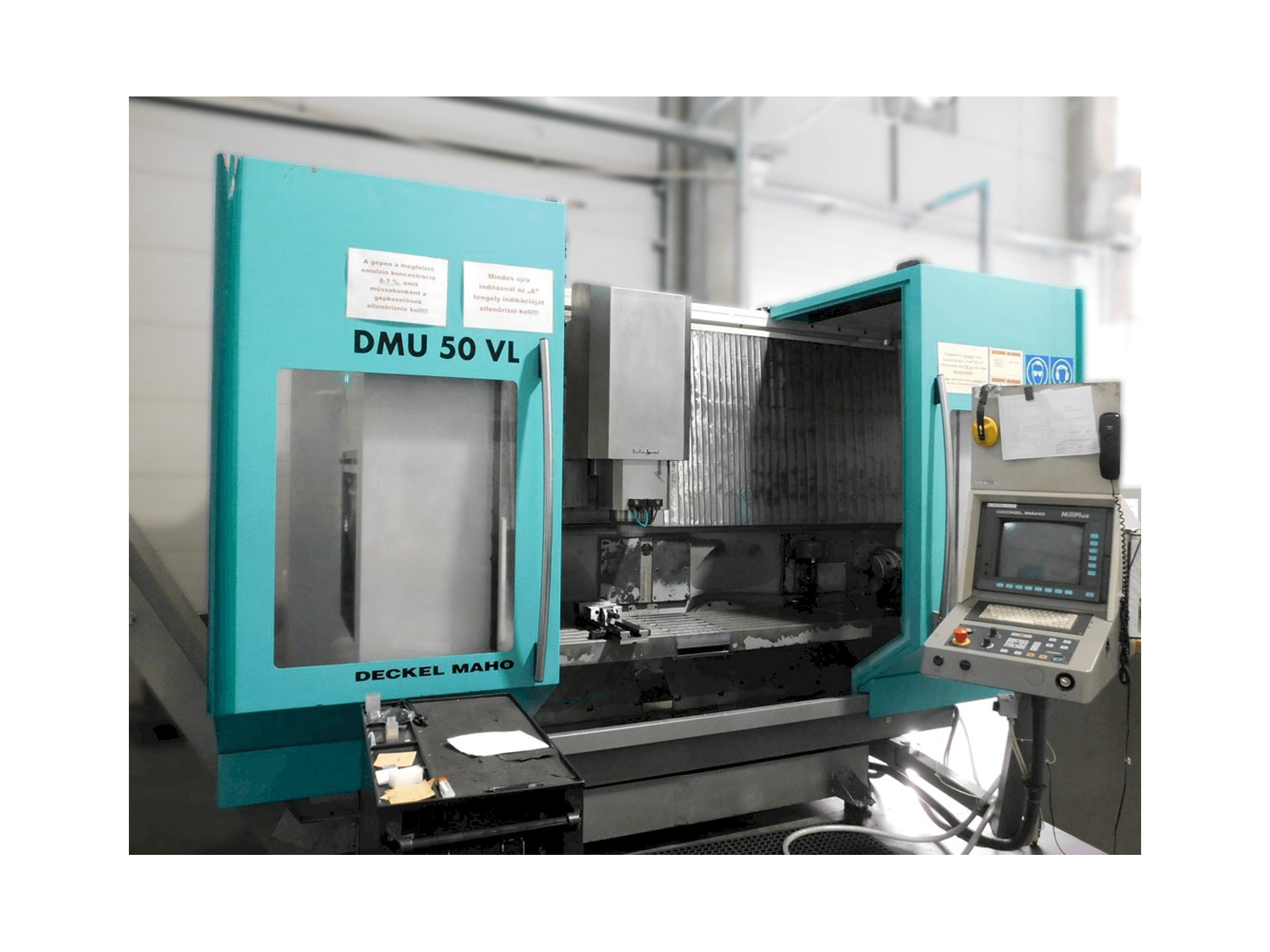

DMG DMU 50 VL Milling Machine

This DMG DMU 50 VL Milling Machine was produced in the year 2000. It has been on for 23242 hours, of which 7129 are spindle power hours. It is equipped with a Heidenhain MillPlus control unit. This 4 axis machine can work with a spindle speed up to 30000 rpm. It includes chip conveyor, coolant system, hand wheel for all axes, and spindle cooler.

Overview

brand: DMG
year: 2000
MODEL: DMU 50 VL
production hours: 23242
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DMU 50 VL

Control Unit

Control Brand: HEIDENHAIN
Control Model: MillPlus

Dimensions

Machine Depth: 3300 mm
Machine Height: 2400 mm
Machine Weight: 5600 kg

Movement

Number of Axes: 4
X-axis Travel: 1420 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Speed: 30000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Handwheel for all axes
Spindle cooler

Technical Machine Benefits

4 axis machine with a axis
A - axis rotation 360º
Table surface area 2 pcs. 800 x 480 mm
Distance of t-slots 63 mm
Width of t-slots 7 x 14 h7 mm
Number of tools 24 pcs
Feeds x/y/z 10. 000 mm/min
Rapid traverse x/y/z 30 m/min
Chip conveyor
Coolant system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
