DMG MORI - CLX 450 TCSK-TUR-DMG-2022-00001

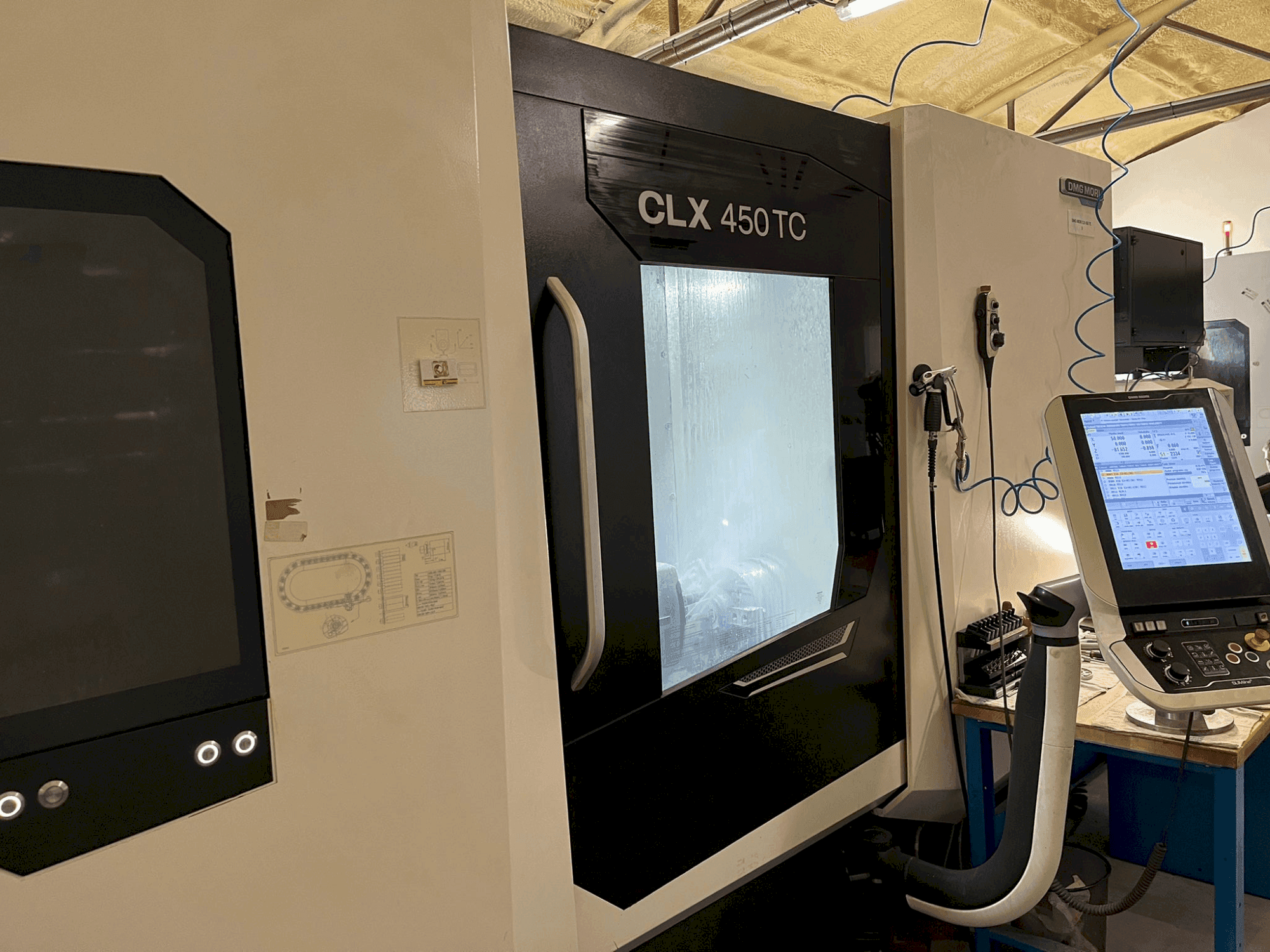

Name: DMG MORI CLX 450 TC
Brand: DMG MORI
SKU: SK-TUR-DMG-2022-00001
Price: 305000 EUR
Availability: InStock

305,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CLX 450 TC For Sale | gindumac.com

This 5-axis DMG MORI CLX 450 TC was manufactured in 2022, featuring a max. X-axis stroke of 750 mm, Y-axis stroke of 200 mm, and Z-axis stroke of 1,100 mm. It handles a max. workpiece diameter of 400 mm and length of 1,100 mm, with a bar capacity of 65 mm. Spindle speeds reach up to 5000 rpm. Weighs 9200 kg. If you are looking to get high quality turning capabilities consider the DMG MORI CLX 450 TC machine we have for sale.Contact us for more information.

Overview

brand: DMG MORI
year: 2022
MODEL: CLX 450 TC
production hours: 8574
application type: Turning
Location: Slovakia
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG MORI CLX 450 TC

General Data

Machine weight: 9200 kg

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 5000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 1100 mm

Workpiece

Workpiece drm: 400 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Workpiece length: 1100 mm
Max. Bar capacity diameter: 65 mm

Extra Information

Through-hole clamping device Ø67 mm Turning-milling spindle compactMASTER, drive power 8.8/10.5 kW (S1-100% load / S3-40% load-2min), torque 73/90 Nm (S1-100% load / S3-40% load -2 min), spindle speed 0-12,000 rpm, clamping HSK-A 63 DIN 69893 -B-axis ±120° / Y-axis ±100 mm 30-position chain magazine - absolute direct measuring systems in X- and Y-axis - hydraulically operated tailstock with foot pedal DMG MORI IoT connector Ergonomic control panel DMG MORI SLIMline - Siemens 840D sl Compact cooling emulsion system, includes: - cooling emulsion tank, 980 l - 8 bar/20 l/min (CTX beta 2000 TC, CTX gamma TC 2nd: 8 bar/80 l/min) and 20 bar/25 l/min (theoretical pump output) Programmable via M-functions cooling emulsion supply via lathe/milling spindle - belt filter unit, filtration grade 40 µm - emulsion cooling, 4.5 kW - pump with level control Mechanical oil mist separator, 1100 m³/h, filtration grade H13 Tool breakage monitoring Easy Tool Monitor 2.0 Touch probe for measuring parts RMP40, Renishaw Tool measuring device RP1, Renishaw Measuring system for Z1-axis CNC control with Siemens 840D sl Operate including 19" SLIMline® control with multi-touch-monitor Tailstock function for counter spindle including pedal. Automatic door, electric B-H7050 1 Electrical interface Profibus standard for Robo2Go

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
