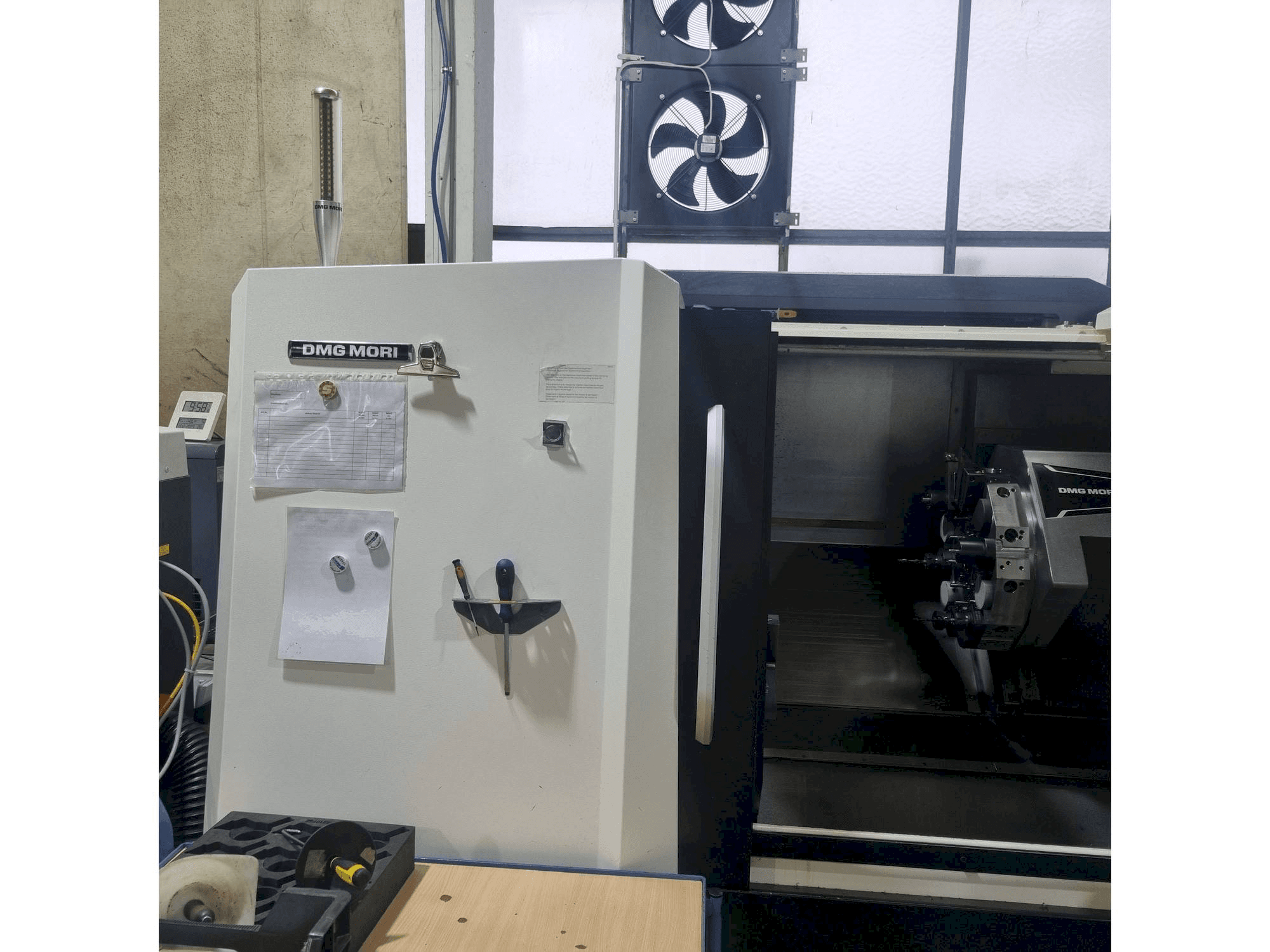

DMG MORI CLX 450 V4 Lathe

This DMG MORI CLX 450 V4 Lathe was manufactured in the year 2019 in Italy and has 3298 spindle hours. It is equipped with a DMG MORI SLIMline® on Fanuc Touch control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: DMG MORI
year: 2019
MODEL: CLX 450 V4
production hours: 3298
application type: Turning
Location: Germany
machine type: Lathe
availability: Sold
control unit brand: DMG MORI

Technical Information - DMG MORI CLX 450 V4

General Data

Measurements width: 3000 mm
Measurements depth: 2660 mm
Measurements height: 1940 mm
Machine weight: 6300 kg

Control Unit

Brand: DMG MORI
Model: SLIMline® on Fanuc Touch control

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 17-25,5 kW
Number of axis: 2

Tools

Type of tool holder: VDI40

Additional Equipment

- no driven tools included
- Lathe holder
- Collet chuck

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter: 315 mm, circumferential diameter: 650 mm, rotation diameter: 370 mm
- - Rod diameter max: 80 mm
- - Tool drive, c-axis, y-axis, direct path measuring system x-, y-axis
- - Longitudinal travel 830 mm, plane path 271 mm, vertical travel y +/- 60 mm, rapid traverse x 30 m/min, rapid traverse z 30 m/min, rapid traverse y 22. 5 m/min
- - Drive power (100% ed) 17 kw, drive power (40% ed) 25. 5 kw
- - Max. Torque (40% ed) 426 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
