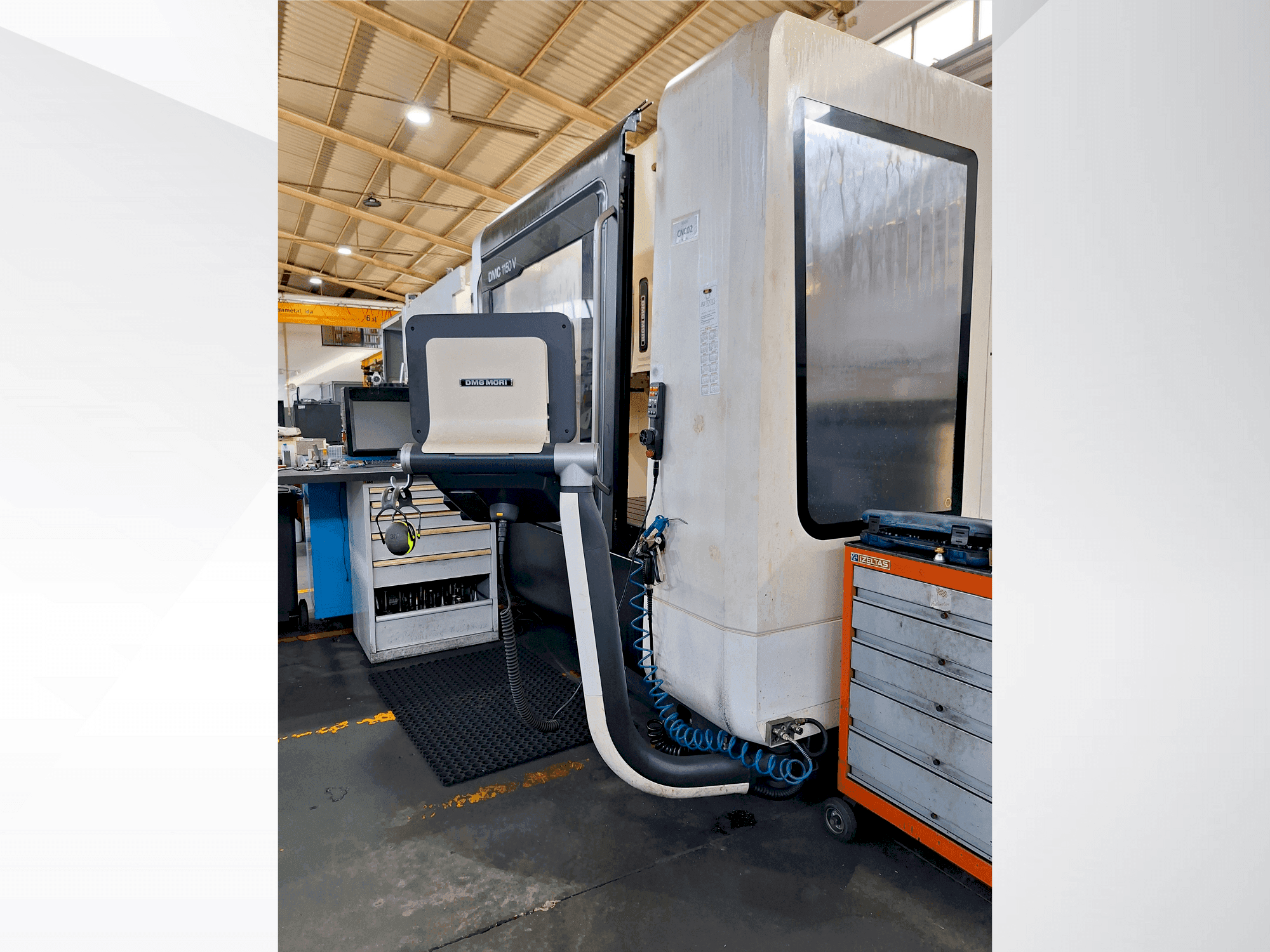

This 3-axis DMG MORI DMC 1150 V was manufactured in 2016. A robust vertical machining center featuring a 1150 mm X-axis, 700 mm Y-axis, and 550 mm Z-axis. It boasts a rapid traverse of 42 m/min and a speed range up to 14,000 rpm. Equipped with a Heidenhain TNC 640 control, 30-position SK40 tool magazine, and a chip extractor system. If you are looking to get high-quality milling capabilities consider the DMG MORI DMC 1150 V machine we have for sale. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2016
- MODEL: DMC 1150 V
- application type: Milling
- Location: Portugal
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMC 1150 V
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 640
Main drive
- Spindle speed range: 20 - 14000 1/MIN
- Tool taper: ISO40/SK40 DIN69871
- Number of axis: 3
Movement
- X-AXIS Movement: 1150 mm
- X-AXIS Rapid traverse: 42 m/min
- Y-AXIS Movement: 700 mm
- Y-AXIS Rapid traverse: 42 m/min
- Z-AXIS Movement: 550 mm
- Z-AXIS Rapid traverse: 42 m/min
Table
- Outer length: 1460 mm
- Outer width: 750 mm
Additional Equipment
- - Infrared touch probe Make: Renishaw PP 60 optical (OMP 60)
- - Tool length and diameter measurement
- - Automatic cleaning of tool holders using an air jet
- - Tool cone calibration equipment
- - Safety package for power supply failure
- - Overvoltage limiter
- - Undervoltage monitoring with rapid braking activation
- - Electronic handwheel
- - Chip extractor (chip scraper)
Additional Information
- Technical Machine Benefits:
- - Screen size: ergoline® control, 19” screen
- - Tool holder: in accordance with din69872
- - Tool changer positions: 20
- - Tool magazine positions: 30 sk40
- - Tool storage: magazine with positions and double gripper, incl. Manual direct loading
- - Tank capacity: 310 l
- - Discharge height: 950 mm
- Qualitative Machine Benefits:
- - Coolant wash in the work area
- - Coolant change area
- - Drill gun for chip removal
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
