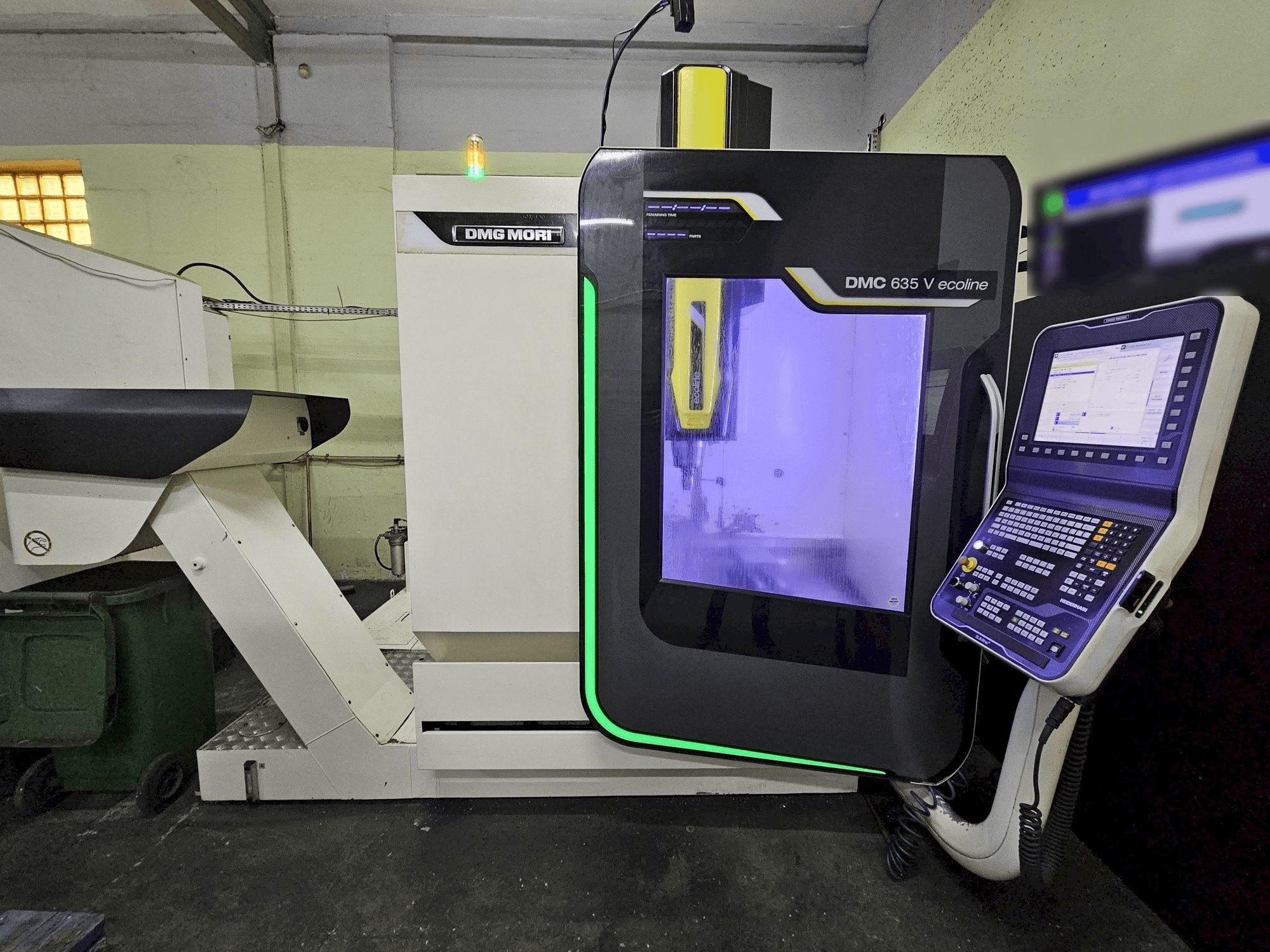

Front view of DMG MORI DMC 635V ecoline  machine

DMG MORI DMC 635V ecoline

DMG MORI - DMC 635V ecoline

2014

43,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG MORI DMC 635V ecoline Vertical Machining Centre was manufactured in 2014 in Poland. It has 3 axes with a X-travel of 635mm. Equipped with a tool magazine of 20 tool it can handle a max. tool weight of 6 kg, a max. tool length of 300 mm and a max. tool diameter of 80 mm. The table size is 790 x 590 mm with a max. load of 600 kg. It runs with a SK40 tool holder and a spindle speed of 12000 rpm. The machine has operated 63868 power on hours and 33482 spindle hours. It comes with chip conveyor and cooling through spindle. See photo and video gallery for more impressions.

Overview

  • brand: DMG MORI
  • year: 2014
  • MODEL: DMC 635V ecoline
  • production hours: 33482
  • application type: Milling
  • Location: Poland
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • GINDUMAC ID: PL-MIL-DMG-2014-00004

Technical Information

General Data

  • Machine weight: 3900 kg

Controller

  • Brand: DMG MORI
  • Model: SLMline with HEIDENHAIN TNC 620

Main drive

  • Spindle speed range: max. 12000 rpm 1/MIN

Movement

  • X-AXIS Movement: 635 mm
  • X-AXIS Rapid traverse: 30 m/min
  • X-AXIS Accuracy: 0.001
  • Y-AXIS Movement: 510 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Accuracy: 0.001
  • Z-AXIS Movement: 460 mm
  • Z-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Accuracy: 0.001

Table

  • Outer length: 790 mm
  • Outer width: 560 mm
  • Table load: 600 kg

Tools

  • Slots in storage: 20
  • Max weight: max. 6 kg
  • Max tool diameter: max. 80 mm
  • Max tool length: max. 300 mm
  • Type of tool holder: SK40

    Additional Equipment

    • - Cooling through the spindle
    • - Chip conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - X-axis: 635 mm // y-axis: 510 mm // z-axis: 460 mm
        • - Speed range max. 12000 rpm
        • - Rapid traverse in x / y / z: 30 m/min
        • - Positioning accuracy, resolution in x / y / z: 0. 001 mm
        • - Number of tools: 20 pcs
        • - Tool weight max. 6 kg // tool length max: 300 mm // tool diameter max: 80 mm
        • - Chip-to-chip time: 5 sec
        • - Table: 790 x 560 mm
        • - Table height (upper edge of table): 720 mm
        • - Table load (assembly weight): 600 kg
      • Qualitative Machine Benefits:
        • - Power on: 63868h
        • - Spindle: 33482h

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
