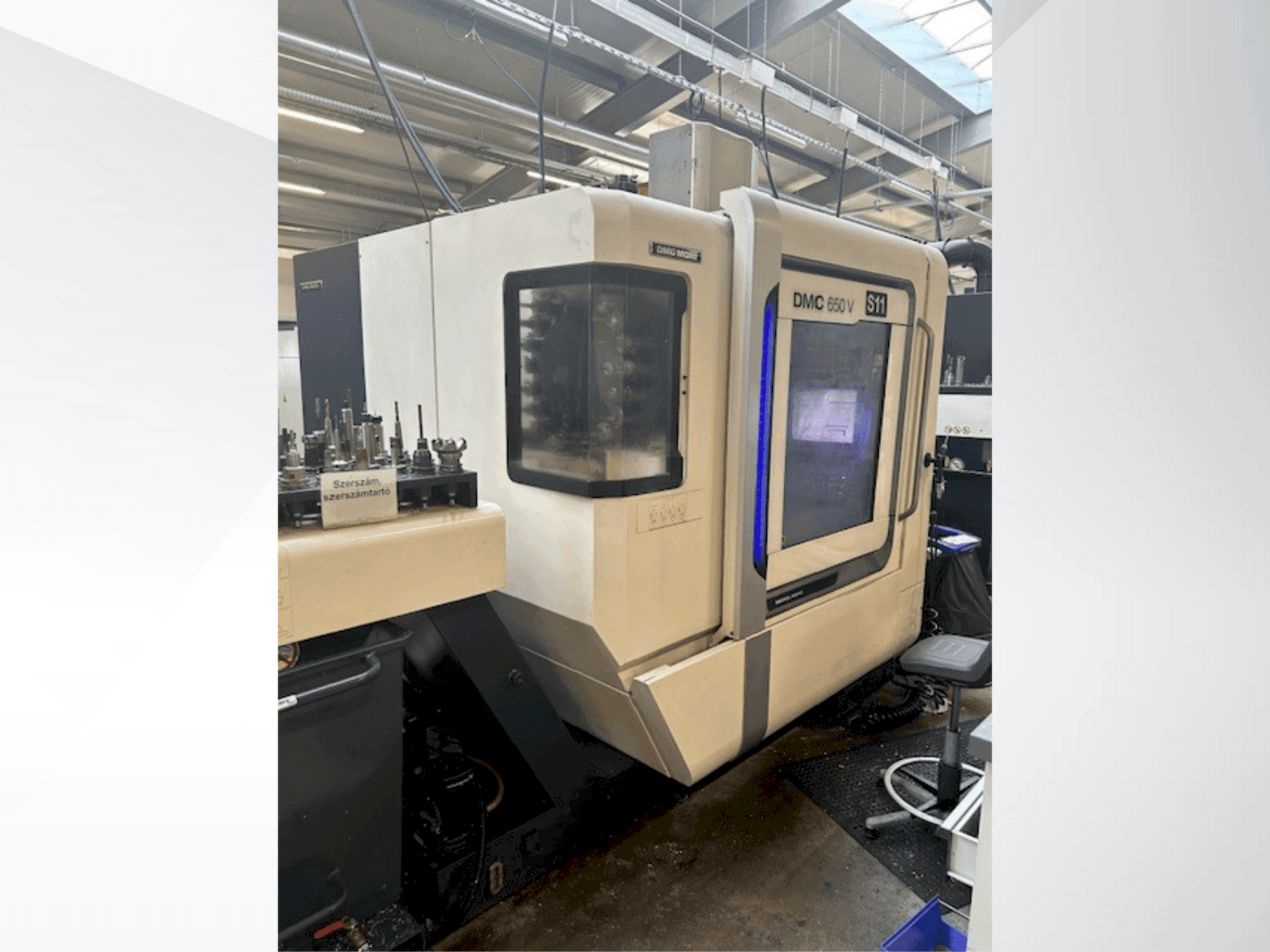

This 3-axis DMG MORI DMC 650 V was manufactured in 2014. A vertical machining centre featuring a Heidenhain TNC 640 control, it offers a robust toolchanger with 20 SK40 slots and a rapid feed of 36 m/min. The spindle operates at speeds up to 14,000 rpm, supported by an internal coolant supply at 20 Bar. Ideal for precision tasks with its direct measuring system in X, Y, Z. Contact us for more information about this machine.
Overview
- brand: DMG MORI
- year: 2014
- MODEL: DMC 650 V
- production hours: 6355
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMC 650 V
Control Unit
- Brand: HEIDENHAIN
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 650 mm
- X-AXIS Rapid traverse: 36 m/min
- Y-AXIS Movement: 520 mm
- Y-AXIS Rapid traverse: 36 m/min
- Z-AXIS Movement: 475 mm
- Z-AXIS Rapid traverse: 36 m/min
Table
- Outer length: 900 mm
- Outer width: 570 mm
Turret
- Tool taper: ISO40/SK40 DIN69871
Additional Equipment
- - Chip conveyor and flushing working area
- - Spray gun for swarf removal
- - Infrared measuring probe TS649
- - Direct measuring system X, Y, Z
Additional Information
- Technical Machine Benefits:
- - Tool clamping: din69872
- - Toolchanger: 20 places sk40
- - Coolant-air blast change-over
- - Internal coolant supply with rotary inlet, 20 bar, cartridge filter, 245-liter tank capacity
- Qualitative Machine Benefits:
- - Manual control panel
- - Design version white
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
