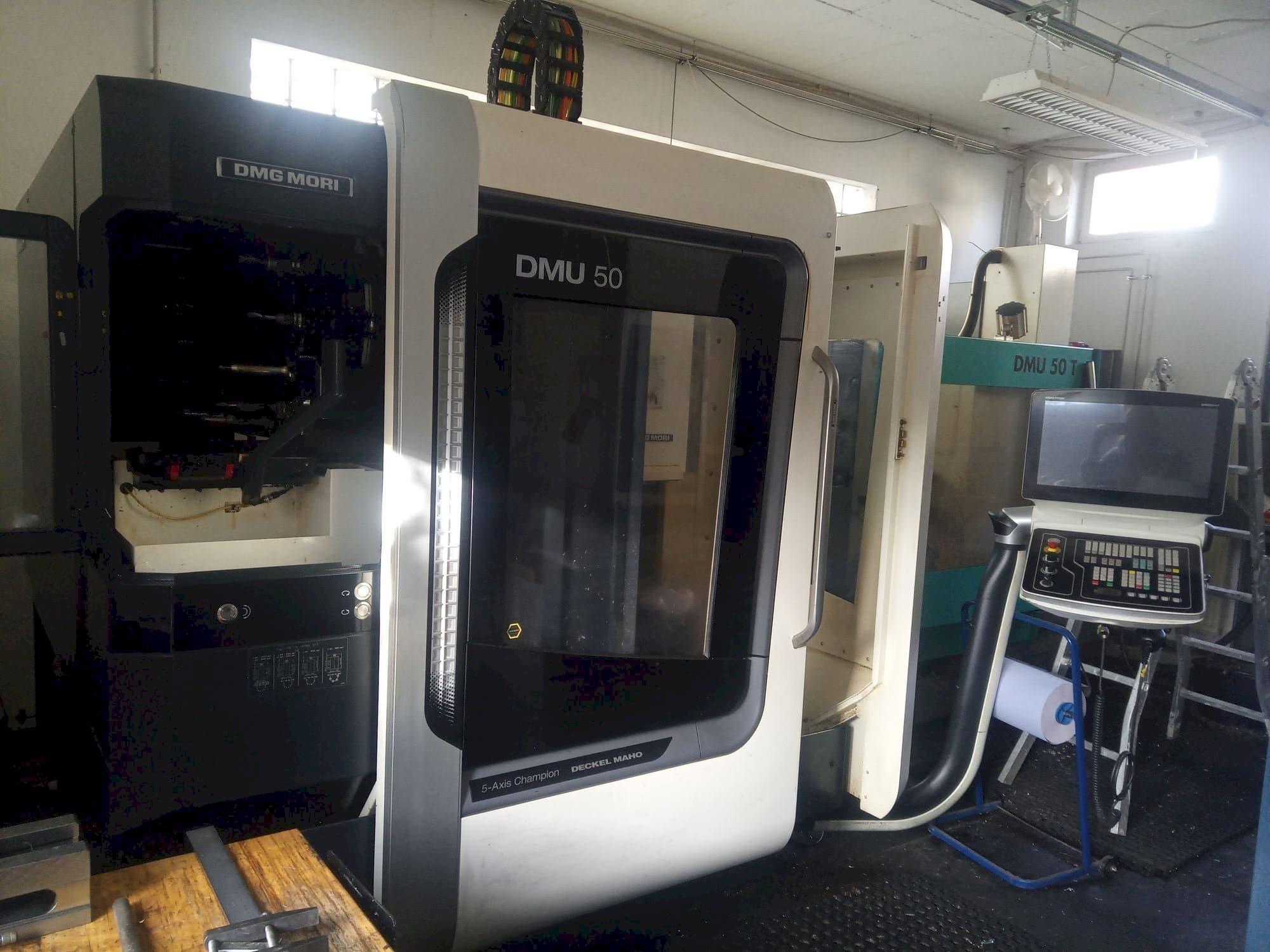

Front view of DMG MORI DMU 50  machine

DMG MORI - DMU 50DE-MIL-DMG-2016-00002


Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This DMG Mori DMU 50 Universal Machining center was manufactured in the year 2016 in Germany and has 11,212 machine on hours of which 3,596 are spindle hours. It is equipped with a CELOS SIEMENS 840D sI Operate Multi Touch control unit and has 5 axis. The machine has a spindle speed of 14000 rpm. See geometry protocol attached as PDF, made by DMG Mori on January 29th, 2024 for further information on the condition of the machine.


  • brand: DMG MORI
  • year: 2016
  • MODEL: DMU 50
  • production hours: 3596
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (universal)
  • availability: Sold
  • control unit brand: CELOS Siemens

Technical Information - DMG MORI DMU 50

General Data

  • Machine weight: 4450 kg

Control Unit

  • Brand: CELOS Siemens
  • Model: 840D sI Operate Multi Touch

Main drive

  • Spindle speed range: 14000 1/MIN
  • Spindle motor power: 14,5-20,3 kW
  • Number of axis: 5


  • X-AXIS Movement: 500 mm
  • X-AXIS Feed Force: 30 m/min
  • Y-AXIS Movement: 450 mm
  • Y-AXIS Feed Force: 30 m/min
  • Z-AXIS Movement: 400 mm
  • Z-AXIS Feed Force: 30 m/min


  • Slots in storage: 30
  • Type of tool holder: SK 40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Celos® mit siemens 840d si operate with 21,5 ergoline® control
      • - Swivel rotary table with simultaneous capability
      • - Clamping surface d630 x 500
      • - Swivel range -5 to +110
      • - 360° rotation axis
      • - Including direct measuring systems b- and c-axis and plane transformation
      • - Vertical chain with double gripper including set-up aid for tool loading
      • - Flushing gun for chip flushing

    Extra information

    • - No chip conveyer included // Spindle Hours 3,596 & Machine On Hours 11,212

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
