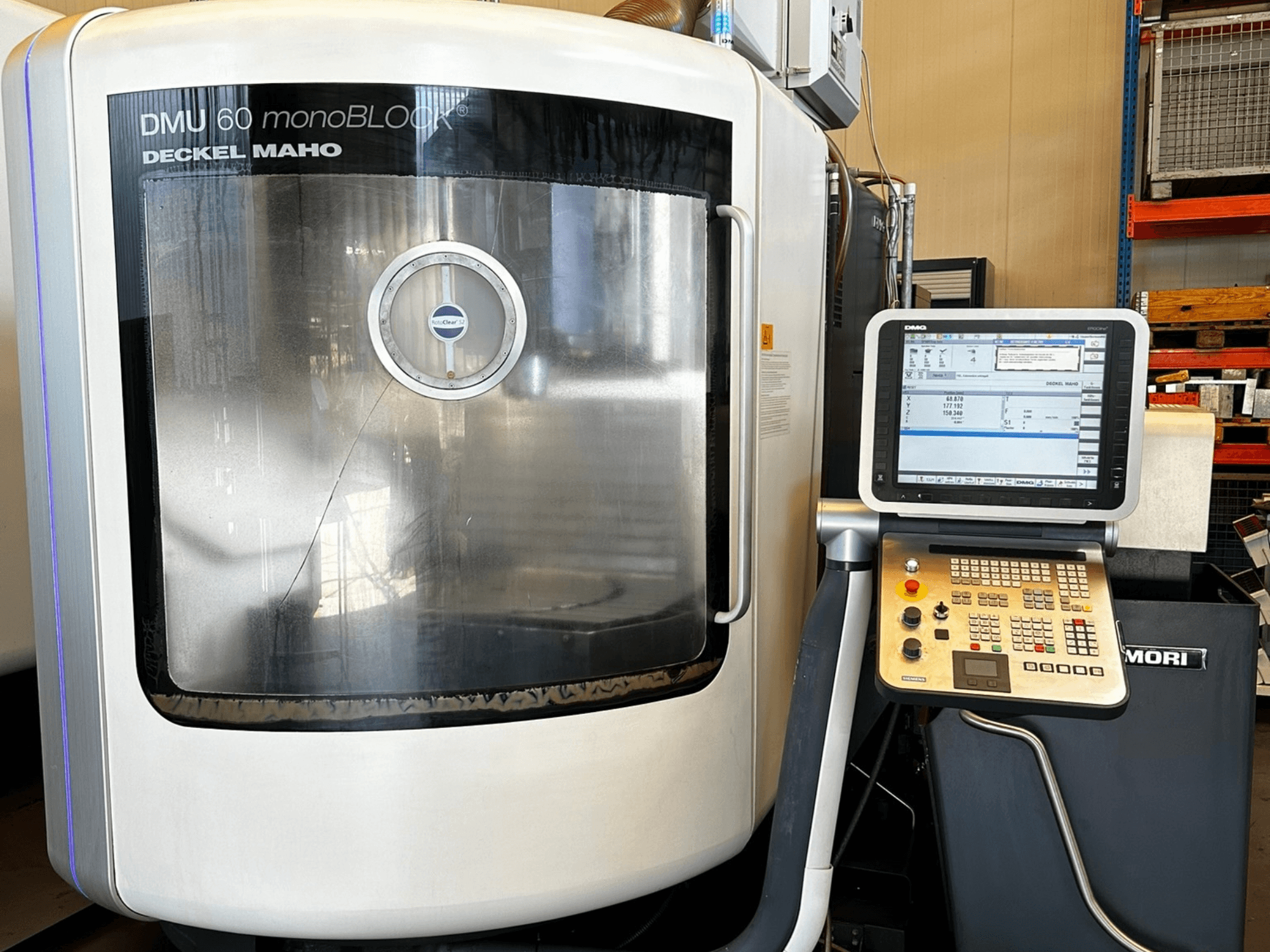

DMG MORI DMU 60 monoBLOCK vertical machining center, front view, showing touchscreen control panel and reflective window.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMU 60 monoBLOCK

Photo Gallery

DMG MORI - DMU 60 monoBLOCKAT-MIL-DMG-2010-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMU 60 monoBLOCK For Sale | gindumac.com

This 5-axis DMG MORI DMU 60 monoBLOCK was manufactured in 2010. It features a working area of 730 mm x 560 mm x 560 mm and a rigid table size of 1,000 mm x 600 mm. The machine is equipped with a motor spindle capable of 18,000 rpm and includes a controlled NC swivelling milling head. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 60 monoBLOCK vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2010
MODEL: DMU 60 monoBLOCK
production hours: 8510
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI DMU 60 monoBLOCK

Control Unit

Control Brand: SIEMENS
Control Model: 840D solutionline

Movement

Number of Axes: 5
X-axis Travel: 730 mm
Y-axis Travel: 560 mm
Z-axis Travel: 560 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 18000 RPM
Taper Size: SK 40

Additional Information

Swivelling milling head: Controlled NC B-axis with hydraulic clamping
- Spindle offset: 100 mm
- Swivelling range: -120° / +30° (X-axis travel reduced by 100 mm)
Tool changer: Pick-up system, 24 magazine positions
Table: Rigid, 1,000 mm x 600 mm
Control: Siemens 840D solutionline
- 3D path control
- 3D machining, 3D tool correction
- TRANSMIT lateral surface transformation (milling of cylindrical paths - TRACYL)
- CompCad compressor function for high-speed machining
- Operating mode 4 (manual intervention with doors open)
Probing and calibration:
- 3D measuring probe
- 3D quickSET toolkit for checking/correcting 5-axis kinematic accuracy
Running time: 30,106 hours (spindle: 8,510 hours)
Note: Soft key buttons on the screen sometimes fail; operation may require the machine’s mouse pad or an external keyboard.

Additional equipment

Chip conveyor
Optional: 125 SK40 tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
