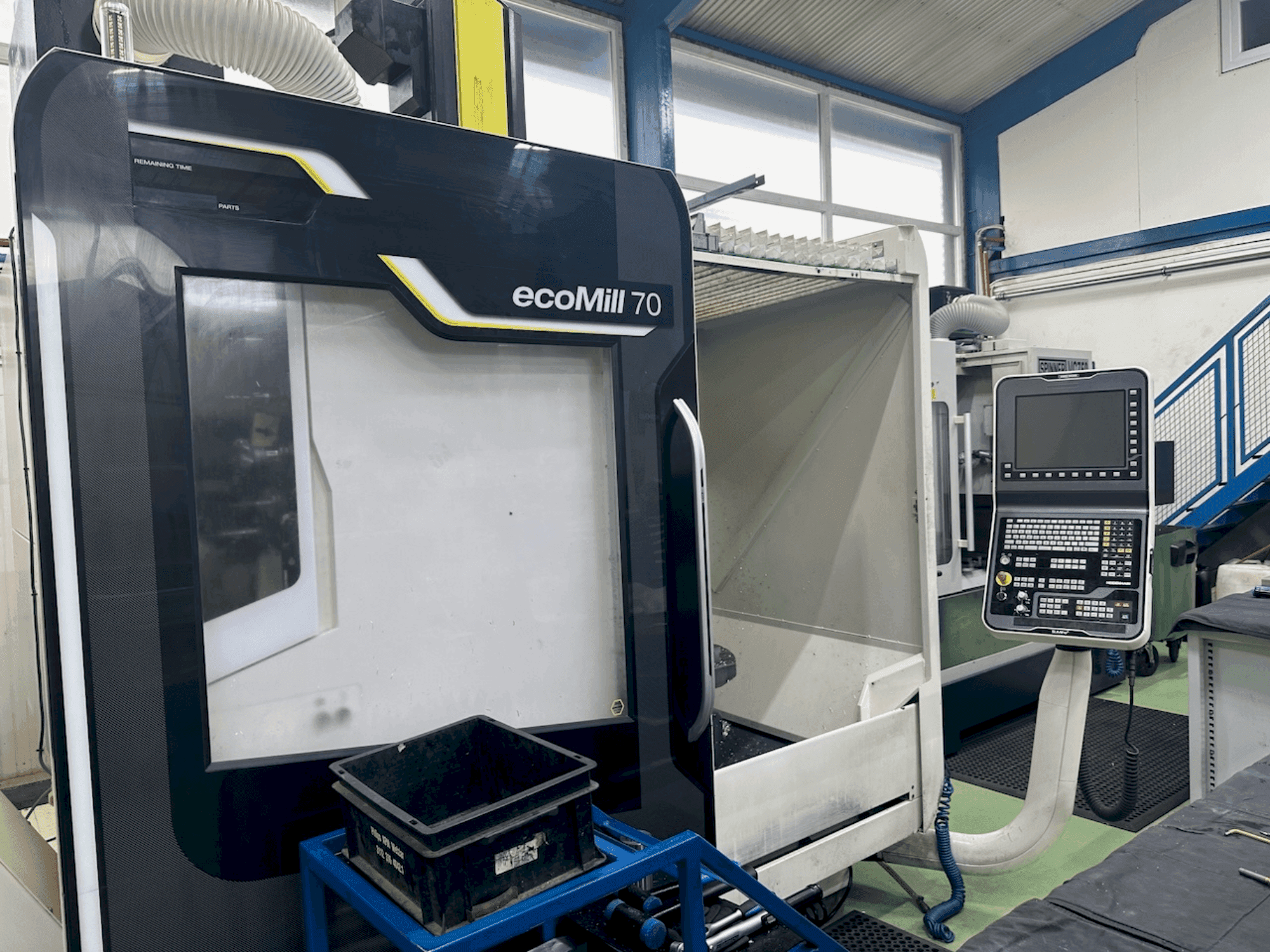

DMG MORI - ecoMill 70HU-MIL-DMG-2016-00001

Additional Equipment

• - 3D Quickset
• - Protime oil mist collector
• - Renishaw tool measuring
• - Spindle through cooling
• - For tooling with tooling support
• - With closed machining space (roller roof)
• - ASCII with keyboard

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Ecomill 70 with slimline module
  • - Tilt rotary table d 800x620 / digitally driven tiltable nc rotary table / rotating range b (-10o/+95o) / c (360o) / rapid traverse of linear axes 24 m/min
  • - Ac main drive 13/9 kw (40/100 % ed) / tool holder sk 40 according to din 69871
  • - 32-position tool change magazine with quick double gripper
  • - Direct path measuring system x,y,z, / measuring units with sealing air
  • - C-k4227 ecoline probe kit for heidenhain control consisting of: pp40 probe with optical signal transmission; ts27r probe for tool measurement; calibration mandrel with tool holder; calibration ring; transport case. Option direct path measuring system recommended
  • - C-k2630 heidenhain kinematicopt cycle / ool kit for checking and correcting the kinematic accuracy of 5-axis machine configurations (only in combination with probe option)
  • - Coolant/chip removal
  • - C-k3405 parts of the 1st production package: coolant supply via spindle 12 bar; tank volume 360 ​​liters; chip container; flushing gun for chip washing; coolant - blow-off air changeover / external with m-function; 4-color indicator light
• Qualitative Machine Benefits:
  • - Heidenhain control options
  • - C-h3035 electronic handwheel
  • - Documentation
  • - C-hu1 documentation in hungarian 0. 00
  • - Screen language
  • - C-d-hu screen text in hungarian

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
