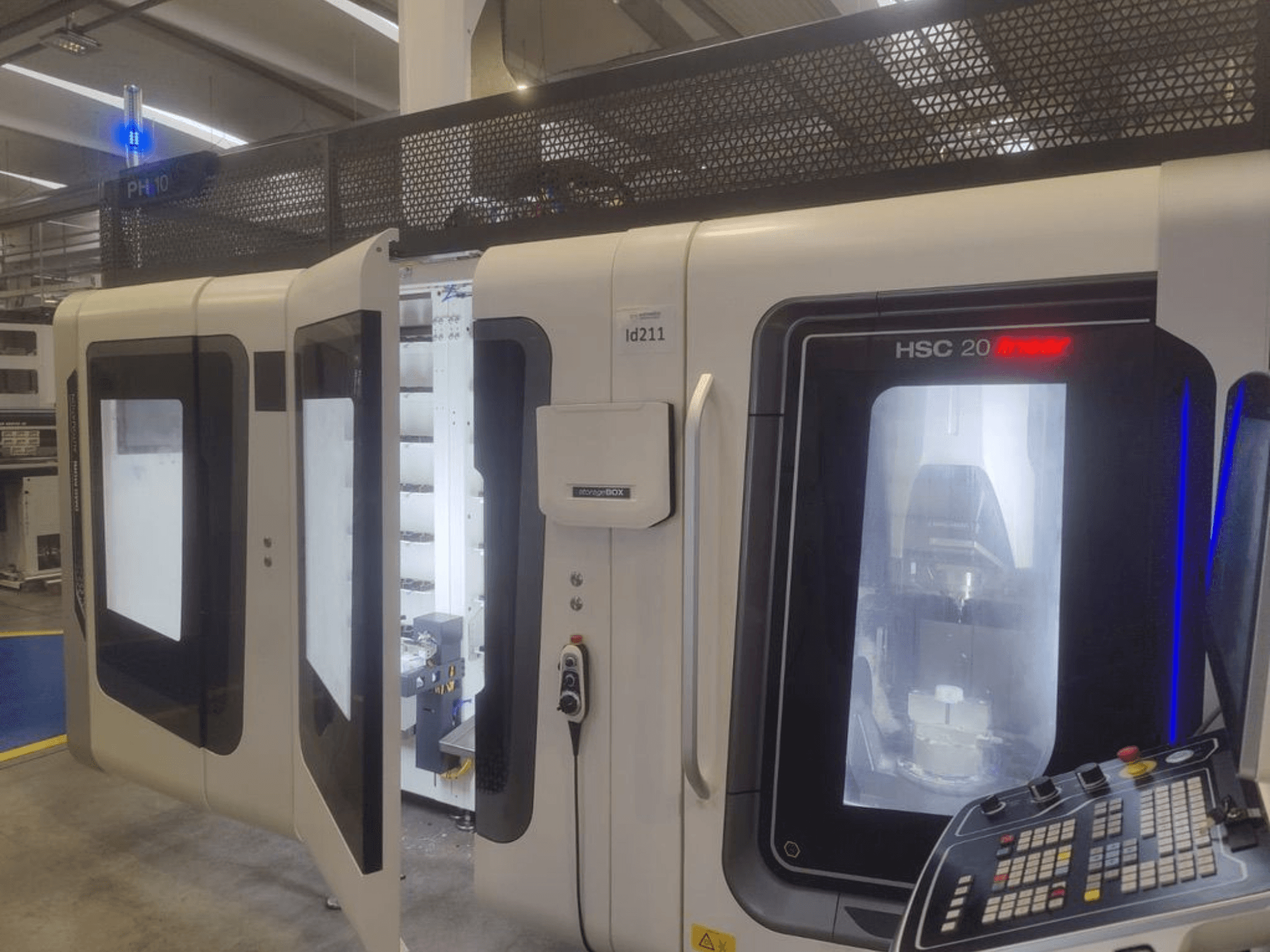

DMG MORI - HSC 20IT-MIL-DMG-2019-00001

• Fixed table with T-slots

• Clamping surface: 450 × 400 mm

• Spindle interface: HSK-E32

• Spindle torque: 6 Nm (S1 100%), 7.5 Nm (S6 40%)

• Automatic tool changer, pickup system

• Tool magazine capacity: 24 tools (HSK-32) or 22 tools (HSK-40)

• Air blow through spindle axis

• Ethernet interface ready

• CELOS control system with Siemens 840D sl Operate

• 21.5” ERGOline touchscreen control panel

• CAD/CAM connectivity

• Compatible with PPS/ERP systems

• 5-axis precision package

• Integrated tilting rotary table

• A-axis tilt range: -15° to +130°

• C-axis rotary table diameter: Ø250 mm

• C-axis integrated torque motor

• Maximum rotary speed: 50 rpm

• 4-color machine status signal lamp

• Remote diagnostic capability (DMG MORI NETSERVICE)

• IoT connectivity (DMG MORI IoTconnector)

• Remote service monitoring (Service Agent)

• Machine installation and commissioning included

• 3D STEP model for CAD integration

• Permanent lubricated spindle

Additional equipment

• Automatic pallet/part handling automation PH10

• Linear magazine automation system

• Pallet capacity: up to 132 positions (ITS 50) or 66 positions (ITS 115)

• Maximum workpiece height (automation): 260 mm

• Machine transport lifting device

• Machine packaged for truck transport
