DMG MORI - Lasertec 65 3DDE-MIL-DMG-2016-00004

Name: DMG MORI Lasertec 65 3D
Brand: DMG MORI
SKU: DE-MIL-DMG-2016-00004
Price: 275000 EUR
Availability: InStock

275,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI Lasertec 65 3D Sale | gindumac.com

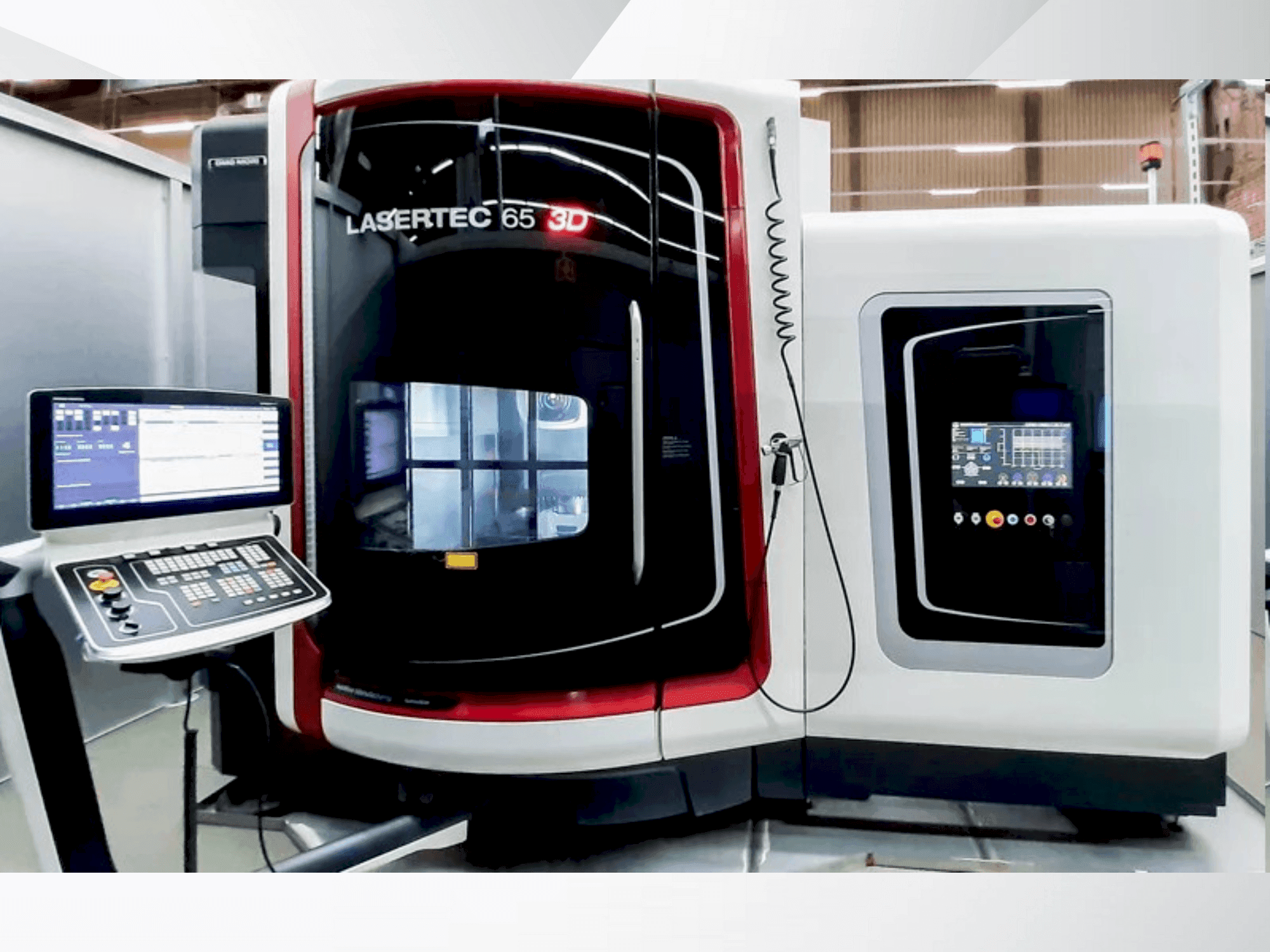

This 5-axis DMG MORI Lasertec 65 3D universal machining centre was manufactured in 2016. It features a motorized spindle with a speed of 1,000 rpm, a HSK-A 63 tool holder, and a 30-position kettle magazine. The NC swivelling rotary table supports milling and turning with a permissible load of 600 kg. Additional features include a link belt chip conveyor with a 600-liter coolant system and an external coolant supply. For more information about this universal machining centre, please reach out to us.

Overview

brand: DMG MORI
year: 2016
MODEL: Lasertec 65 3D
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI Lasertec 65 3D

Control Unit

Control Brand: SIEMENS
Control Model: 840D sl FD Operate

Movement

Number of Axes: 5
X-axis Travel: 735 mm
Y-axis Travel: 650 mm
Z-axis Travel: 560 mm

Technical Specification

Spindle Speed: 1000 RPM
Through-spindle Coolant: Yes

Additional Information

Additional equipment

2 X laser safety windows (double window)
CELOS® with Siemens 840D sl FD Operate including 21.5 ERGOline® Control
Paper belt filter
Energy measuring device for CELOS
the laser hours are 3017h switch-on hours of the unit and 401h productive hours, i.e. laser on.
Machine has 12,829h switch-on hours and 6,469h productive hours, program run.

Machine Benefits

Qualitative Machine Benefits

Chip flushing in work area door
Flushing gun with pump
Oil and emulsion mist separator
Blast air through spindle centre
3d path control
Nc swivelling rotary table: milling & turning
Infrared measuring probe: renishaw pp60 optical (omp 60)
Combined tool measurement in the work area: blum laser 3d quickset
Electronic handwheel
Deckel maho mdynamic package

Technical Machine Benefits

Cooling pressure: 40 bar
Kettle magazine: 30 magazine positions hsk-a 63
Chip tray with integrated coolant tank: 5001
Table top c-axis: d 680 mm
C-axis speed: 1000 rpm
Permissible load: 600 kg
Link belt chip conveyor with coolant system: 600 litres
Discharge height: 950 mm
Width: 670 mm
External coolant supply: 4 bar / 40 l/min

Extra Information

Machine still under power / OEV was 1,1 Million Euro / 1,1 Millionen Neupreis - / Machine was technically retrofitted to state of the art 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
