➤ Used DMG MORI M2 For Sale | gindumac.com

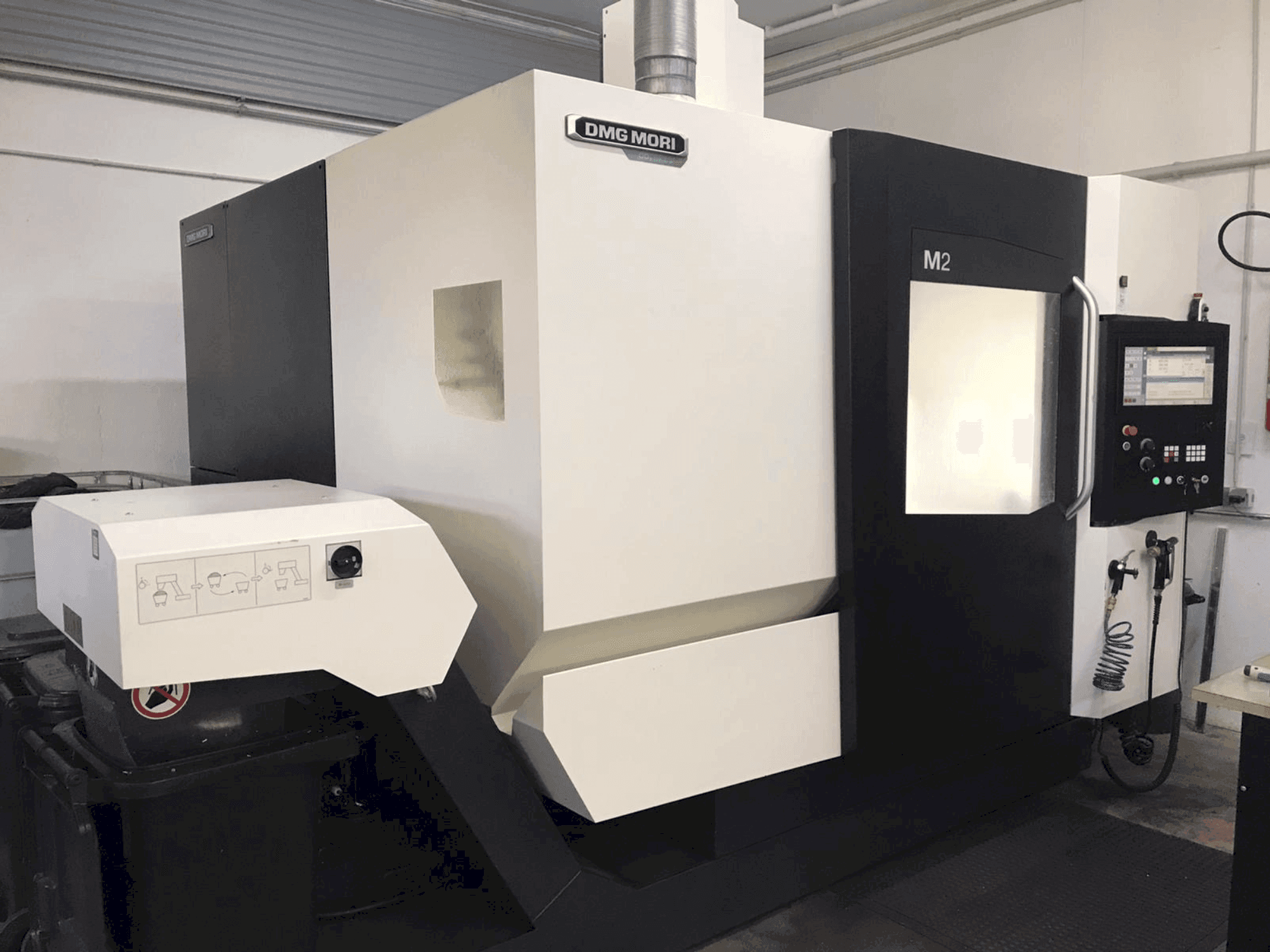

This 4-axis DMG MORI M2 vertical machining center was manufactured in 2023. It features a spindle speed range of 20 to 12,000 rpm, a tool magazine for 24 tools, and a chip conveyor. The machine offers a travel path of X/Y/Z - 1100/550/510 mm and a table size of 1400 x 600 mm. If you are looking to get high-quality milling capabilities, consider the DMG MORI M2 machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2023
MODEL: M2
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG MORI M2

General Data

Measurements width: 2740 mm
Measurements depth: 3605 mm
Measurements height: 2855 mm
Machine weight: 6950 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik one

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 9 kW
Number of axis: 4

Movement

X-AXIS Movement: 1100 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 550 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 24 m/min

Table

Table load: 1700 kg

Tools

Type of tool holder: SK40 DIN 69871

Additional Equipment

- Chip Conveyor in Scraper Belt Design
- Coolant Spray Gun
- Internal Coolant Supply 20 Bar
- Bed Flushing via M-function

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Software option: dxf import
- - Dmg mori iot connector and net service
- - Siemens sinumerik job shop package
- - Drive type: inline spindle
- - Spindle torque: 83 nm (40% dc) / 57 nm (100% dc)
- - Table clamping area: 1400 x 600 mm
- - Tool magazine: 24 tools with double gripper
- - Tool clamping according to din 69872
- - Renishaw touch probe kit
- - Tool change time: average chip-to-chip time 2. 4 s

Extra information

- Machine History Manual chuck (three-jaw) diameter 160 mm for NC Rotary Table Manual tailstock for NC rotary table (stroke: 40 mm) Mechanical preparation for oil mist separator (diameter: 150 mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
