➤ Used DMG Ultra Sonic 20 linear For Sale | gindumac.com

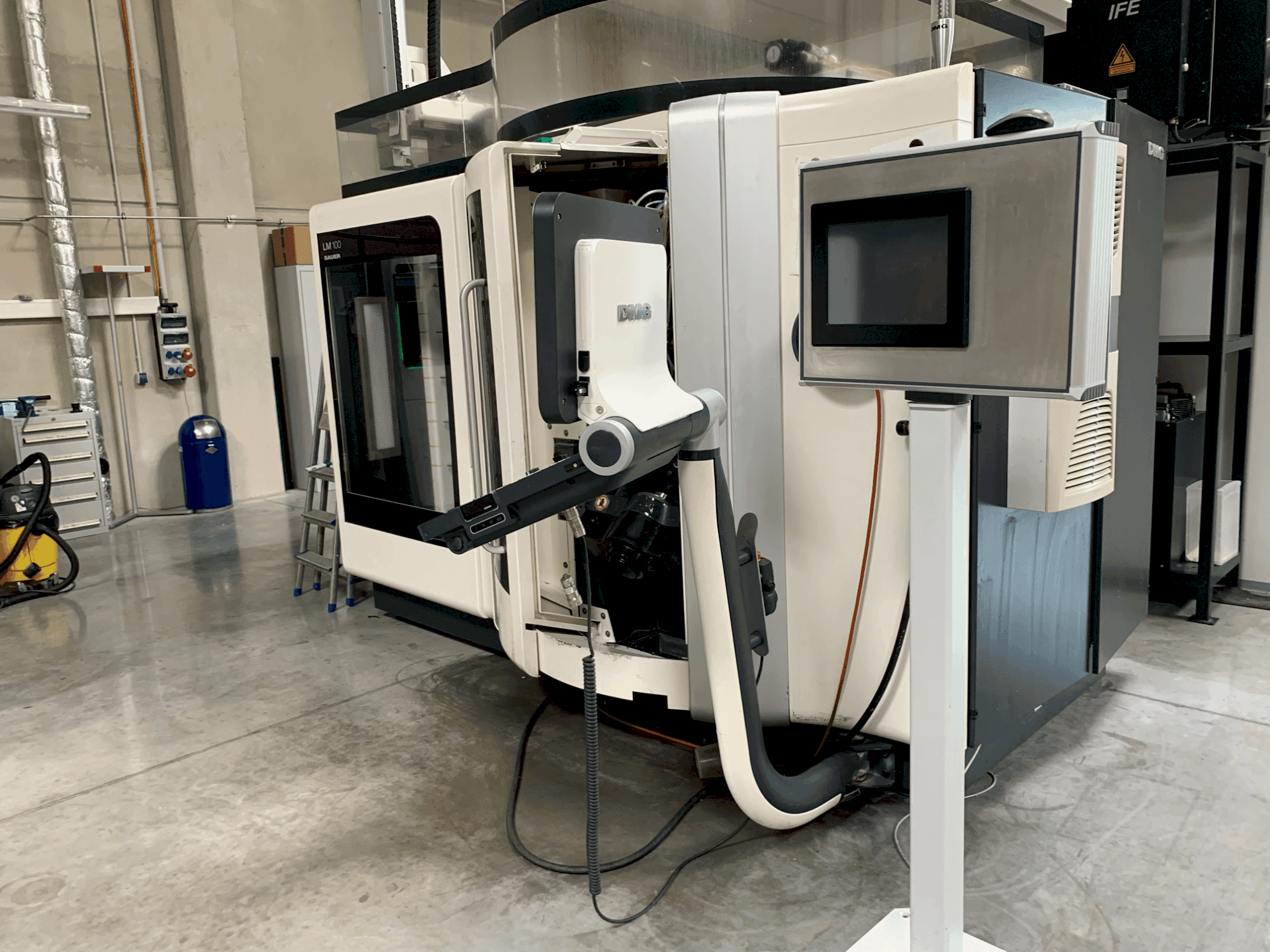

This 5-axis DMG Ultra Sonic 20 linear was manufactured in 2010, featuring a Siemens Sinumerik 840D control system and a robust 60-fold tool magazine. It includes a swiveling range of -10° to 130° and a rotary table diameter of 200mm. Ideal for intricate universal machining tasks, if you are looking to get high-quality machining capabilities consider the DMG Ultra Sonic 20 linear machine we have for sale. Contact us for more information about this machine.

Overview

brand: DMG
year: 2010
MODEL: Ultra Sonic 20 linear
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG Ultra Sonic 20 linear

Control Unit

Brand: SIEMENS
Model: sinumerik 840D

Main drive

Tool taper: HSK 32
Number of axis: 5

Movement

X-AXIS Movement: 200 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 280 mm

Tools

Max tool diameter: 30 mm
Max tool length: 200 mm

Additional Equipment

- EROWA ITS 100 Quick Clamping System
- Electronic Handwheel
- Oil and Emulsion Mist Separator
- Renishaw Laser System NC-4 III
- DMG PowerProbe 400 Infrared Measuring Probe
- Cooling Unit for Control Cabinet
- 3D QuickSET
- Clamping Pallet for Glass Ceramic Block Material // Clamping Pallet/Tray Holder for Dental Blanks with Diameter of 98-98.5 mm
- Matrix Thickness: 1-24 mm
- Collar Height: 10 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max speed hsk e32: 42000 rpm // max speed hsk s32: 40000 rpm
- - Torque max: 6 nm
- - Max workpiece height adjustable to: 250 mm
- - C-axis rotary table diameter: 200 mm // rotation range: 0 to 360°
- - Fixed table with t-slots
- - 24 magazine positions for hsk32 // 22 magazine positions for hsk40
- - 60-fold tool magazine
- - Automatic tool changer with chain magazine
- - Omron software defective, needs to be controlled over normal siemens control unit
- - Internal cooling switched off

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
