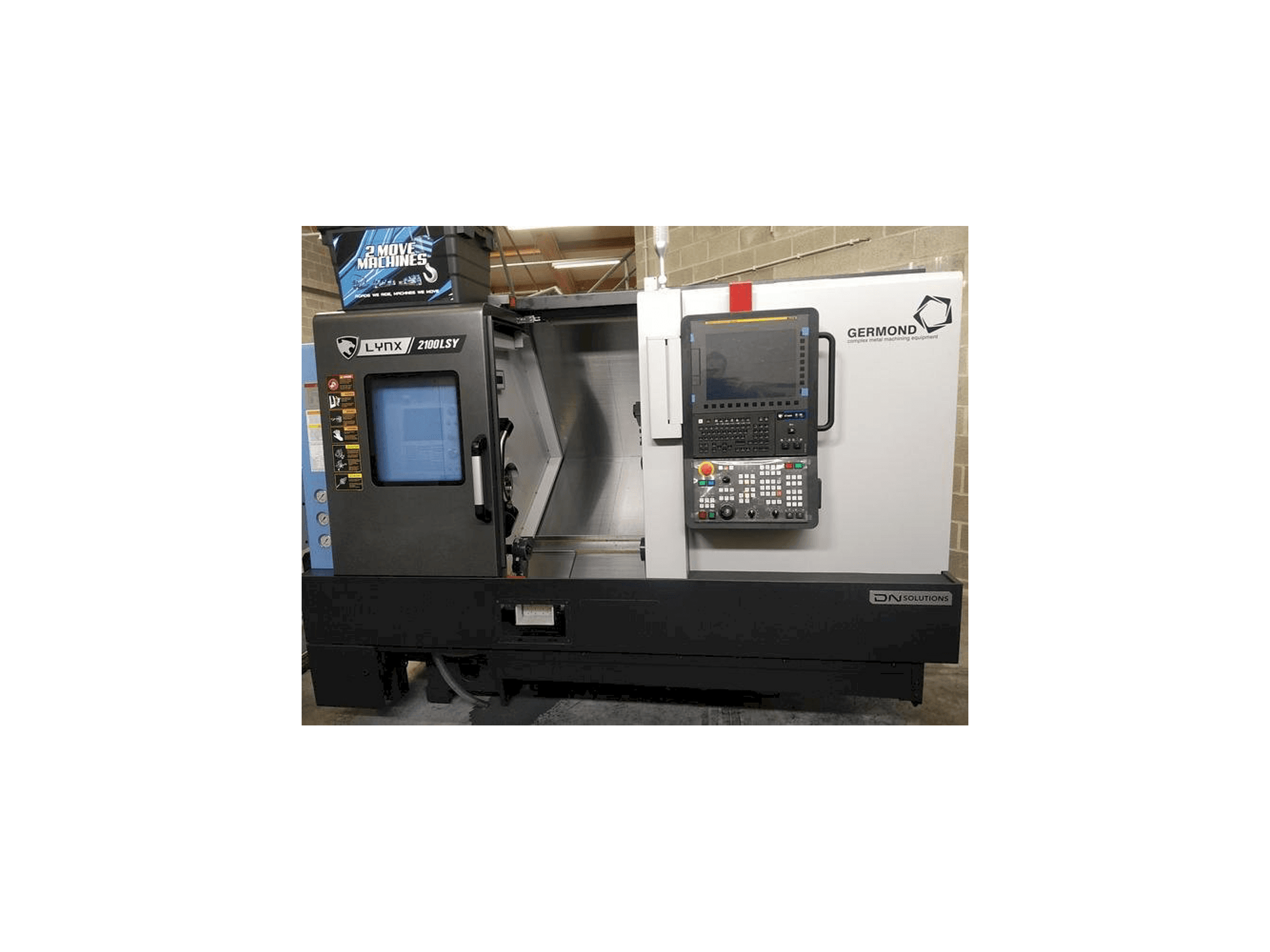

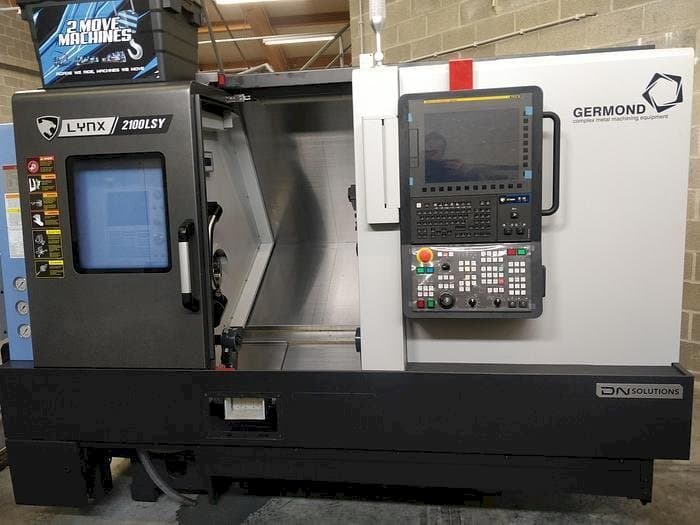

Front view of DN SOLUTIONS LYNX 2100 LSYB  machine

DN SOLUTIONS LYNX 2100 LSYB

DN SOLUTIONS - LYNX 2100 LSYB

2022

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DN SOLUTIONS LYNX 2100 LSYB Lathe was built in the year 2022 in Korea. It is equipped with a Fanuc iSeries control unit. The machine has a main spindle speed of 4500 rpm and a sub-spindle speed of 6000 rpm.

Overview

  • brand: DN SOLUTIONS
  • year: 2022
  • MODEL: LYNX 2100 LSYB
  • application type: Turning
  • Location: Belgium
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Fanuc
  • GINDUMAC ID: BE-TUR-DN -2022-00001

Technical Information

General Data

  • Measurements width: 1701 mm
  • Measurements depth: 2870 mm
  • Measurements height: 1930 mm
  • Machine weight: 4200 kg

Control Unit

  • Brand: Fanuc
  • Model: iSeries

Main drive

  • Spindle speed range: 4500 1/MIN
  • Spindle motor power: 15 kw
  • Spindle bore: 76 mm

Movement

  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Rapid traverse: 394 ipm
  • Z-AXIS Rapid traverse: 36 m/min

Tools

  • Number of stations: 12
  • Type of tool holder: BMT-45

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle torque: 169 nm
      • - Spin axis contour torque 169nm
      • - Sub spindle: 6000 rpm, 5. 5 kw power
      • - Guideway type: linear
      • - Swing over bed: 600 mm
      • - Bar capacity: 67 mm
      • - Max turn diameter: 300 mm
      • - Max turn length: 510 mm
      • - Main spindle max chuck: 254 mm
      • - Main spindle std chuck: 203. 2 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
