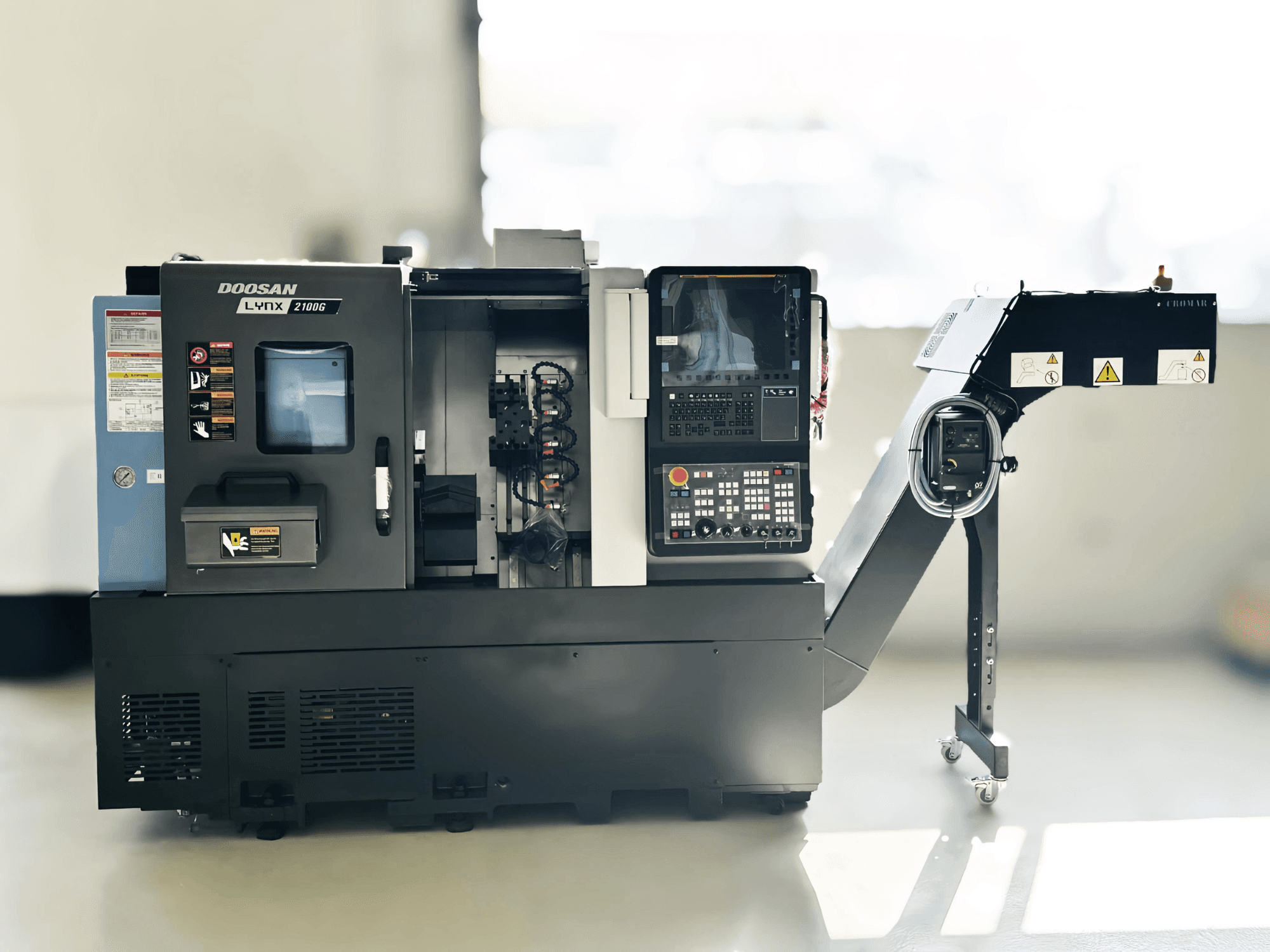

This 4-axis DN SOLUTIONS LYNX 2100GA was manufactured in 2021. As new, showroom model. It features a maximum spindle speed of 6,000 RPM and a bar capacity of 45 mm. The machine is designed for high-performance compact turning, optimized for small precision parts. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS LYNX 2100GA horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2021
- MODEL: LYNX 2100GA
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DN SOLUTIONS LYNX 2100GA
Control Unit
- Control Brand: FANUC
- Control Model: 0i-F
Dimensions
- Machine Height: 1935 mm
- Machine Length: 2090 mm
- Machine Width: 1400 mm
Movement
- Number of Axes: 4
- X-axis Travel: 450 mm
- Y-axis Travel: 30 mm
Technical Specification
- Counter Spindle: No
- Max. Bar Diameter: 45 mm
- Spindle Power: 18.5 kW
- Spindle Speed: 6000 RPM
Additional Information
As new, showroom model
Axis count: 4 (X, Y, Z, C)
X-axis travel: 450 mm (radial tool movement)
Z-axis travel: 340 mm (longitudinal part travel)
Y-axis travel: 30 / 36 mm (vertical travel for off-center milling/drilling)
C-axis: Spindle rotational positioning and contouring
Chuck size: 6"
Bar capacity: 45 mm
Turret stations: Up to 12
Guideway type: Linear guideway
Cooling system: Coolant pump 7 bar
Tooling: Tool slide for secondary operations
Design: High-performance compact center optimized for small precision parts
Performance: Fast turret indexing and high-rigidity linear guide system
Additional equipment
Chip conveyor
Oil skimmer
Parts catcher with box
Parts ejector
Bar feeder interface
Optional: Chip conveyor (hinge belt conveyor). Price on Request
Machine is supplied with a standard basic package: turret fully equipped, base holder included.
Optional:
1 pc. External Turning Tool Holder Single
1 pc. External Turning Tool Holder Double
2 pcs. Internal Turning Tool Holders
1 pc. Internal Turning Tool Holder Cover
1 pc. Reducing Sleeve Set
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
