DN SOLUTIONS - LYNX 2100MBDE-TUR-DNS-2022-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DN SOLUTIONS LYNX 2100MB For Sale | gindumac.com

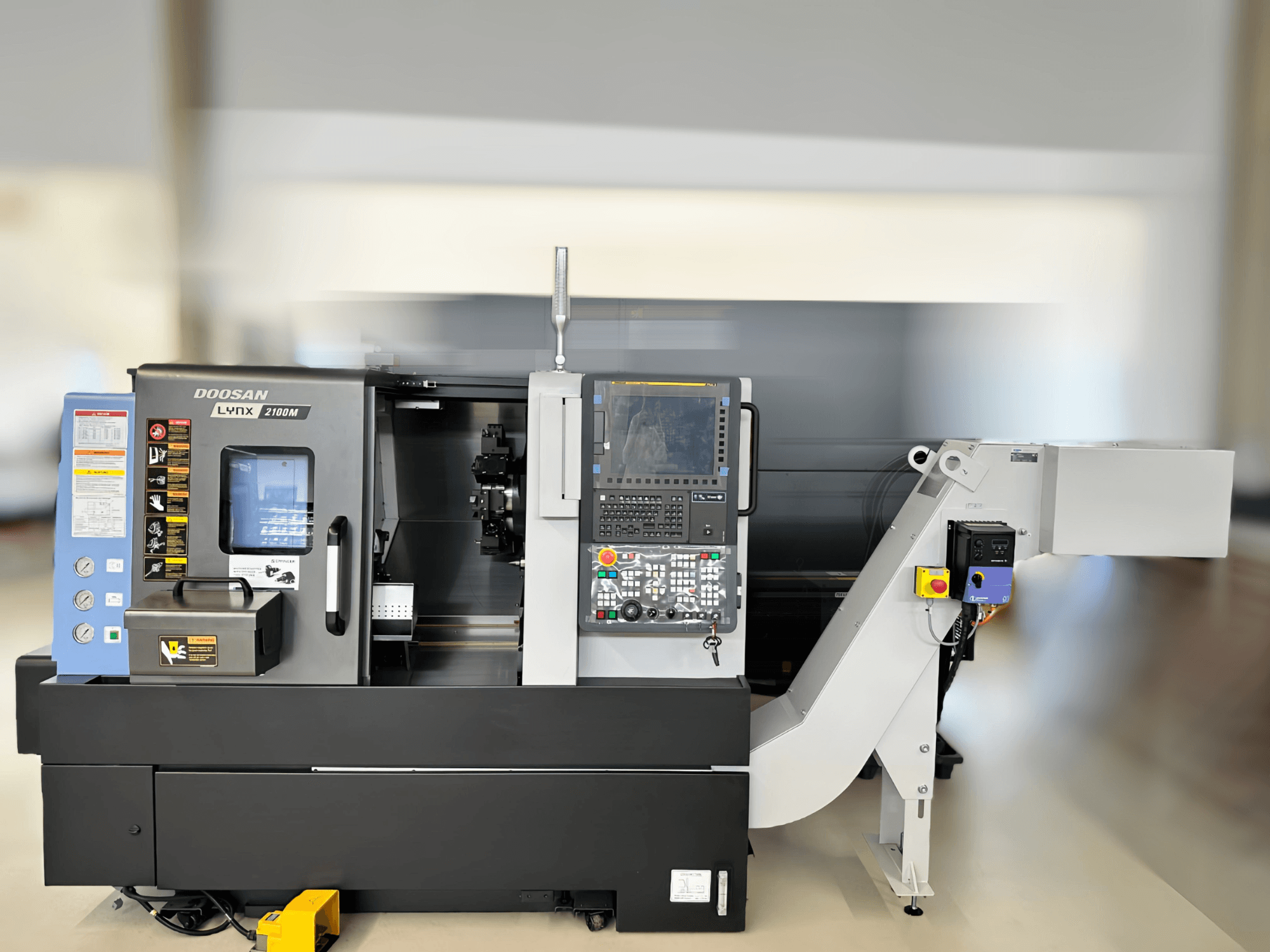

This 4-axis DN SOLUTIONS LYNX 2100MB was manufactured in 2022. It features a maximum spindle speed of 4,500 RPM and a chuck size of 8" (204 mm). The machine is equipped with a tool turret with 12 stations and a bar capacity of 65 mm. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS LYNX 2100MB horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2022
- MODEL: LYNX 2100MB
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DN SOLUTIONS LYNX 2100MB
Control Unit
- Control Brand: FANUC
- Control Model: 0i-F Plus
Dimensions
- Machine Height: 1693 mm
- Machine Length: 2350 mm
- Machine Width: 1595 mm
Movement
- Number of Axes: 4
- X-axis Travel: 205 mm
- Y-axis Travel: 30 mm
- Z-axis Travel: 340 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 15 kW
- Spindle Speed: 4500 RPM
Additional Information
Chuck size: 8" (204)
Bar capacity: 65 mm
Y travel: 30 / 36 mm
Turret stations: 12
Turret interface: BMT 45
Guideway type: Linear guideway
Cooling system: Coolant pump 7 bar
Design: High-performance compact turning center with a space-saving design
Productivity: Fast idle times; tool turret with BMT interface
Application: Suited for producing small parts with high precision
Additional equipment
Bar feeder interface
Chip conveyor
Parts catcher
Tool setter (electric)
Oil skimmer
3-color signal light
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
