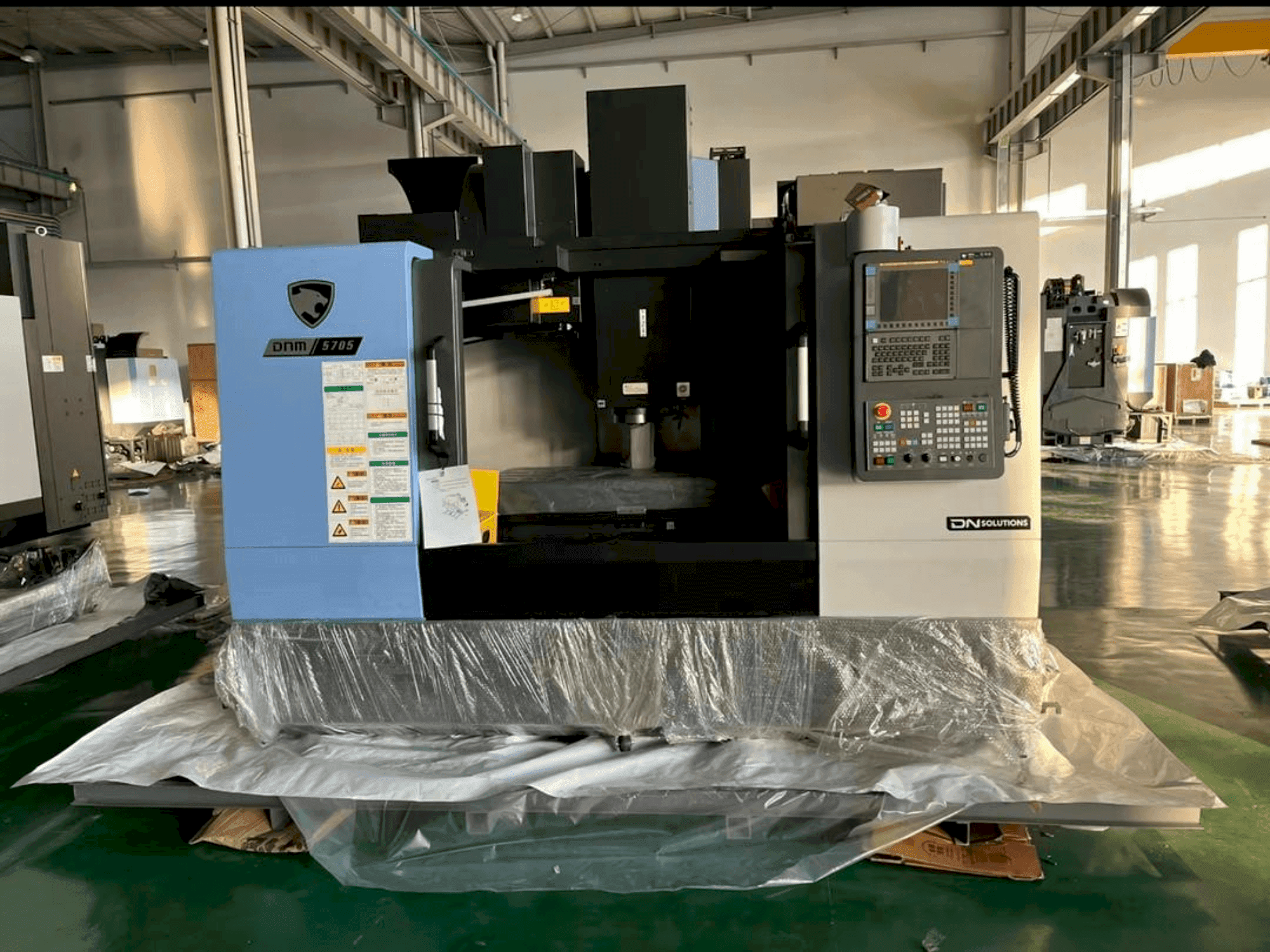

Front view of DOOSAN Dnm 5705  machine

DOOSAN - DNM 5705SI-MIL-DOO-2024-00002

91,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis DOOSAN DNM 5705 vertical machining center was manufactured in 2024. It features a robust table size of 1300 x 570 mm with a loading capacity of 1000 kg, and a high spindle speed range of 8,000 to 12,000 rpm. Equipped with a BT40 tool shank type and a rapid traverse rate of 36/36/30 m/min for X/Y/Z axes, it ensures efficient machining. Ideal for precision tasks, buy this DOOSAN DNM 5705 vertical machining center. Contact us for further details regarding this machine.

Overview

  • brand: DOOSAN
  • year: 2024
  • MODEL: DNM 5705
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - DOOSAN DNM 5705

General Data

  • Measurements width: 2413 mm
  • Measurements depth: 3110 mm
  • Measurements height: 2985 mm
  • Machine weight: 6500 kg

Control Unit

  • Model: OiPLUS
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 8000 - 12000 rpm 1/MIN
  • Spindle motor power: 11/18.5 kW
  • Tool taper: BT40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1050 mm
  • Y-AXIS Movement: 570 mm
  • Z-AXIS Movement: 510 mm

    Additional Equipment

    • - Feed motor (X/Y/Z): 1.8/1.8/3 kW
    • - Power supply: 30 kVA
    • - Coolant tank capacity: 380 l

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Tool diameter: ¢80 mm
        • - Max. Tool diameter adjacent to empty space: ¢125 mm
        • - Max. Tool length: 300 mm
        • - Max. Tool weight: 8 kg
        • - Tool change time (tool-to-tool): 1. 2 s
        • - Tool change time (chip-to-chip): 3. 2 s
        • - High precision and fast tool changes
      • Qualitative Machine Benefits:
        • - Robust control with fanuc oiplus

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
