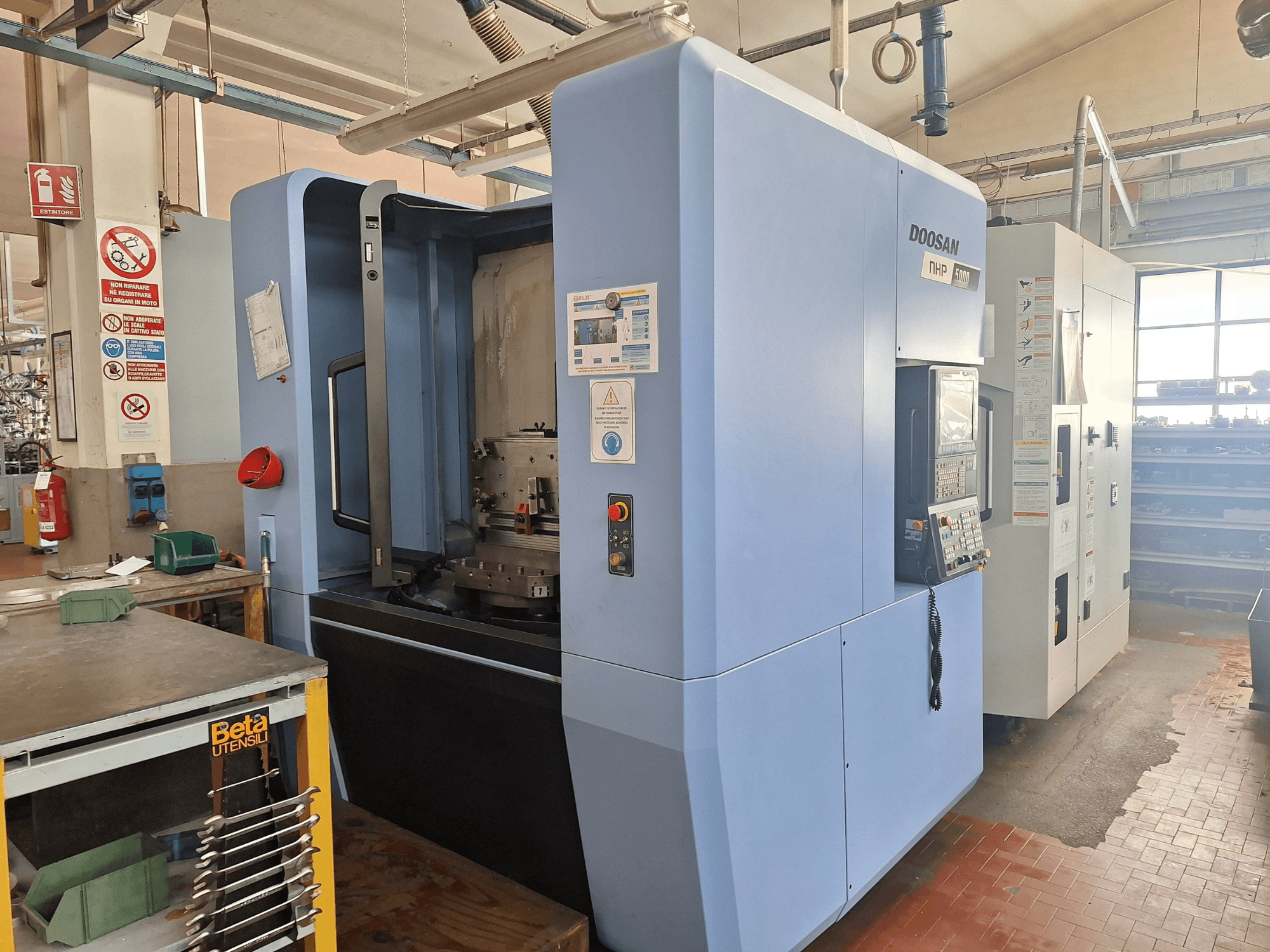

DOOSAN - NHP 5000IT-MIL-DOO-2019-00003

Rapid traverses

• X/Y/Z: 60 m/min

Cutting feedrate: 1–30,000 mm/min

Ballscrews: Ø45 x P20

Accuracy

• Positioning: ±0.003 mm (full stroke)

• Repeatability: ±0.0015 mm

Measurement system

• X/Y/Z/B: absolute pulse encoders

• Optional linear guides on X, Y, Z

Distances

• Spindle nose to table center: 100–980 mm

• Spindle center to pallet surface: 80–810 mm

Spindle

• Speed:

  • Standard/high-torque: 15,000 rpm

  • High‑speed option: 20,000 rpm

• Base speed:

  • Standard: 1,200 rpm

  • High‑speed option: 1,800 rpm

• Motor power:

  • Standard: 30 / 22 / 18.5 kW

  • High torque option: 37 / 26 / 22 kW

  • High‑speed option: 37 / 30 / 26 / 18.5 kW

• Max. torque:

  • Standard: 229.9 / 206.9 / 147.2 / 119.4 Nm

  • High torque: 303 / 261 / 204 / 147 / 119 Nm

  • High‑speed option: 221 / 200 / 156 / 98.1 / 79.6 Nm

• Tool clamping force: 9.8 kN (15.7 kN with HSK spindle)

• Transmission: Integrated drive

Axis motors

• X: 5.5 kW (7.37 hp)

• Y: 4.5 kW (6.03 hp)

• Z: 5.5 kW (7.37 hp)

• B indexing motor: 1.4 kW (1.88 hp)

• B 0.001° motorized: 2.7 kW (3.62 hp)

B axis / rotary table

• Indexing: 1° indexing; 0.001° rotary table

• Positioning accuracy: ±3" (±6" for rotary table)

• Repeatability: ±1" (±4" for rotary table)

• Max rapid rotation: 30 rpm

• Clamping force: 93 kN

• Clamping torque: 4327 Nm

Pallet

• Size: 500 x 500 mm

• Type: Threaded pallet; T‑slot pallet

• Pattern: 24‑M16 x P2.0; 5‑18H8

Machine travels reference

• X/Y: 28.74"

• Z: 34.65"
