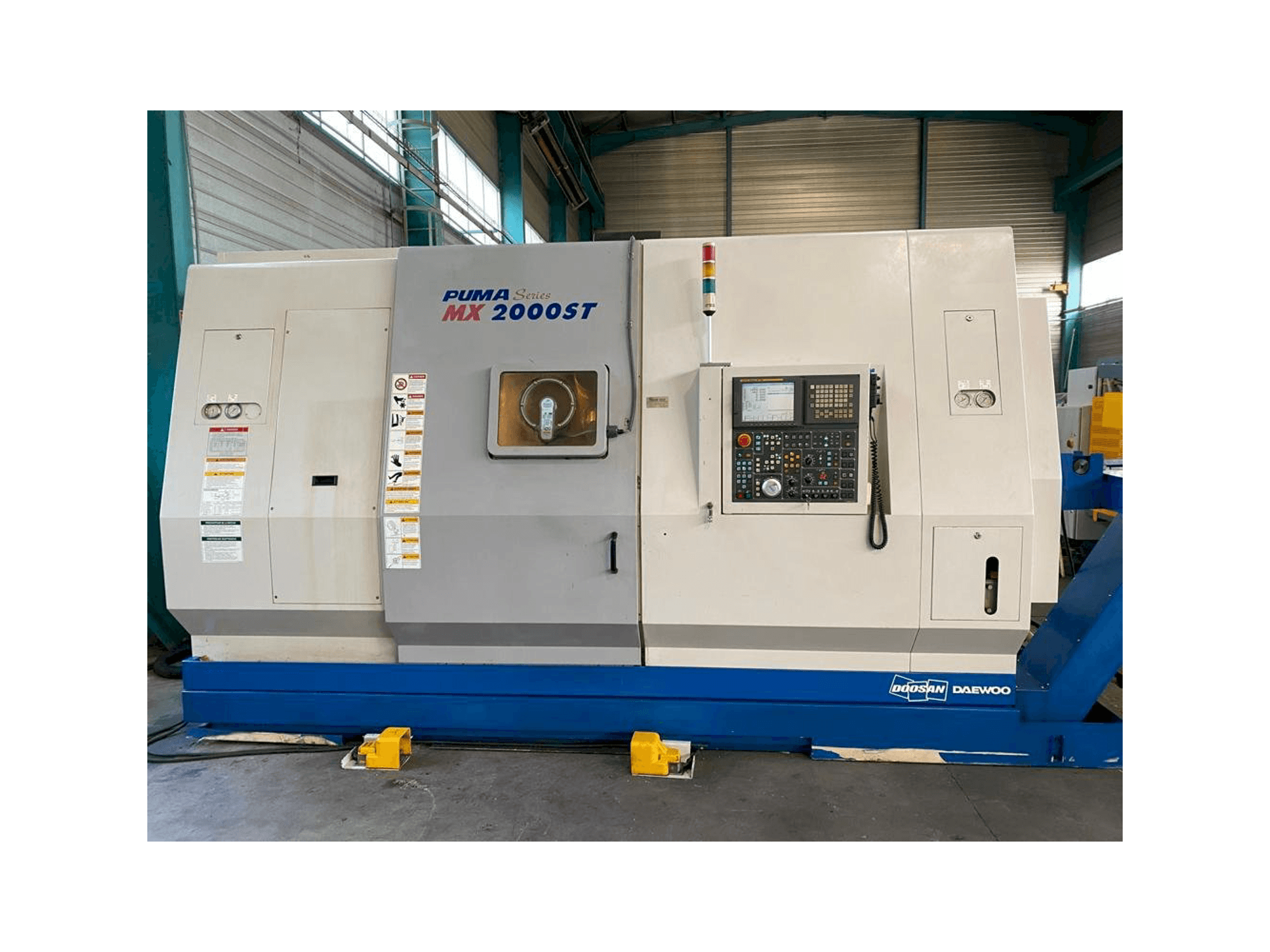

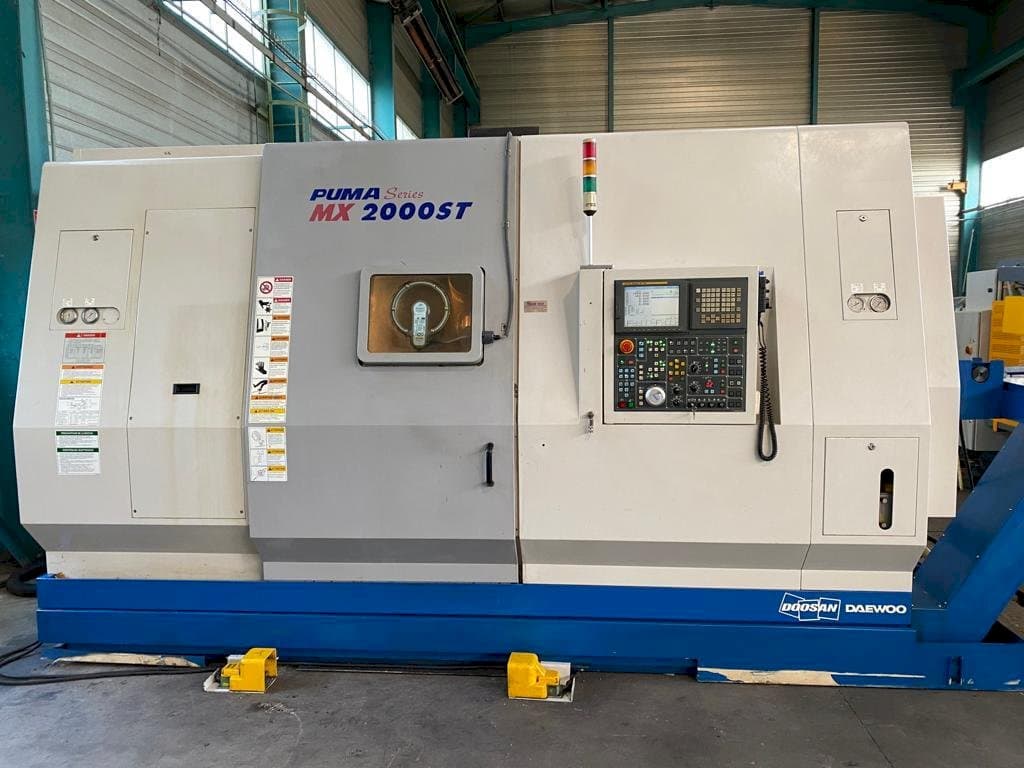

Front view of Doosan PUMA MX 2000 ST machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA MX 2000 ST

Photo Gallery

DOOSAN - PUMA MX 2000 STFR-TUR-DOO-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan PUMA MX 2000 ST

This Doosan MX 2000 ST twin spindle MILL TURNING CENTER was put into commissioning in 2007. It has a record of 19500 working hours. It is operated through a FANUC Series 18i-TB control unit. This 9 axis machine works with a milling rotation speed up to 10000 rpm, and a spindle and counter spindle Rotation speed up to 5000 rpm. It includes several equipment as measuring arm tools and a part recuperator with a side evacuation belt. This machine comes with its complete documentation.

Overview

brand: DOOSAN
year: 2007
MODEL: PUMA MX 2000 ST
production hours: 19500
application type: Turning
Location: France
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN PUMA MX 2000 ST

Control Unit

Control Brand: FANUC
Control Model: Series 18I-TB

Dimensions

Machine Depth: 2500 mm
Machine Height: 2600 mm
Machine Weight: 12300 kg

Movement

Number of Axes: 9
Y-axis Travel: 80 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 10000 RPM

Additional Information

Additional equipment

High pressure watering
Measuring arm tools
Part recuperator with side evacuation belt
Set of tool holders for milling spindle Tool holder set for turret

Machine Benefits

Qualitative Machine Benefits

Turret: 12 positions; milling rotation speed 4000 rpm
Year of commissioning 2007 first hand
Complete documentation

Technical Machine Benefits

9 controlled axes x1x2-y1y2-a-b-c1 / c2-y
Ø admitted above the bench 750 mm
Ø admitted above the carriage 600 mm
Max turning Ø 550 mm
Turning Ø without interference 210 mm
Bar turning Ø 65 mm
Maximum turning length 1020 mm
Spindle & counter-spindle: 2 mandrels ø 210 mm; spindle nose a2-6 ‘'; spindle bore 66 mm
Spindle & counter-spindle: rotation speed 5000 rpm; unit power 22 kw; c1 / c2 axes 360000 ° (continuous rotation)
Milling spindle: tool changer 40 stations with gripper arm; tool change time 1, (second) b axis 360 ° 30 °; increment (spindle tilt)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
