DOOSAN Puma ST32G

Photo Gallery

SOLD

DOOSAN - Puma ST32G

2013

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

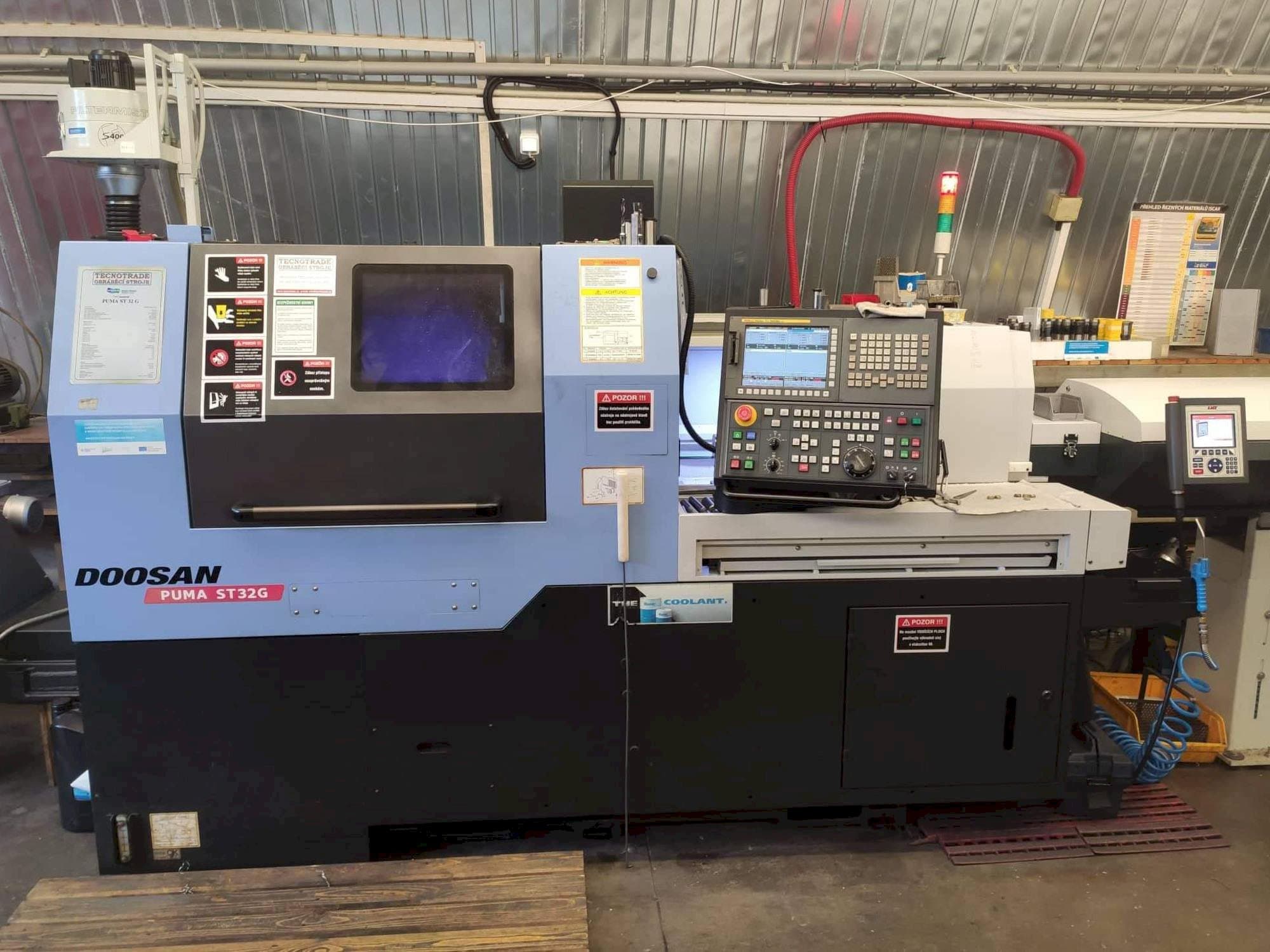

Doosan Puma ST32G Lathe

This Doosan ST32G Lathe was manufactured in the year 2013. It counts with just 1500 working hours. It is equipped with a Fanuc Series 31i-MODEL A control unit. This 7 axis machine counts with 2 spindles, the main spindle can work with a spindle speed up to 8000 rpm, and the sub-spindle can work with a spindle speed of to 6000 rpm. It includes a set of tools, tool holders, and a bar feeder 3000 mm.

Overview

brand: DOOSAN
year: 2013
MODEL: Puma ST32G
production hours: 1500
application type: Turning
Location: Czech Republic
machine type: Lathe
availability: Sold
control unit brand: Fanuc
GINDUMAC ID: CZ-TUR-DOO-2013-00001

Technical Information

General Data

Measurements width: 2630 mm
Measurements depth: 1300 mm
Measurements height: 1800 mm
Machine weight: 3500 kg

Control Unit

Brand: Fanuc
Model: Series 31i- MODEL A

Main drive

Number of spindles: 2
Spindle speed range: 8000 - 6000 1/MIN
Number of axis: 7

Movement

X-AXIS Movement: 114 mm
Y-AXIS Movement: 404 mm
Z-AXIS Movement: 320 mm

Additional Equipment

- Set of tools and tool holders
- Bar feeder 3000 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 7 axis automatic lathe
- - Max. Machining diameter 32 mm
- - Max. Machining length 320 mm
- - Main spindle 8. 000 rpm, 5. 5/7. 5 kw
- - Subspindle 6000 rpm, 2. 2/3. 7 kw
- - C1 & c2 indexation 0,001 deg.
- - Axes x2: 393 mm, z2: 343 mm
- - Servo motor: x1, z1, y, x2, z2: 1. 0 kw
Qualitative Machine Benefits:
- - Very good condition, low hours.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
