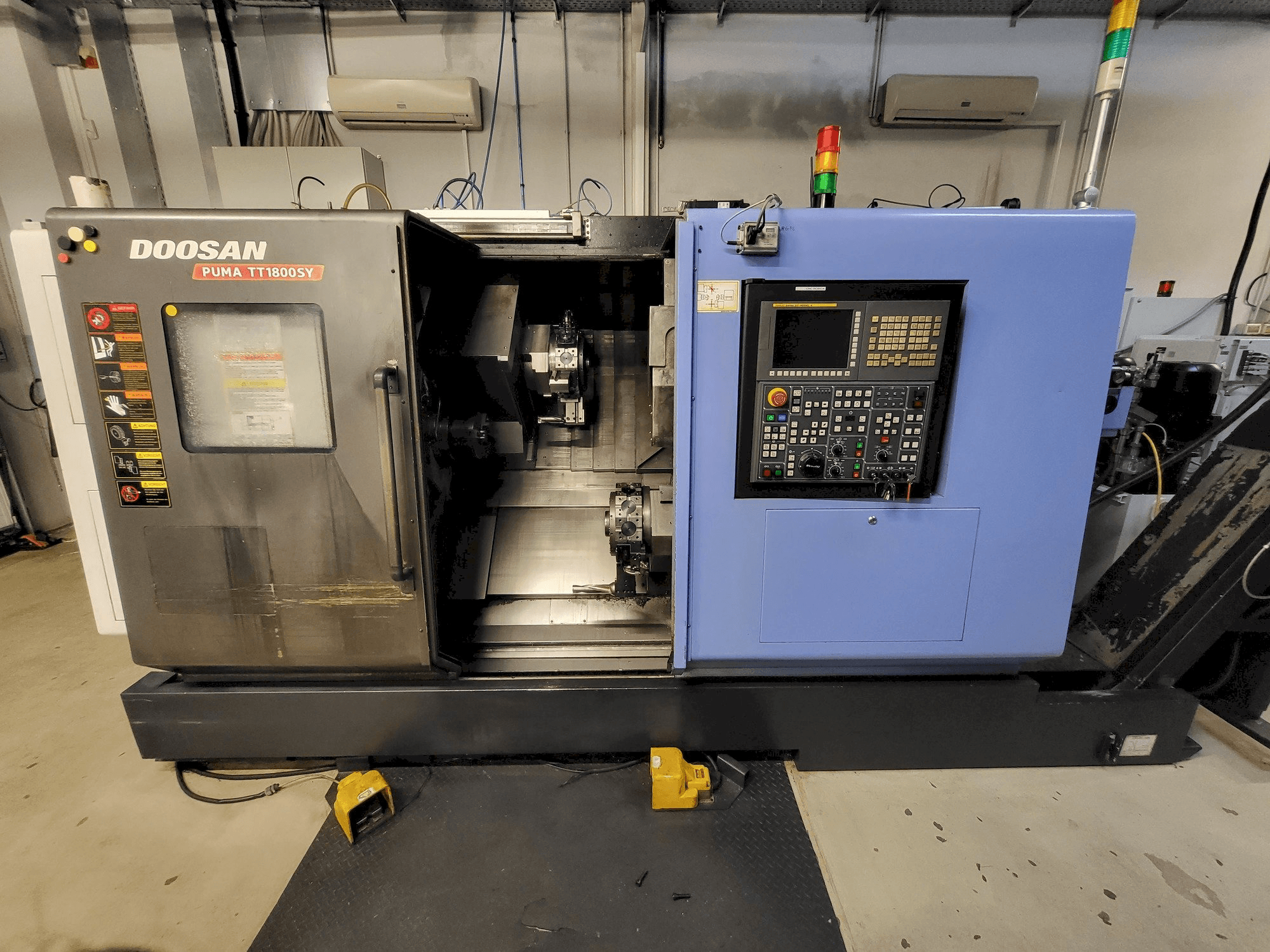

Front view of DOOSAN PUMA TT1800SY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA TT1800SY

Photo Gallery

DOOSAN - PUMA TT1800SYSI-TUR-DOO-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN PUMA TT1800SY - Lathe

This DOOSAN PUMA TT1800SY lathe was made in the year 2011. It is equipped with a FANUC 31i-Model A control unit. The machine has a spindle speed of 5000 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: PUMA TT1800SY
application type: Turning
Location: Slovenia
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN PUMA TT1800SY

General Data

Measurements width: 3905 mm
Measurements depth: 2070 mm
Measurements height: 2080 mm
Machine weight: 9000 kg

Control Unit

Model: 31i-Model A
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 210 mm diameter 3-jaw chuck main spindle
- - 170 mm diameter 3-jaw chuck 2nd spindle
- - Spindle through hole: 76 mm diameter
- - Max. Distance between spindle noses: 980 mm
- - Swing: 230 mm
- - Bar capacity: 65 mm
- - Turret positions: 12 + 12
- - X1 axis: 165 mm, x2 axis: 190 mm
- - Z1 axis: 700 mm, z2 axis: 720 mm
- - Y axis: 100 (± 50) mm, b axis: 770 mm
Qualitative Machine Benefits:
- - Maximum turning diameter: 230 mm
- - Maximum cutting length: 230 mm
- - Milling rpm: 5000rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
