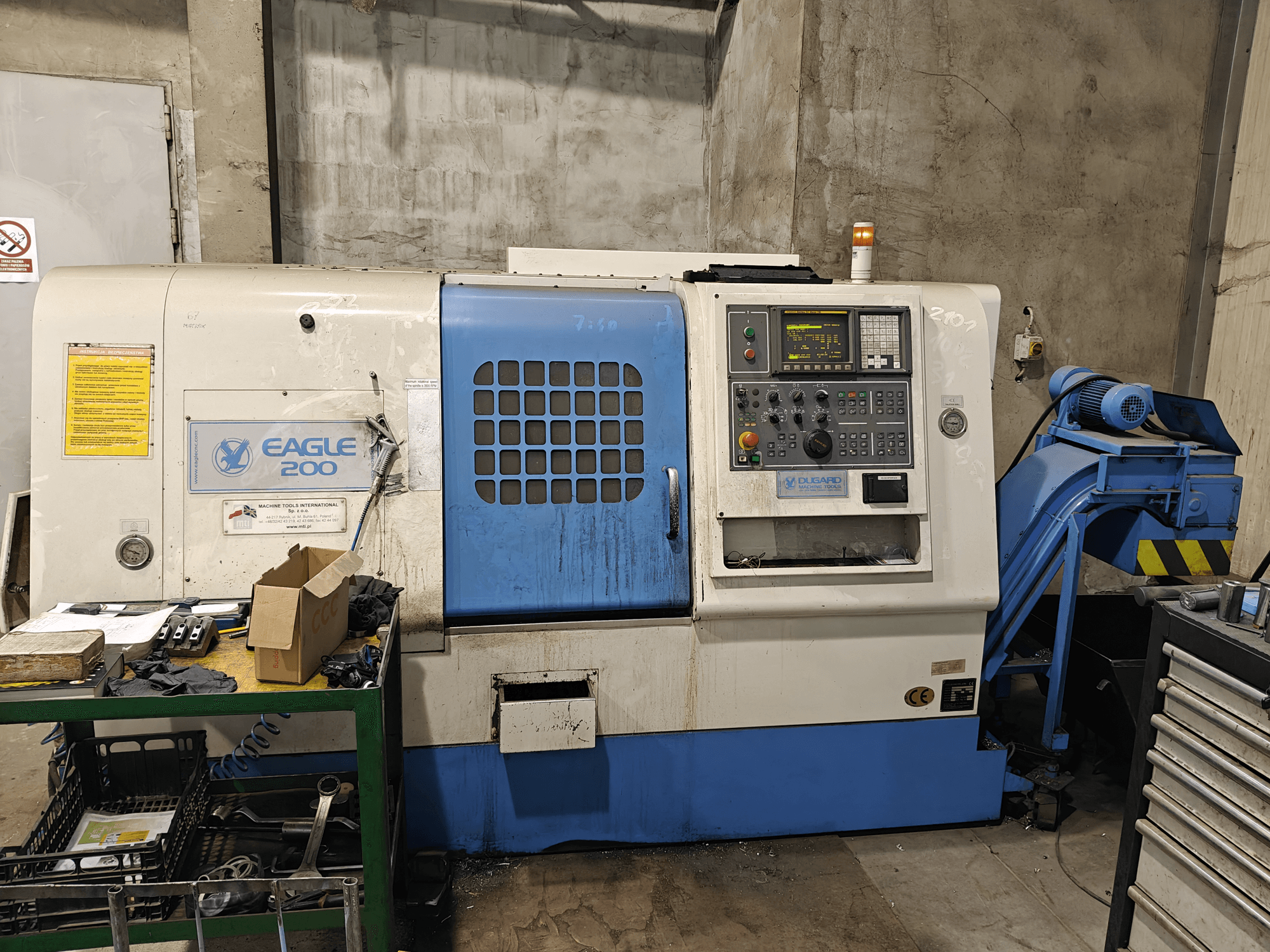

Dugard - EAGLE 200PL-TUR-DUG-2005-00001

Capacity

• Maximum turning diameter: 280 mm

• Maximum turning length: 508 mm

Axis travels and rapids

• Z-axis motor power: 1.4 kW (1.8 HP)

• Z-axis rapid speed: 30 m/min

• X-axis motor power: 1.4 kW (1.8 HP)

• X-axis rapid speed: 30 m/min

Spindle

• Spindle bore: ø62 mm

• Bar capacity: ø52 mm

• Spindle nose/taper: ASA A2-6

• Taper angle (conicity): 1/20

Tooling/Turret

• Turret type: Hydraulically clamped

• Maximum number of tools: 10

• Boring tool diameter / number of slots: ø32 mm / 5

• Turning tool shank size / number of slots: 20 mm × 20 mm / 5

Tailstock

• Tailstock type: Fixed

• Tailstock taper: MK4

• Sleeve diameter: ø75 mm

• Sleeve travel: 425 mm (note: also listed as 100 mm below, as provided)

• Tailstock sleeve travel: 100 mm (as provided)

Dimensions and weight

• Bed height to spindle center: 900 mm

• Bed-to-spindle-center distance: 290 mm

• Footprint: 3429 mm × 2569 mm

A large set of accessories and equipment is included
