DYE FPF-2-C-NC Milling machine

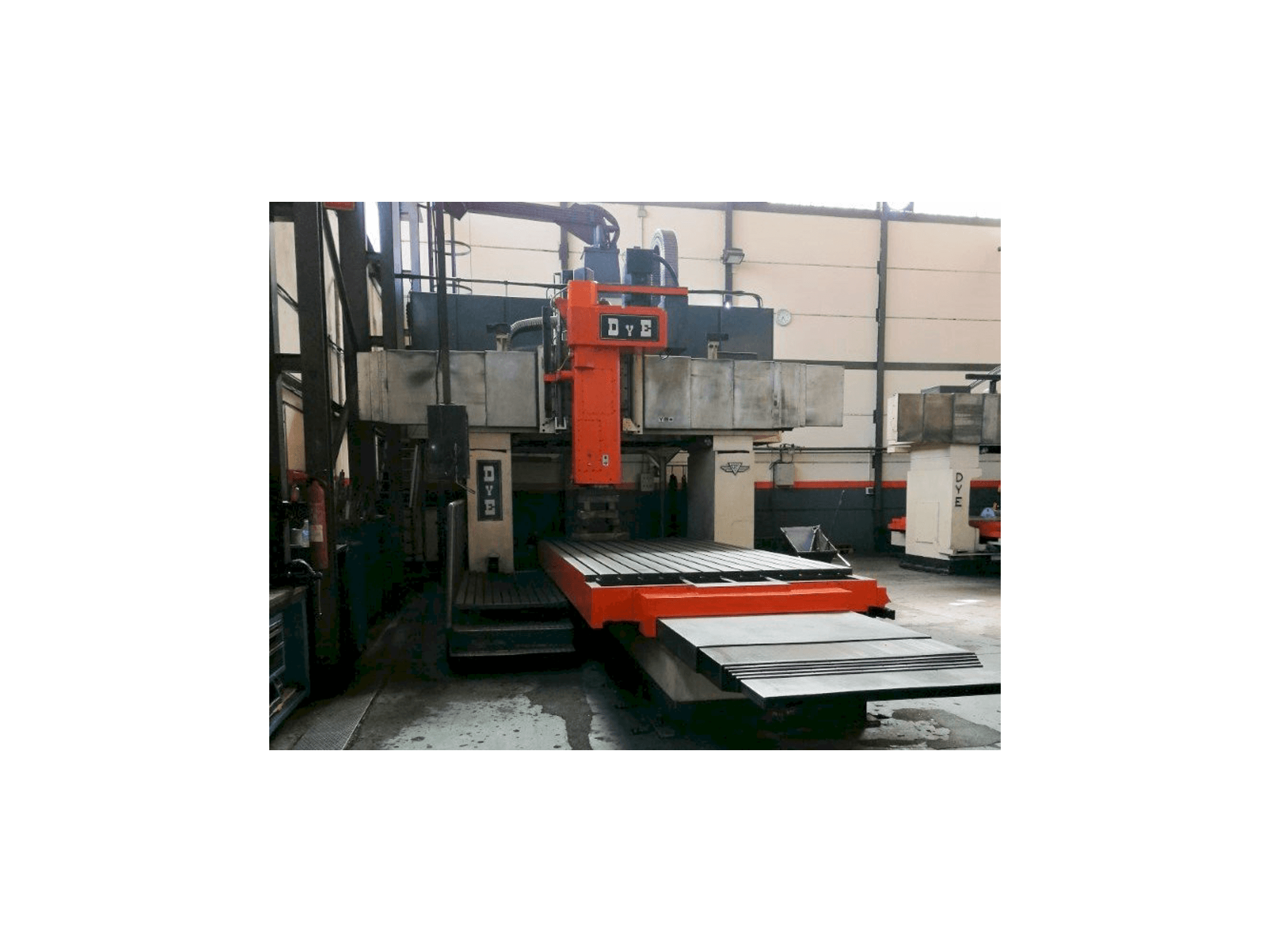

This DYE FPF-2-C-NC Milling machine was built in 1986 and has been retrofitted in 1998. It operated through a Heidenhain TNC-155 control unit. This 3 axis machine has a spindle speed up to 2000 rpm, a table dimension of 4500 x 2000 mm and a double chip conveyor. Always good maintenance.

Overview

brand: DYE
year: 1986
MODEL: FPF-2-C-NC
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - DYE FPF-2-C-NC

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC-155

Dimensions

Machine Depth: 5300 mm
Machine Height: 5600 mm
Machine Weight: 44000 kg
Table Length: 4500 mm
Table Width: 2000 mm

Movement

X-axis Travel: 4500 mm
Y-axis Travel: 3000 mm
Z-axis Travel: 1000 mm

Technical Specification

Spindle Speed: 2000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Control unit from year 2011, updated in 2015
Retrofiting in the year 1998
Always good maintenance

Technical Machine Benefits

Distance between columns: 2650 mm
Max. Milling width: 2600 mm
Heidenhain lb-325 optical rulers, with ruler pitch of 100 μm
Double chip conveyor
Range of tools and accessories

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
