EHT - EHPS 15-40DE-PRE-EHT-1989-00001

Name: EHT EHPS 15-40
Brand: EHT
SKU: DE-PRE-EHT-1989-00001
Price: 12000 EUR
Availability: InStock

12,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used EHT EHPS 15-40 - Press For Sale | gindumac.com

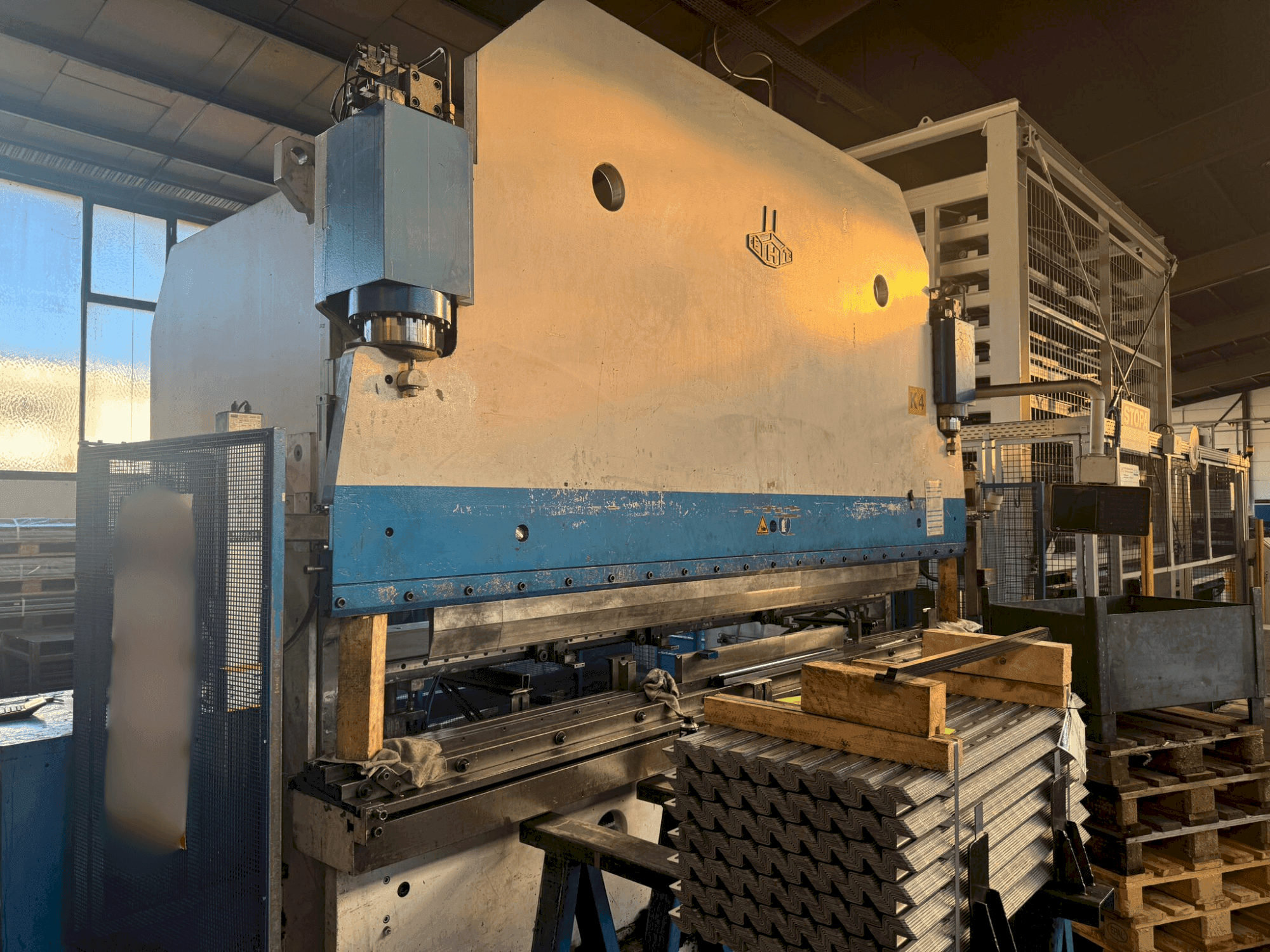

This EHT EHPS 15-40 Press brake was manufactured in 1989. It is a robust and reliable piece of equipment, ideal for various pressing applications in industrial settings. Consider the opportunity to buy this EHT EHPS 15-40 Press brake. Contact us for more information.

Overview

brand: EHT
year: 1989
MODEL: EHPS 15-40
application type: Pressing / Laminating
Location: Germany
machine type: Press Brake
availability: Immediately

Technical Information - EHT EHPS 15-40

Main drive

Main motor power: 1500 KN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working length: 4050
- - Frequency: 50 hz
- - Operating voltage: 380 v
- - Control voltage: 220/24 v
- - Rated current: 47 a

Extra information

- Machine still under power // Press force 1500 kN / Distance between columns 3545 mm/ Column utilization 350 mm/ Hydraulic ram stroke 220 mm/ Distance between table and ram: Max. stroke 490 mm, min. stroke 270 mm/ Stroke speed: Idle 100 mm/sec/ Under load 3-10 mm/sec/ Retraction 100 mm/sec/ Rip stop adjustment from tool center 5-1000 mm/ Rip stop adjustment speed 200 mm/sec/ Rip stop lowering +-10 mm/ Safety distance between tool and control element 120 mm/ Overtravel time 75 ms/ Overtravel distance 11 mm/ Main motor power 18.5 KW/ Rip stop drive power 3/6 Ns/ Max. hydraulic system pressure 265 bar/ Max. pneumatic system pressure 6 bar/ Contents Oil tank: 390 liters/ Machine weight: 14,500 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
