EHT - EHPS 20-35DE-BEN-EHT-1991-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used EHT EHPS 20-35 - Press For Sale | gindumac.com

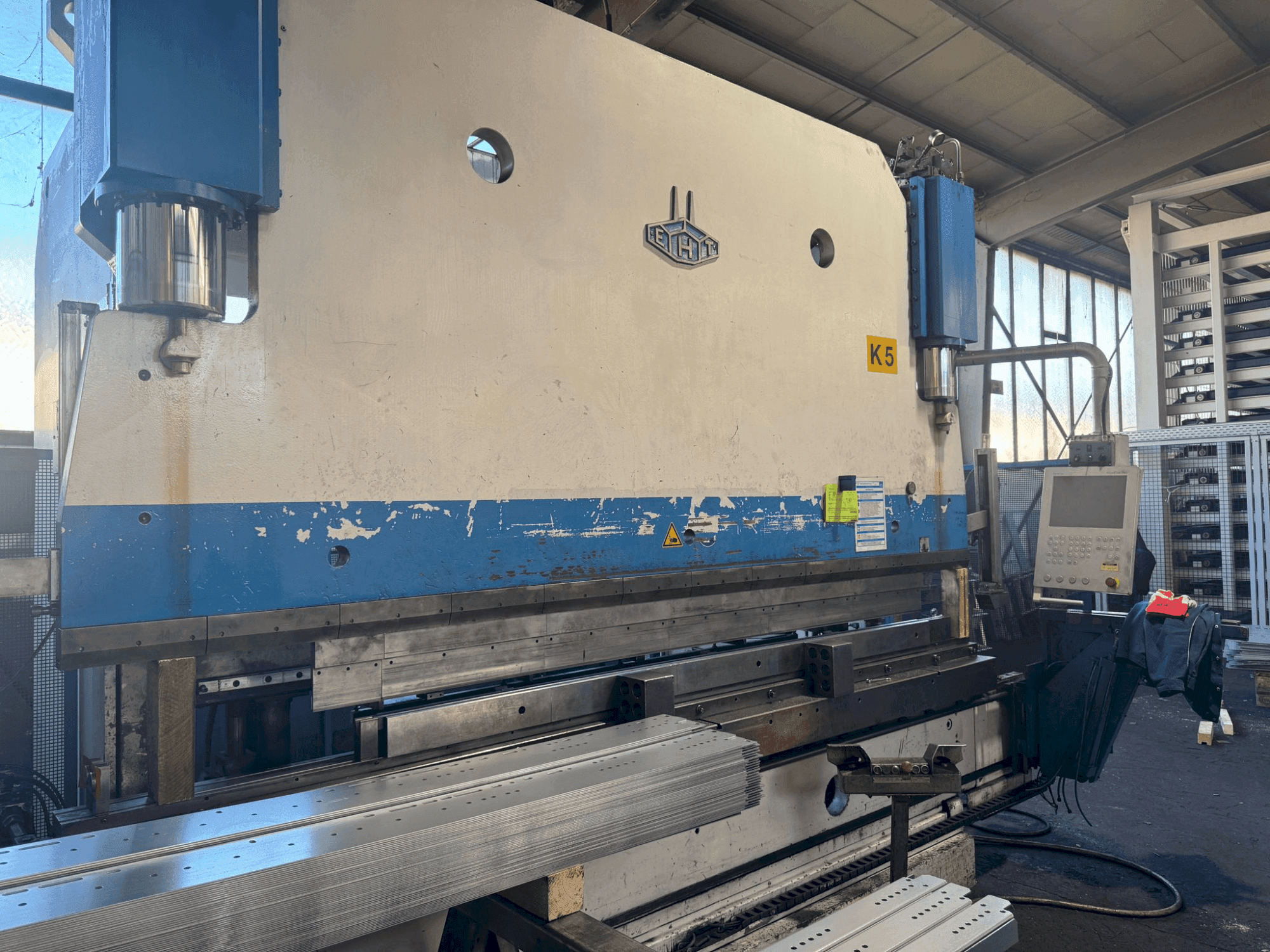

This EHT EHPS 20-35 Press brake was manufactured in 1991. Ideal for various pressing applications, it offers robust construction and reliable performance. Contact us for more information.
Overview
- brand: EHT
- year: 1991
- MODEL: EHPS 20-35
- application type: Bending
- Location: Germany
- machine type: Hydraulic Press
Additional Information
Machine Benefits
Technical Machine Benefits
- Frequency: 50hz
- Operating voltage: 380v
- Control voltage: 220/24v
- Rated current: 48a
- Rated current of the main fuse: 63a
Extra Information
Machine still under power // Max. press force 2000 kW/ Table length 3550 mm/ Tool length 3550 mm/ Distance between columns 3050 mm/ Column overhang 350 mm/ Hydraulic ram stroke 330 mm/ Distance between table and ram, stroke max. 580 mm, min. 250 mm/ Stroke speeds: Idle 100 mm/s/ Under load max. 9 mm/s/ Retraction 95 mm/s/ Adjustment speed - parallel stop 250 mm/s/ Parallel stop - height adjustment from table 105-205 mm/ Safety distance between tool and operating elements 104 mm/ Overrun time 65 ms/ Overrun travel 11 mm/ Drive power of the main motor Y1 + Y2 18.5 kW/ Torque of the parallel stop X 3 N/m/ Torque of the parallel stop height adjustment R 3 N/m/ Hydraulic system pressure: 300 bar/ Max. pneumatic system pressure: 6 bar/ Oil tank capacity: 390 liters/ Operating voltage: Three-phase current 380 V/ Control voltage: 24 V/ Total rated current: 50 amperes/ Rated current for main fuse: 63 amperes/ Machine weight: 16,000 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
