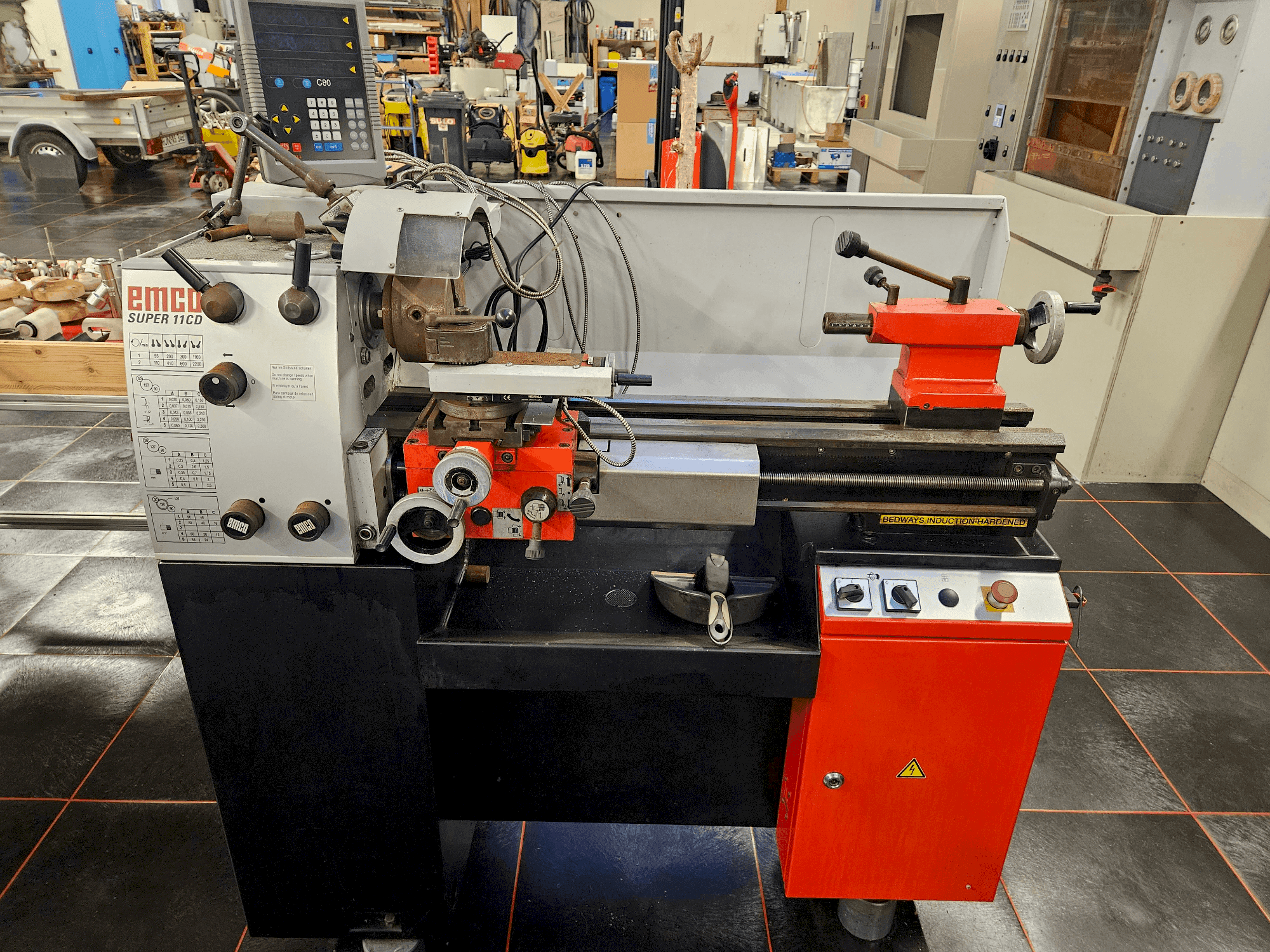

Front view of EMCO SUPER11 CD  machine

EMCO SUPER11 CD

EMCO - SUPER11 CD

2005

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This EMCO SUPER11 CD Lathe was manufactured in the year 2005 in Austria. It offers a tip width of 650 mm, a swing diameter over bed of 280mm and a rotation diameter over cross slide of 170 mm which is ideal for relatively large workpieces. With its speed range from 55 to 2200 rpm it offers precise control. It features a longitudinal feed in the range of 0.03 - 0.3 mm/rev. The machine has been standing for 4 years, so the rust film needs to be removed. In general it has relatively low hours for its age. A second unit EMCO SUPER11 CD, YOM 2003, is available.

Overview

  • brand: EMCO
  • year: 2005
  • MODEL: SUPER11 CD
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Sold
  • GINDUMAC ID: DE-TUR-EMC-2005-00001

Technical Information

General Data

  • Measurements width: 1350 mm
  • Measurements depth: 800 mm
  • Measurements height: 1240 mm

Main drive

  • Spindle speed range: 55 - 2200 rpm 1/MIN

Media

  • Main electronic connection: 16 A / 380 V

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tip width: 650 mm
        • - Center height: 140 mm
        • - Swing diameter over bed: 280 mm
        • - Rotation diameter over cross slide: 170 mm
        • - Longitudinal feeds: 14 pieces (from 0. 03 - 0. 3 mm/rev)
        • - Face feeds: 14 pieces (from 0. 015 - 0. 15 mm/rev)
        • - Pinol stroke: 80 mm

      Extra information

      • - It has been standing for 4 years, so the rust film needs to be removed // Relatively low hours // Second unit EMCO SUPER11 CD, YOM 2003 available

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
