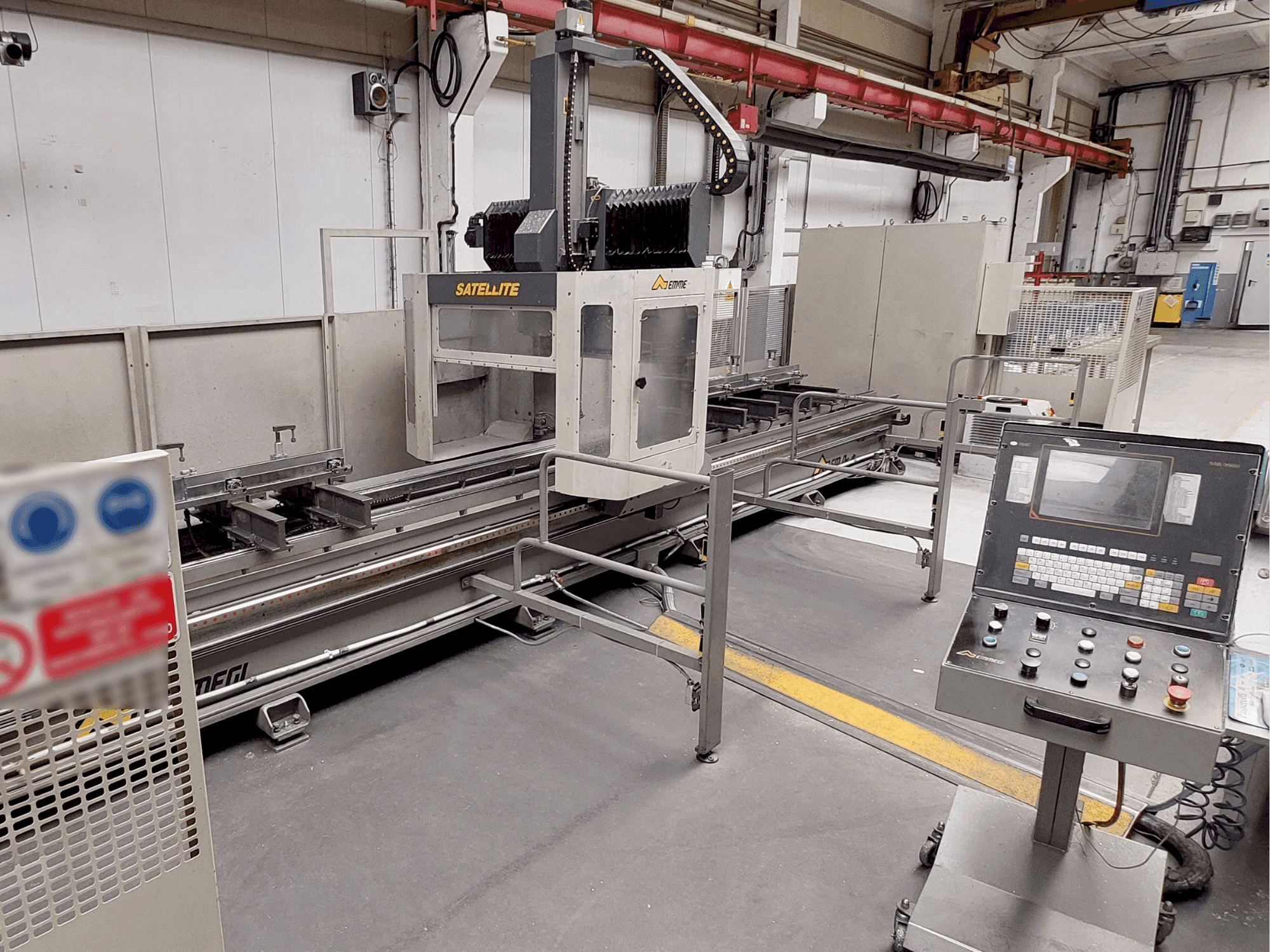

Front view of Emmegi Satellite TU6.5 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Emmegi Satellite TU6.5

Photo Gallery

Emmegi - Satellite TU6.5PL-MIL-EMM-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Emmegi Satellite TU6.5 For Sale | gindumac.com

This 5-axis Emmegi Satellite TU6.5 was manufactured in 2000. It features a large working area with X-Axis at 6500 mm, Y-Axis at 800 mm, and Z-Axis at 700 mm. The B-Axis offers full 360° rotation, and the C-Axis provides ±180° movement. With rotational speeds up to 24,000 rpm, this universal machining center represents a robust opportunity for precision machining. Contact us for further details regarding this universal machining center.

Overview

brand: Emmegi
year: 2000
MODEL: Satellite TU6.5
production hours: 44223
application type: Milling
Location: Poland
machine type: Universal Machining Centre

Technical Information - Emmegi Satellite TU6.5

Dimensions

Machine Weight: 6700 kg

Movement

X-axis Travel: 6500 mm
Y-axis Travel: 800 mm
Z-axis Travel: 300 mm

Technical Specification

Spindle Power: 7 kW
Spindle Speed: 20000 RPM

Additional Information

Additional equipment

Tool Magazine Capacity: 8 + 1 tools
Positioning of Clamping Devices: Automatic
Independent, X-Axis Adjustable Working Areas: 2

Machine Benefits

Technical Machine Benefits

Maximum positioning speed of x-axis: 40 m/min
Maximum positioning speed of y, z axes: 30 m/min
Maximum positioning speed of b, c axes: 22. 5 u/min
Maximum workpiece length (top surface processing): 6890 mm
Maximum workpiece length (processing on all four sides): 6650 mm
Maximum workpiece width (top surface processing): 760 mm
Maximum workpiece thickness (with 80 mm tool length): 200 mm
Installed power: 23 kw
Operating pressure: 6 - 8 bar
Air consumption per working cycle: 150 n/min

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
