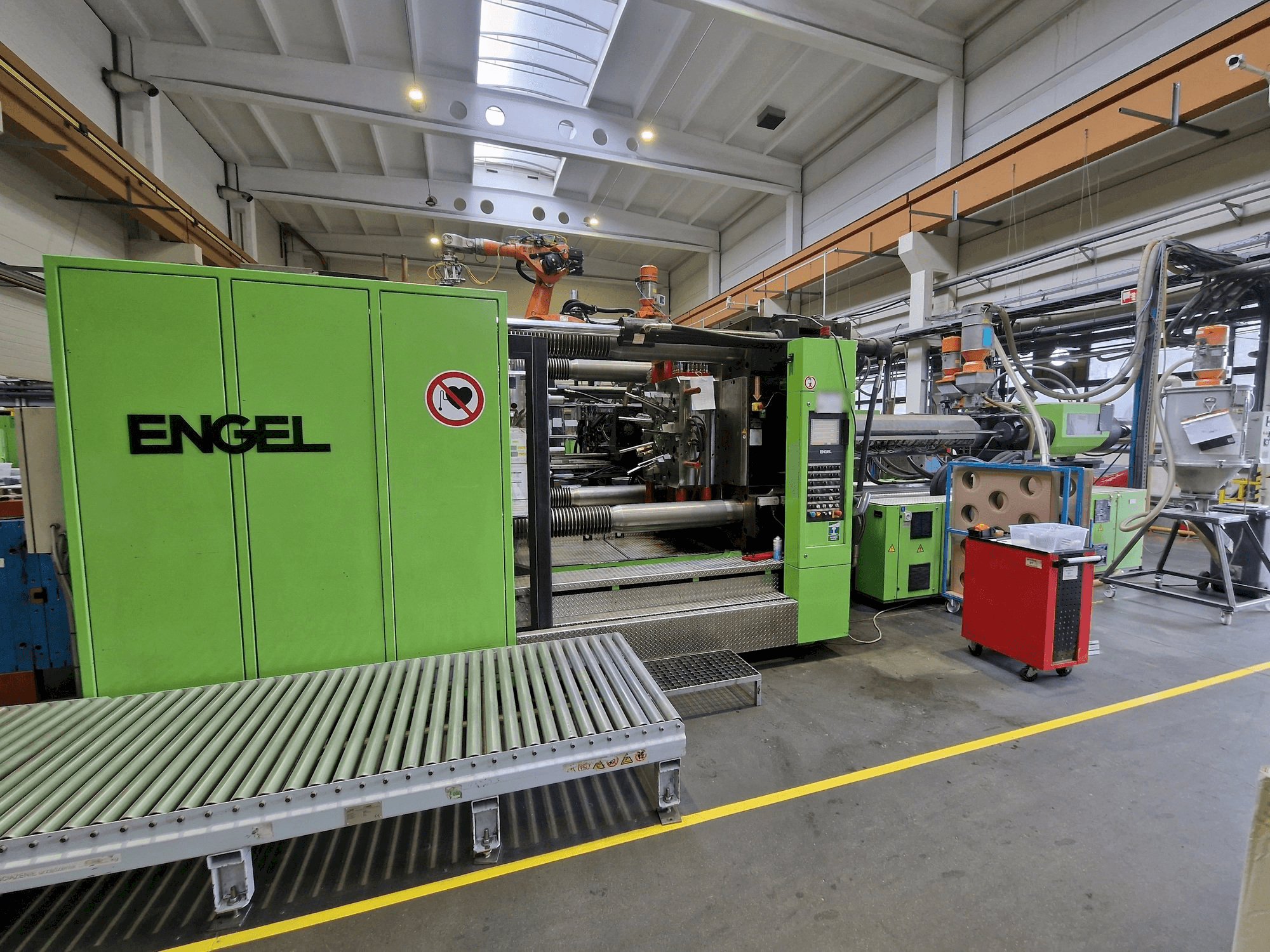

ENGEL DUO 3550H/330L/1000 COMBI Injection moulding machine

This ENGEL DUO 3550H/330L/1000 COMBI Injection moulding machine was made in 2005 in Germany and has 93062 production hours. It is equipped with an ENGEL control unit. The machine has a clamping force of 10000 kN and a screw diameter of 30-105 mm.

Overview

brand: Engel
year: 2005
MODEL: DUO 3550H/330L/1000 COMBI
production hours: 93062
application type: Injection Moulding
Location: Poland
machine type: Injection Moulding Machines
availability: Sold
control unit brand: ENGEL
GINDUMAC ID: PL-INJ-ENG-2005-00001

Technical Information

Control Unit

Brand: ENGEL

Injection Unit

Screw diameter: 105 / 30 mm

Clamping unit

Clamping force: 10000 kN
Opening stroke: 1800 mm
Distance between bars: 1400 / 1150 mm
Mould height min: 492 mm
Mould height max: 1092 mm
Ejector stroke: 0 – 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter of center ring injection side: 250 mm, diameter of center ring ejection side: 250 mm
- - Clearance between the tables: 2292 mm, capacity injection: 3053 cm3 / 100 cm3
- - Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
- - Quantity core pulling: 4 pcs, table whole tread: magnetic - tecnomagnete
- - Quantity of hydraulic oil: 1000 liters, heating power: 45 kw
- - Safeguard the door: electric, motor: 75 kw
- - Valve terminal: 8 nozzles, air valves: 1
- - System for quickly clamping molds: tecnomagnete.
Qualitative Machine Benefits:
- - Machine in very, good working condition, ready for test.
- - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
