Engel - ES 1300/225AT-INJ-ENG-1991-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ENGEL ES 1300/225 Injection Moulding Machine

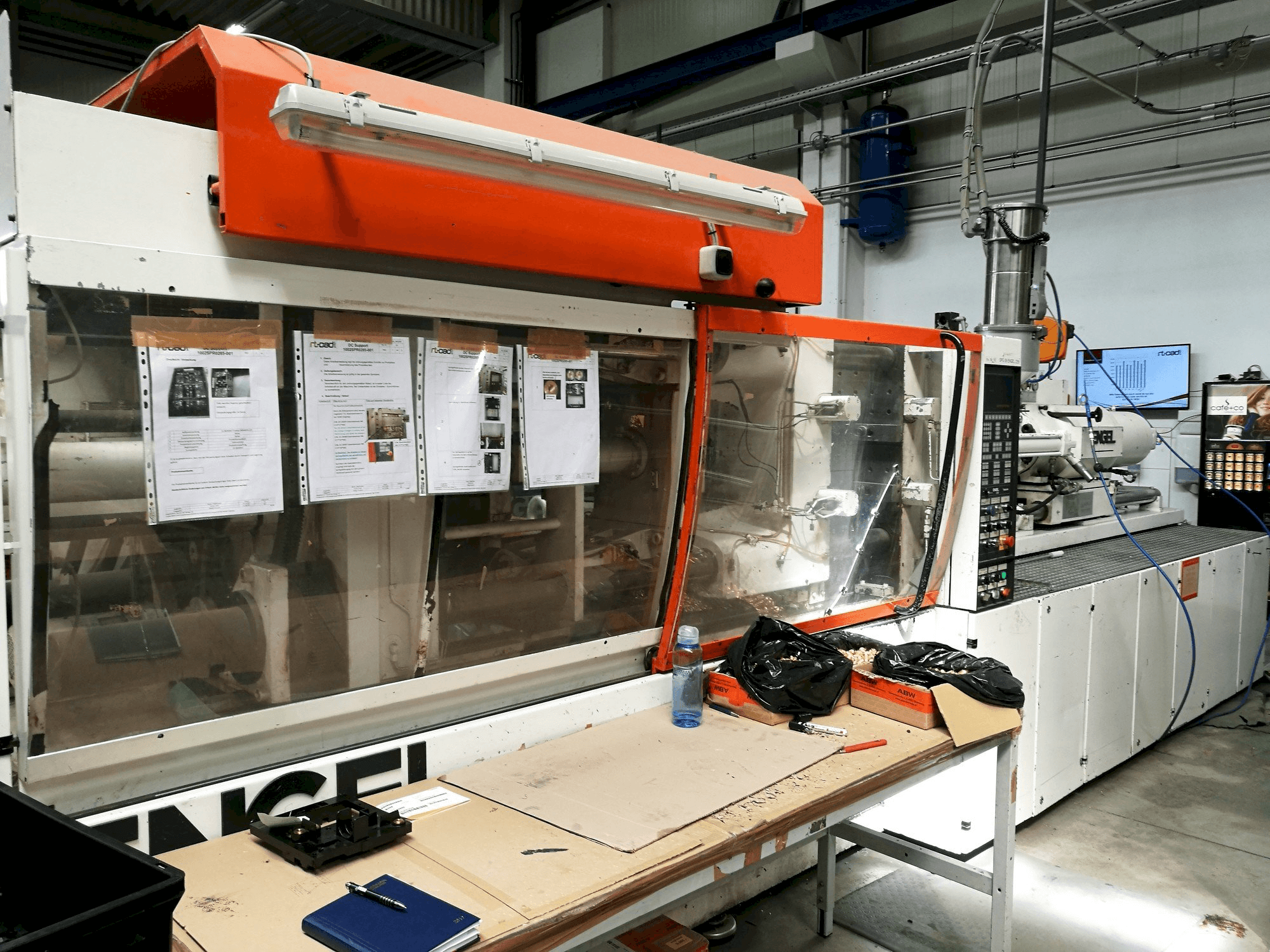

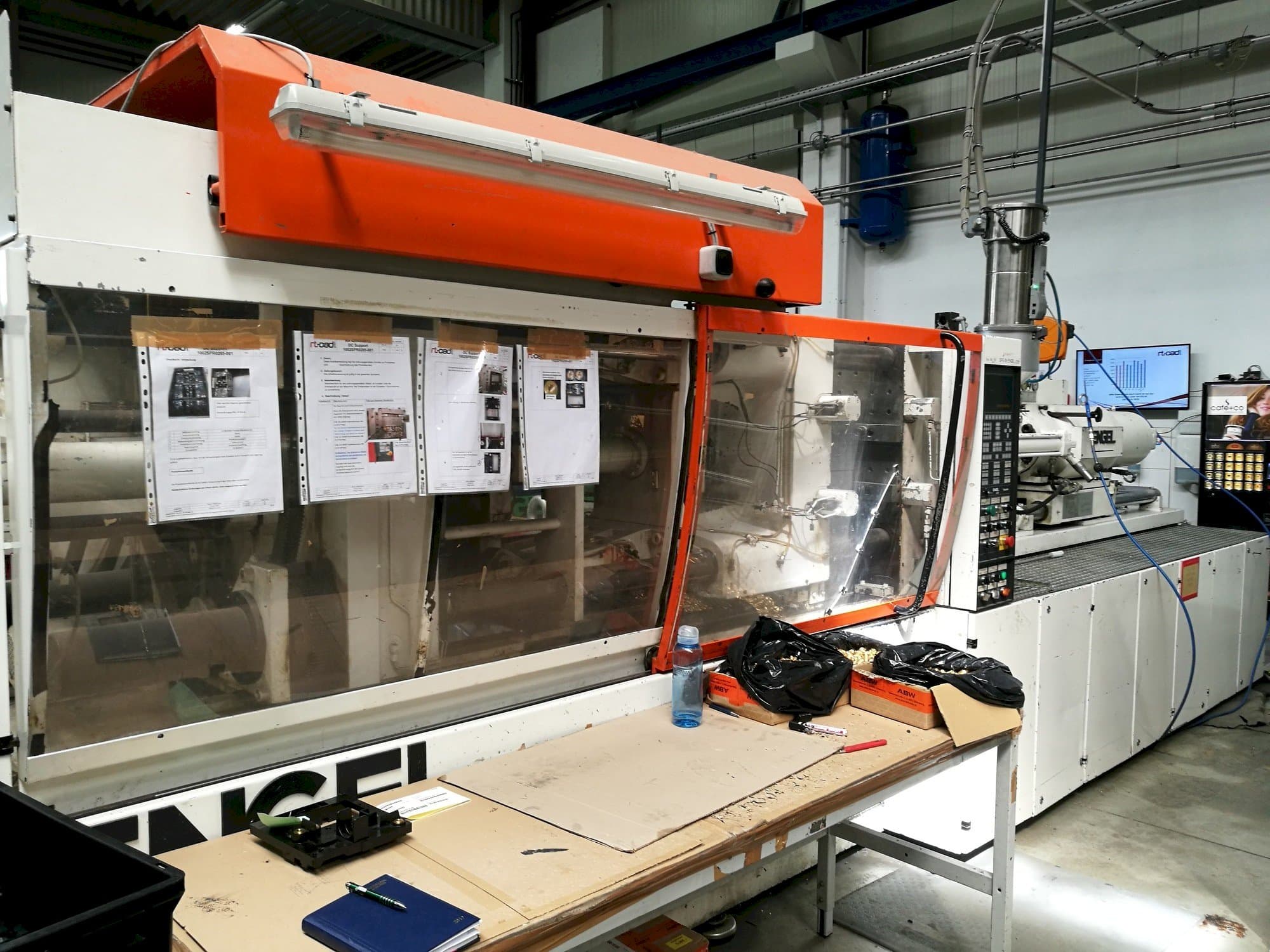

This ENGEL ES 1300/225 Injection Moulding Machine was made in 1991 in Austria and has been working for 66120 hours since then.Equipped with an ENGEL EC88 Control unit, this machine performs with a clamping force of 2475 kN. It stands out for its ability to work in a 2 shift process.
Overview
- brand: Engel
- year: 1991
- MODEL: ES 1300/225
- production hours: 66120
- application type: Injection Moulding
- Location: Austria
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: ENGEL
Technical Information - Engel ES 1300/225
General Data
- Measurements width: 6884 mm
- Measurements depth: 1695 mm
- Measurements height: 2310 mm
- Machine weight: 11800 kg
Control Unit
- Model: EC88
- CNC main language: German
- CNC language customizable: Yes
- Brand: ENGEL
Injection Unit
- Screw diameter: 60 mm
- Shot weight: 661 g/PS
- Stroke volume: 735 CM³
- Injection pressure: 1500/1700 bar
- Screw speed: 5-260 rpm
- Heating capacity: 25.9 kW
Clamping unit
- Clamping force: 2475 kN
- Opening stroke: 510 mm
- Distance between bars: 560x560 mm
- Mould height min: 200 mm
- Mould height max: 510 mm
- Size of mold platens: 820x820 mm
- Ejector stroke: 150 mm
- Ejector force for / back: 61 kN
Media
- Main electronic connection: 380 V
- Power consumption: 45 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
