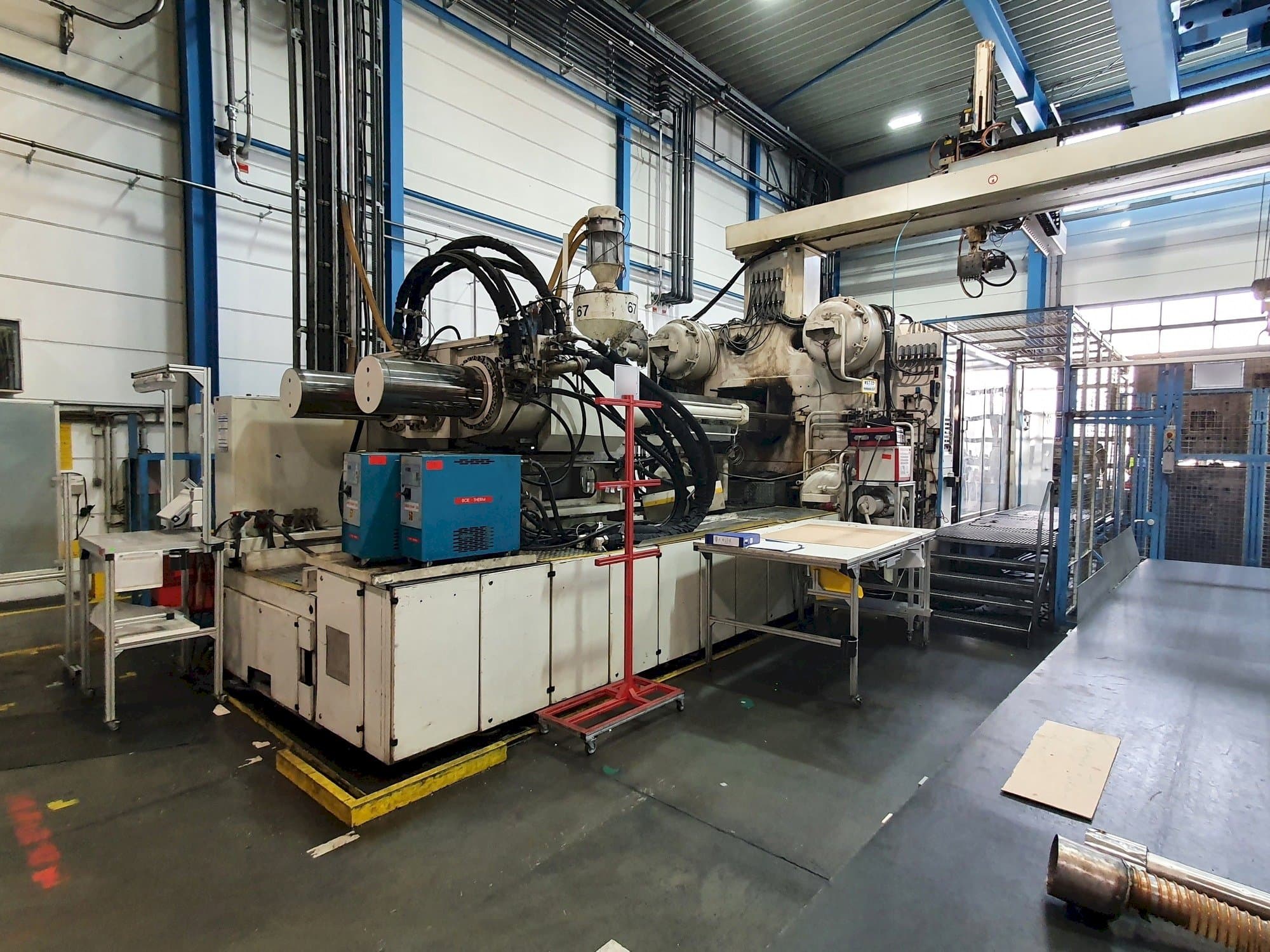

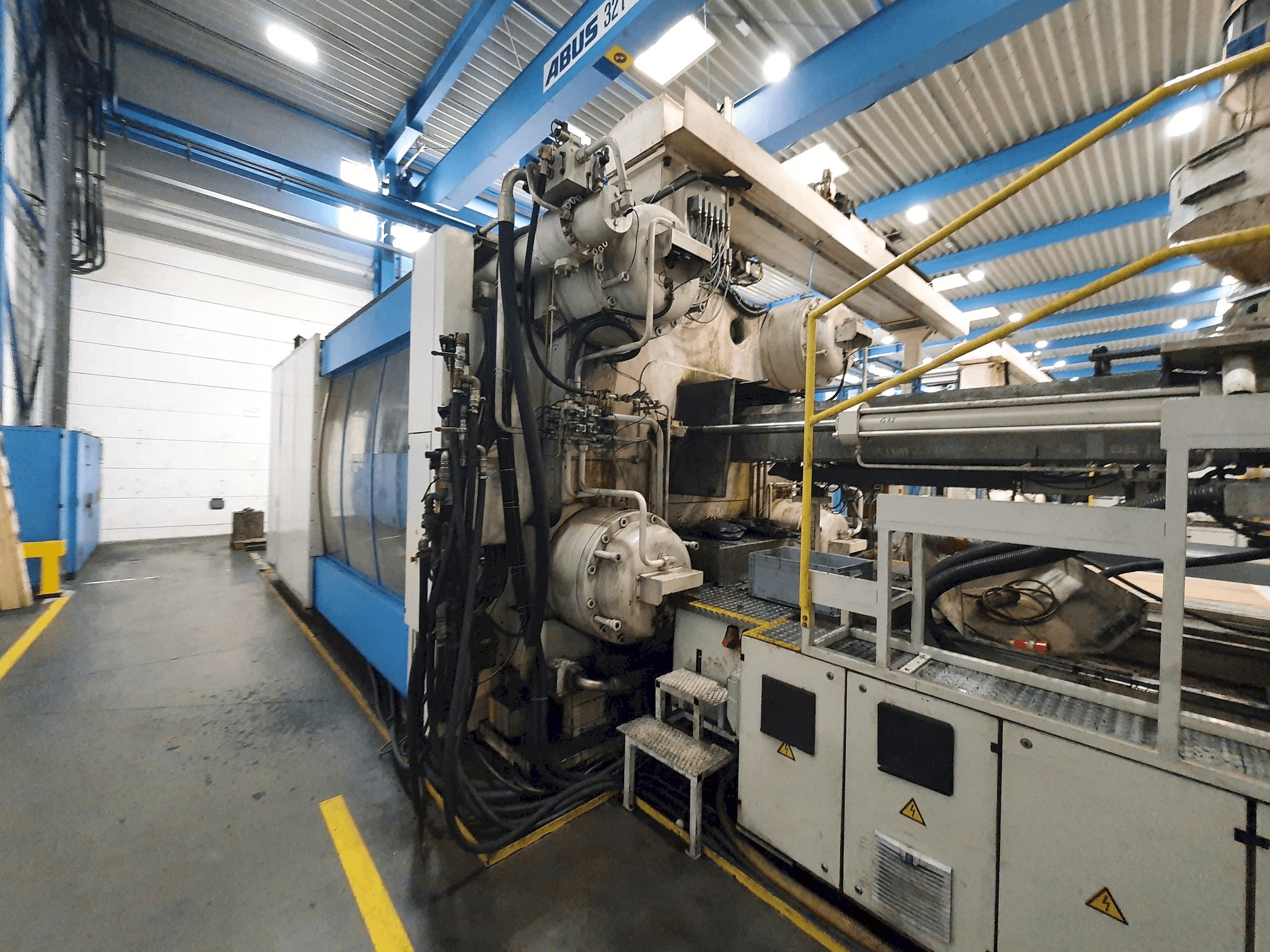

ENGEL ES 16050/2000 Duo Injection moulding machine

This ENGEL ES 16050/2000 Duo Injection moulding machine was manufactured in the year 1997. It is equipped with an Engel control unit. The machine has a clamping force of 20000 kN.

Overview

brand: Engel
year: 1997
MODEL: ES 16050/2000 Duo
production hours: 31513
application type: Injection Moulding
Location: Germany
machine type: Injection Moulding Machines
availability: Sold
GINDUMAC ID: DE-INJ-ENG-1997-00003

Technical Information

General Data

Machine weight: 15000 kg

Injection Unit

Screw diameter: 135 mm

Clamping unit

Clamping force: 20000 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar distance horizontal/vertical 2000/1600 mm
- - Clamping platen horizontal/vertical, 2900/2500 mm
- - Mold installation height max/min 1800/900 mm
- - Total mold weight: 54000 kg
- - Mold opening stroke: 3000 mm
- - Centering ds/as :250/250 mm
- - Crosshead thread m30
- - Injection pressure: 16400 n/cm3, injection volume 8870 cm3
- - Cascade 6-fold, core pulls fap/bap 2/3
- - Heating circuits ma/psg 32/12
Qualitative Machine Benefits:
- - Linear handling robot engel type erc xxl
- - Protective enclosure
- - Power connections: 370 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
