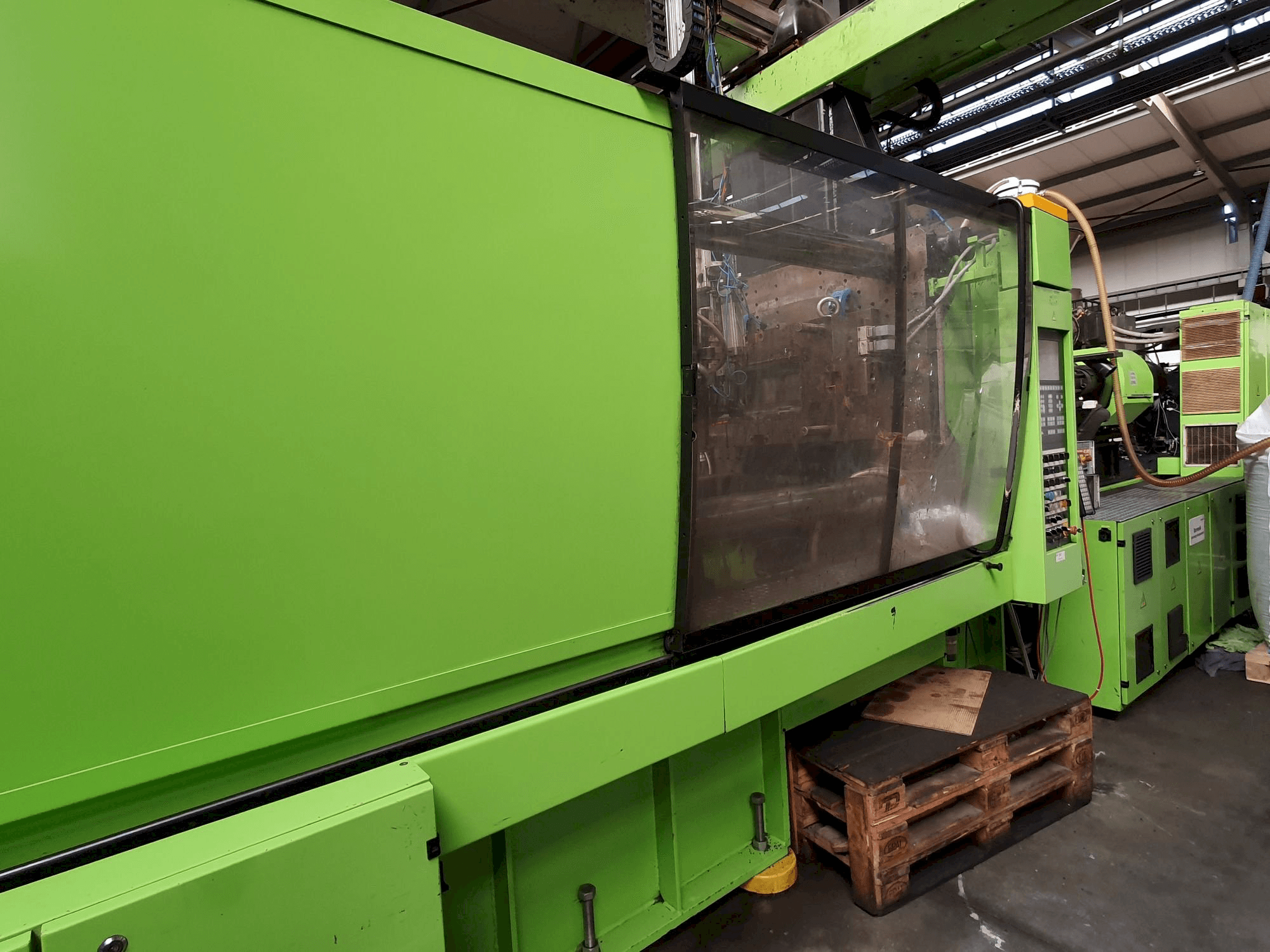

Front view of ENGEL ES 4550/550 KSL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel ES 4550/550 KSL

Photo Gallery

Engel - ES 4550/550 KSLPL-INJ-ENG-2001-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ENGEL ES 4550/550 KSL Injection moulding machine

This ENGEL ES 4550/550 KSL Injection moulding machine was made in the year 2001. It operates with a clamping force 5500 kN and an injection volume of 2480 g. Machine in very good working condition, ready for tests.

Overview

brand: Engel
year: 2001
MODEL: ES 4550/550 KSL
production hours: 7512
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Engel ES 4550/550 KSL

General Data

Measurements width: 9588 mm
Measurements depth: 2460 mm
Measurements height: 2461 mm
Machine weight: 11000 kg

Table

Outer length: 1345 mm
Outer width: 1260 mm

Injection Unit

Screw diameter: 90 mm

Clamping unit

Clamping force: 5500 kN

Media

Main electronic connection: 3x400V 50Hz
Power consumption: 250kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Locking force: 6050 kn
- - Opening path: 850 mm
- - Mold installation height: min. 310 – max 800 mm
- - Max stroke volume: 2480 g
- - Spray pressure: 2200 bar
- - Heating capacity: 68 kw
- - Clearance between bars: 920 x 860 mm
Qualitative Machine Benefits:
- - Machine in very good working condition
- - Ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
