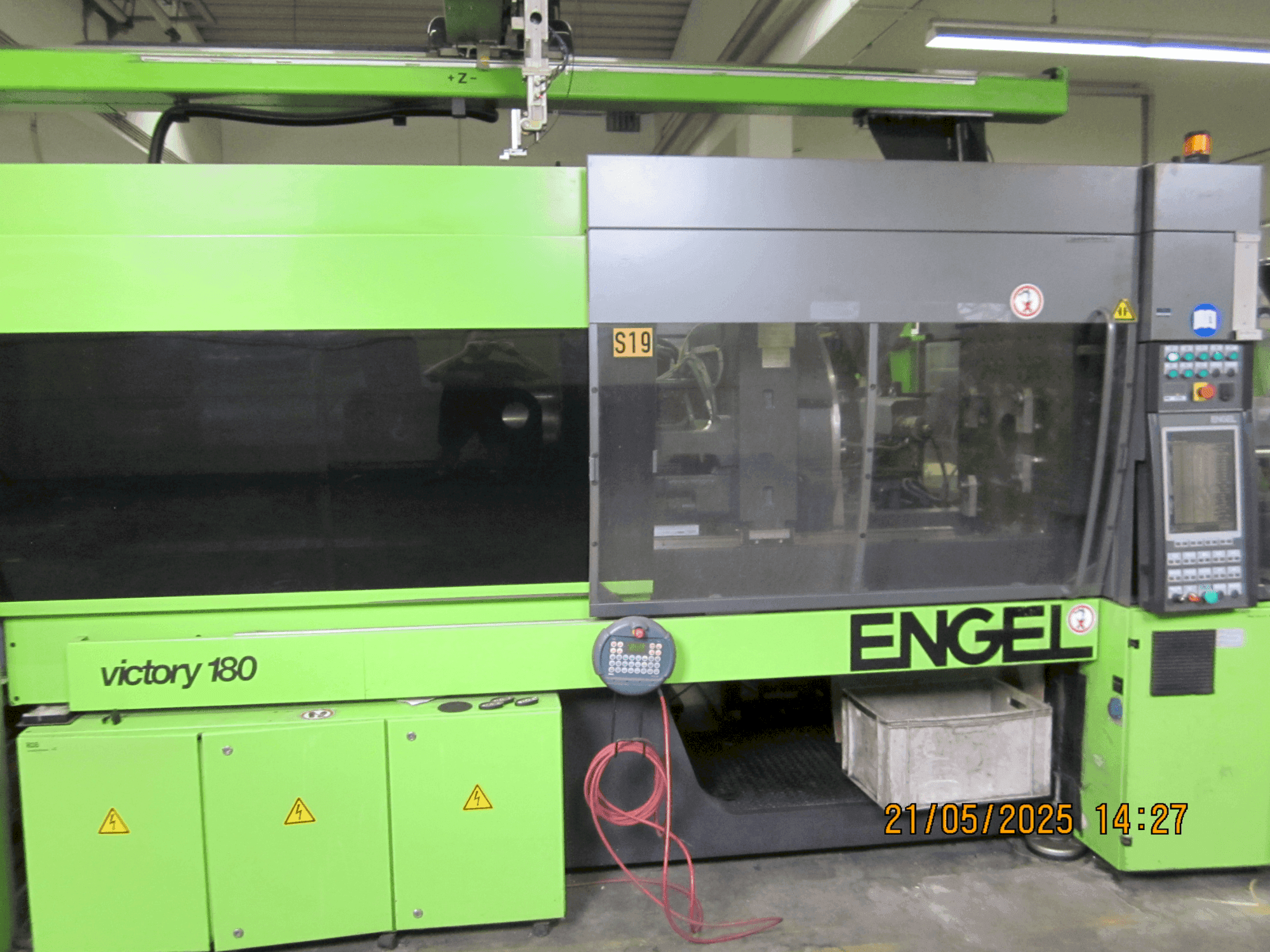

Front view of Engel VC 330H/200el/180 Combi machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel VC 330H/200el/180 Combi

Photo Gallery

Engel - VC 330H/200el/180 CombiDE-INJ-ENG-2009-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel VC 330H/200el/180 Combi | Injection Moulding

This Engel VC 330H/200el/180 Combi was manufactured in 2009. It features a screw diameter of 30 mm and includes a robot, despite having a defective CPU. Weighing 13,700 kg, it has accumulated 41,246 operating hours. Consider the opportunity to buy this Engel VC 330H/200el/180 Combi hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: Engel
year: 2009
MODEL: VC 330H/200el/180 Combi
production hours: 41246
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel VC 330H/200el/180 Combi

Control Unit

Control Brand: ENGEL
Control Model: CC 200

Dimensions

Machine Weight: 13700 kg

Additional Information

Additional equipment

Robot included

Machine Benefits

Technical Machine Benefits

Shooting force: 180
Screw diameter: 30 mm
Cpu defective

2K machine
Both screws have a diameter of 30 mm.

Clamping unit:

Clamping force 1800 kN

Opening stroke 757 mm

Ejector stroke 180 mm

Ejector force 80 kN

Drive:

Pump drive power 30 kW

Injection unit 1:

Screw diameter 30 mm

Max swept volume 113 cm³

Screw speed max current 400 r/min

Injection rate 111 cm³/s

Injection rate increased 82 cm³/s

Specification Injection pressure 2185 bar

Specification Injection pressure increased 23385 bar

Nozzle stroke 500 mm

Nozzle cont. pressure 48,9 kN

Injection unit 2:

Screw diameter 30 mm

Max swept volume 85 cm³

Screw speed max current 400 r/min

Injection rate 318 cm³/s

Injection rate increased 318 cm³/s

Specification Injection pressure 2000 bar

Specification Injection pressure increased 2000 bar

Nozzle stroke 250 mm

Nozzle cont. pressure 19,1 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
