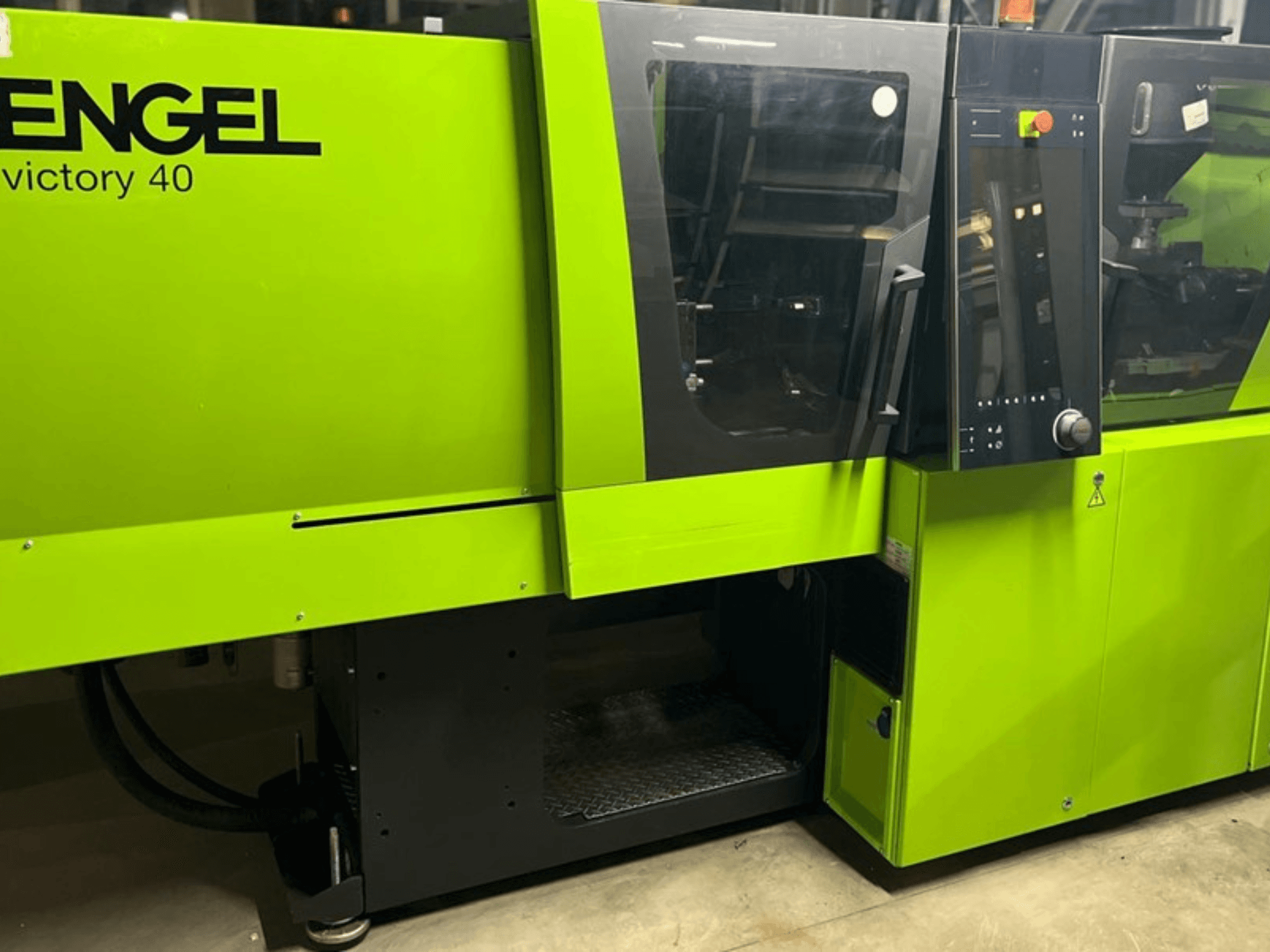

ENGEL Victory 40 injection molding machine in bright green, front view showing control panel and access door with warning label.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel VICTORY 200/40 tech

Photo Gallery

Engel - VICTORY 200/40 techRO-INJ-ENG-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel VICTORY 200/40 tech For Sale | gindumac.com

This Engel VICTORY 200/40 tech was manufactured in 2015. It features a tie-bar-less design, enhancing flexibility and accessibility for various mould sizes. With a clamping force of 40 tons and a screw diameter of 25 mm, it supports a maximum injection volume of 69 cm³. The machine includes a robot interface (Euromap 67) and is still in production, showcasing its reliability and excellent condition. Contact us for more information about this machine.

Overview

brand: Engel
year: 2015
MODEL: VICTORY 200/40 tech
production hours: 27137
application type: Injection Moulding
Location: Romania
machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel VICTORY 200/40 tech

Dimensions

Machine Height: 1780 mm
Machine Length: 3179 mm
Machine Weight: 2900 kg

Technical Specification

Clamping Force: 400 kN
Screw Diameter: 25 mm

Additional Information

Injection unit: 200
Maximum injection volume: 69 cm³
Minimum mould height: 193 mm
Maximum mould height: 599 mm
Platen opening stroke: 405 mm
Platen dimensions (W x L): 500 x 450 mm
Tie bars: Tie-bar-less design
Motor power: 15 kW
Heater power: 6.85 kW
Number of electrical connection pins: 16
Injection nozzle radius (tip): R35
Centering ring diameter: 125 mm
Robot interface: Euromap 67
Operating hours: 27,137 h
Condition: Excellent
Status: In production

Additional equipment

Robot (equipped; brand/model not specified)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
