Used ENGEL Victory 350 For sale | gindumac.com

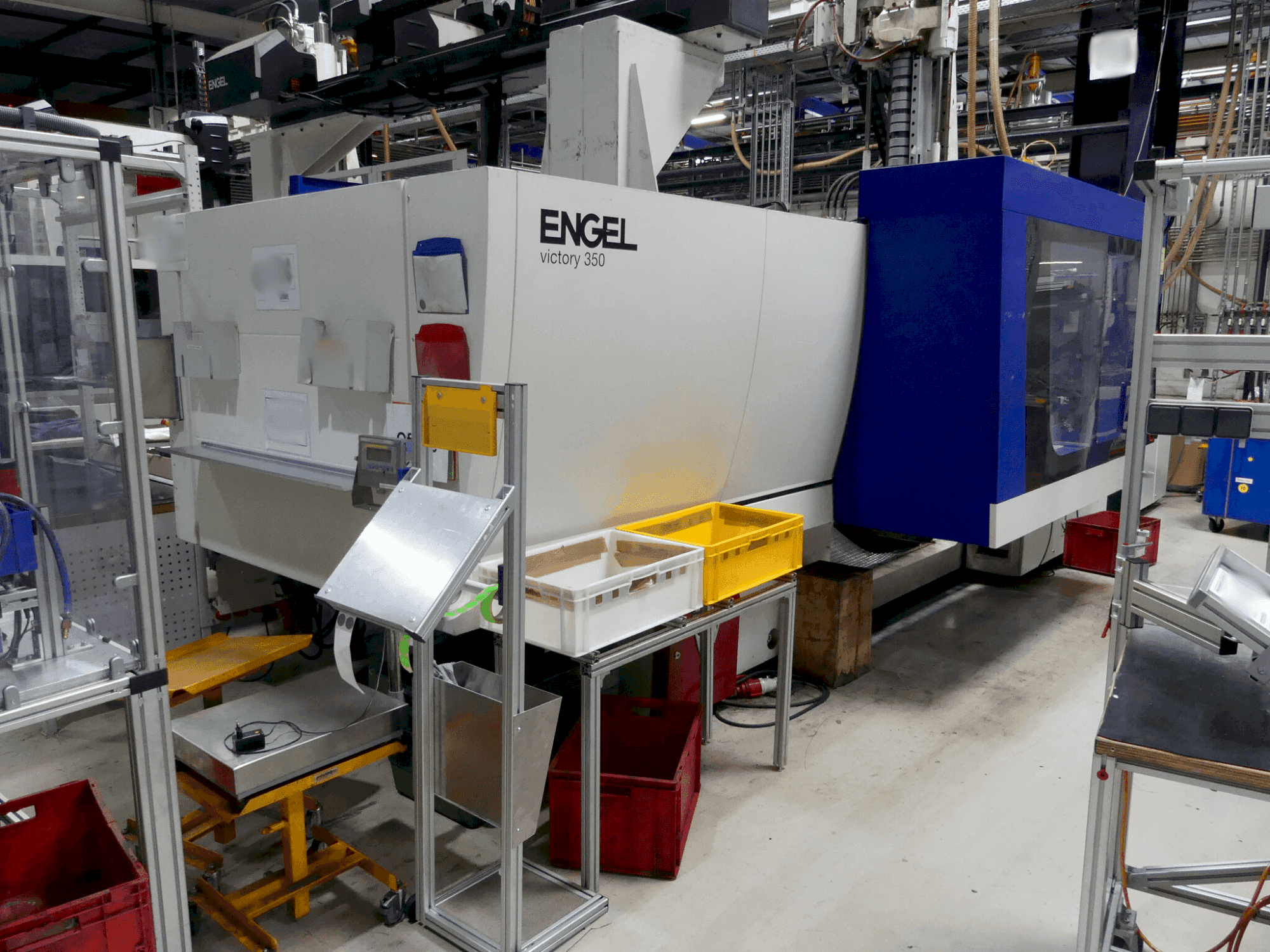

This ENGEL Victory 2050H/650v/350 Combi injection moulding machine was manufactured in 2015. It boasts significant capabilities with a clamping force of 350 tons and an injection pressure of 1480 bar. The machine offers a maximum injection volume of 808.17 cm³ horizontally and 294.52 cm³ vertically, enhancing its versatility. Additionally, it is equipped with special accessories like Valves + control, an Index plate, and a Viper robot 40 for automated removal. Reach out for more information about this injection moulding machine.

Overview

brand: Engel
year: 2015
MODEL: Victory 2050H/650v/350 Combi
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Engel Victory 2050H/650v/350 Combi

General Data

Machine weight: 5100 KG

Injection Unit

Stroke volume: minimum injection volume (cm3) 1D - horizontal 269.39, vertical 98.17 / maximum injection volume (cm3) 3D - horizontal 808.17; 294.52 CM³
Injection pressure: 1480 bar

Clamping unit

Clamping force: 350 tons KN

Additional Equipment

- Valves + control
- Index plate
- Viper robot 40
- Removal weight with gripper 23 kg
- permissible torque on gearbox 113 Nm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Thread clamping plate diameter: 20
- - Spray weight g/hp horizontal: 1051 g
- - Spray weight g/hp vertical: 357. 6 g
- - Total permissible mould weight of which on moving platen max: 2. 5 t
- - Amin installation height: 650 with platen, 750 without platen / amax installation height: 1000, bmax
- - Opening travel: 1650 with plate / 1750 without plate
- - Ejector stroke max 250
- - Cylinder diameter horizontal (mm) 70 / vertical (mm) 50

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
