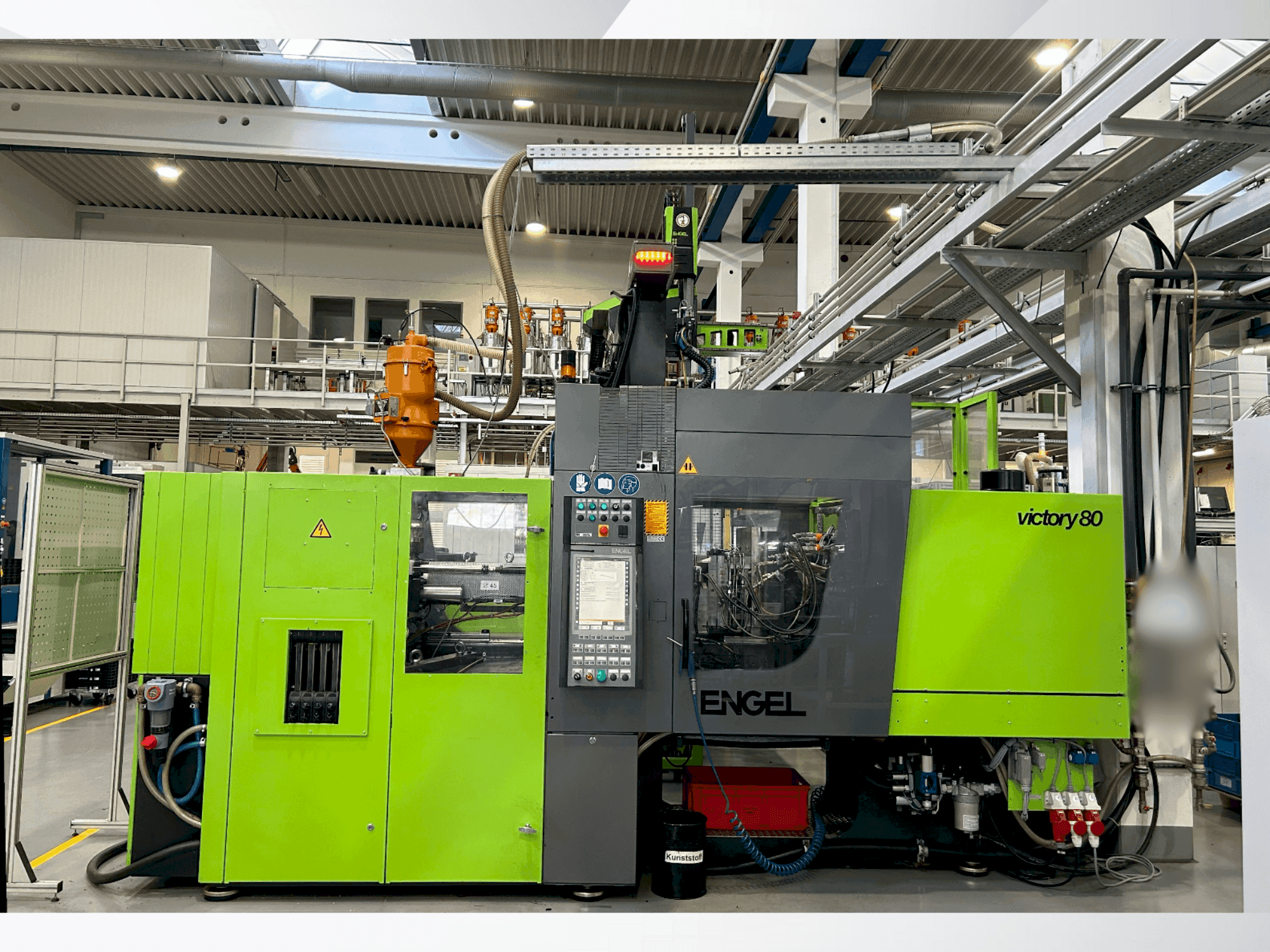

This hydraulic injection moulding machine was manufactured in 2011. It features an 800 kN clamping force and a screw diameter of 45mm, capable of a shot volume of 306ccm. The platen size is 670mmx670mm, and it can handle a mould opening height from 300mm to 900mm. Consider the opportunity to buy this Engel VICTORY 500/80 hydraulic injection moulding machine. Contact us for more information about this machine.
Overview
- brand: Engel
- year: 2011
- MODEL: VICTORY 500/80
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
- control unit brand: ENGEL
Technical Information - Engel VICTORY 500/80
General Data
- Machine weight: 5300 KG
Control Unit
- Brand: ENGEL
- Model: eco victory 500/80
Injection Unit
- Screw diameter: 45 mm
- Stroke volume: 306 ccm CM³
- Injection pressure: Specific max 1598 bar
- Screw speed: 162.2ccm/s max
Clamping unit
- Clamping force: 800 kn
- Mould height min: 300 mm
- Mould height max: 900 mm
- Size of mold platens: 670 mm x 670 mm
Additional Equipment
- - Core pull DS 1 time AS 2 times
Additional Information
- Technical Machine Benefits:
- - Quick stroke/opening stroke
- - Distance between bars: tie-bars loose machine
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
