- ERAT 3000/775 Injection Moulding Machine

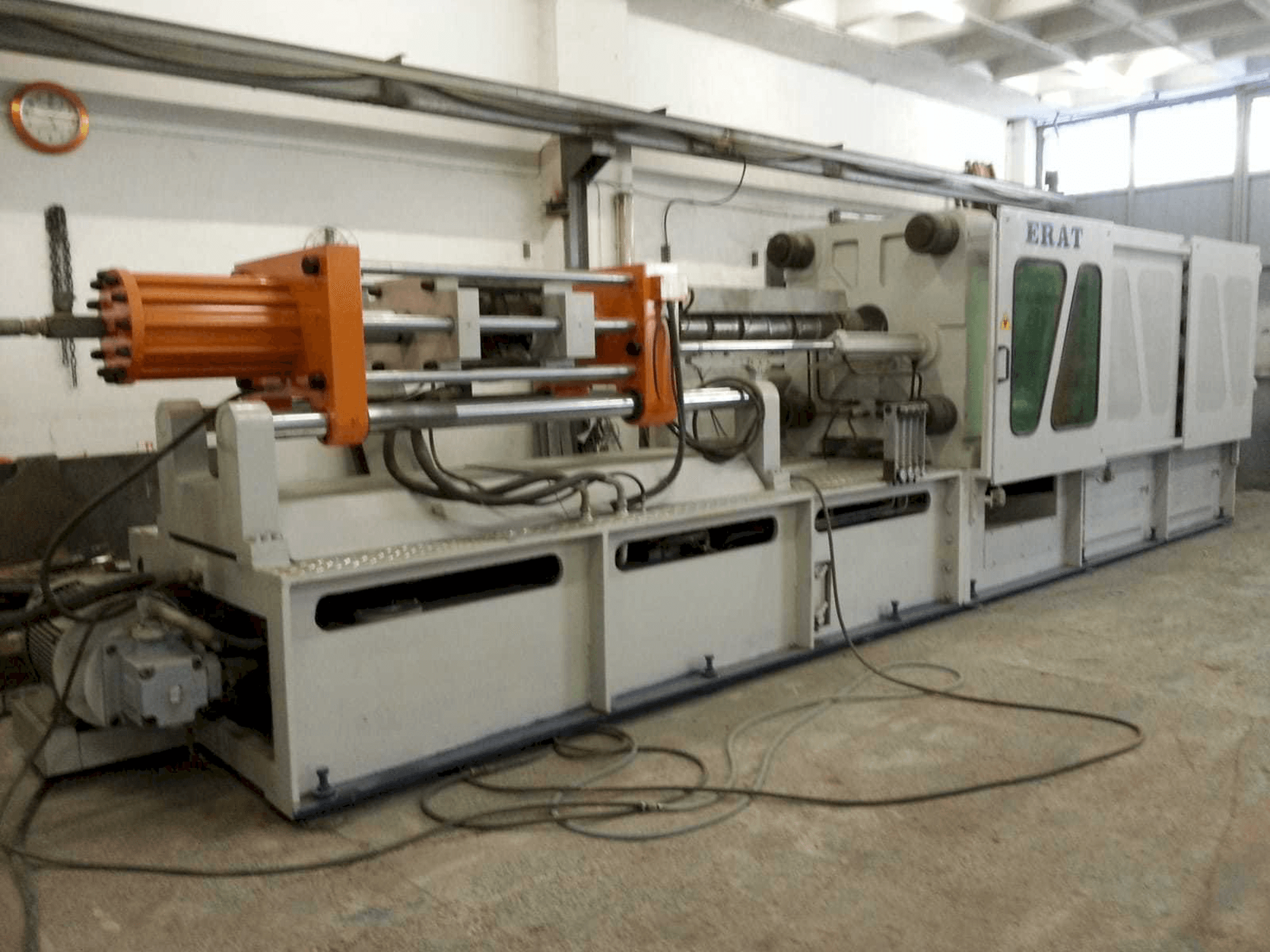

This ERAT 3000/775 Injection Moulding Machine was manufactured in the year 2015. This powerful machine can operate with a clamping force of 7750kN.
Overview
- brand: ERAT
- year: 2015
- MODEL: 3000/775
- application type: Injection Moulding
- Location: Turkey
- machine type: Hydraulic Injection Moulding Machine
Technical Information - ERAT 3000/775
General Data
- Measurements width: 1430 mm
- Measurements depth: 8370 mm
- Machine weight: 35000 kg
Injection Unit
- Screw diameter: 90 mm
- Stroke volume: 420 mm CM³
- Heating capacity: 30 kW
- Adjustable heating zones: 6
Clamping unit
- Clamping force: 7750 kN
- Opening stroke: 775 mm
- Distance between bars: 850x850 mm
- Mould height min: 300 mm
- Mould height max: 1000 mm
- Size of mold platens: 1240x1240 mm
Media
- Power consumption: 55 kW
Additional Information
Machine Benefits
Technical Machine Benefits
- Injection force: 100 kn
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
