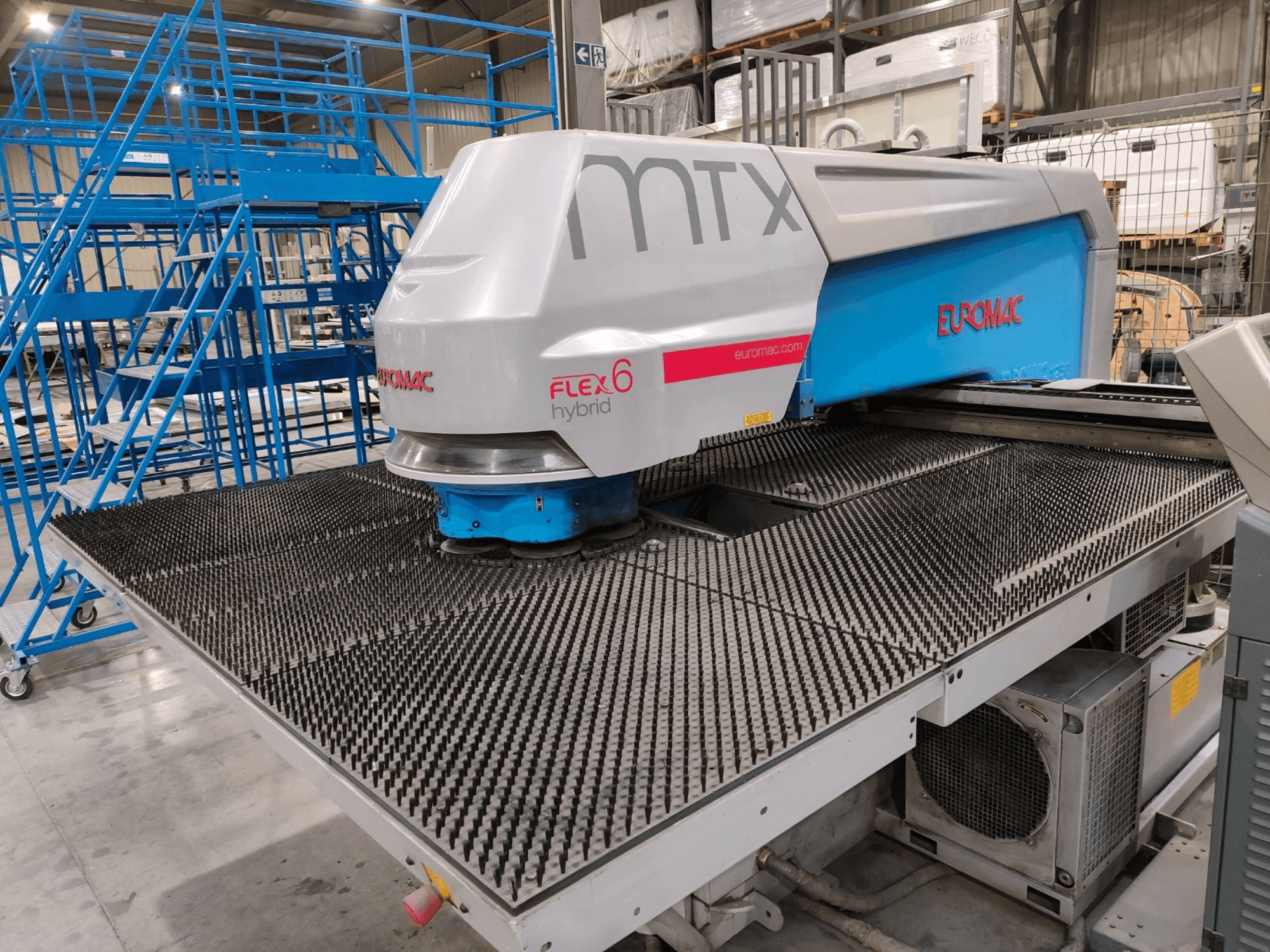

Front view of a Euromac FLEX 6 hybrid machine with a textured cutting surface, set in a warehouse environment.
Front view of a Euromac FLEX 6 hybrid machine with a textured cutting surface, set in a warehouse environment.

Euromac - MTX Flex 6 HybridPL-PUN-EUR-2013-00001

52,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Euromac MTX Flex 6 Hybrid was manufactured in 2013. It features a maximum punching force of 300 kN and can handle sheet weights up to 200 kg. Equipped with a hydraulic system controlled by a servomotor, it ensures precision and efficiency. The machine supports automatic repositioning up to 10000 mm and has a maximum punching diameter of 85 mm. Ideal for high-quality punching capabilities. Contact us for more information about this machine.

Overview

  • brand: Euromac
  • year: 2013
  • MODEL: MTX Flex 6 Hybrid
  • application type: Punching
  • Location: Poland
  • machine type: CNC Punching Machine

Technical Information - Euromac MTX Flex 6 Hybrid

Dimensions

  • Machine Weight: 6500 kg

Movement

  • X-axis Travel: 1300 mm

Technical Specification

  • Punching Force: 300 Kn

Additional Information

  • Model: MTXR FLEX 6ST 1250/30-1300 AU

  • Y-axis stroke with multitool/single-tool: 1250 mm

  • X-axis stroke: 1300 mm

  • Automatic repositioning: up to 10000 mm

  • Punch stroke adjustment range: 0.1–31 mm

  • Hydraulic system with servomotor control: standard

  • Punching accuracy: ±0.05 mm

  • Shape repeatability accuracy: ±0.1 mm

  • Autoindex rotation speed: 174 rpm

  • Maximum strokes per minute:

    • Punching at 20 mm pitch: 375 1/min

    • Nibbling at 1 mm pitch: 1000 1/min

    • Marking: 2000 1/min

  • Maximum sheet weight at reduced speed: 200 kg

  • Maximum punching diameter (Autoindex stations): 85 mm

  • Hydraulic tank capacity: 135 liters

  • Installed power: 8.5 kW

  • Average power consumption: 4.5 kW/h

  • Workpiece discarding trap: 350 × 350 mm

  • Overall dimensions: 2240 × 3630 mm

  • Safety light curtains are included

  • Table type: Brushes

  • Tooling system: Thick Turret

  • Clamp type: Automatic, long

  • Automatic tool lubrication: Yes

  • External cooling system: SESINO

  • UPS system: Yes

  • Teleservice: Yes

  • Status: The machine is currently disconnected, but can be connected and inspected. It is fully functional.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
