- ➤ Used FANUC Robodrill Alpha D21LIB5 Plus | Machining

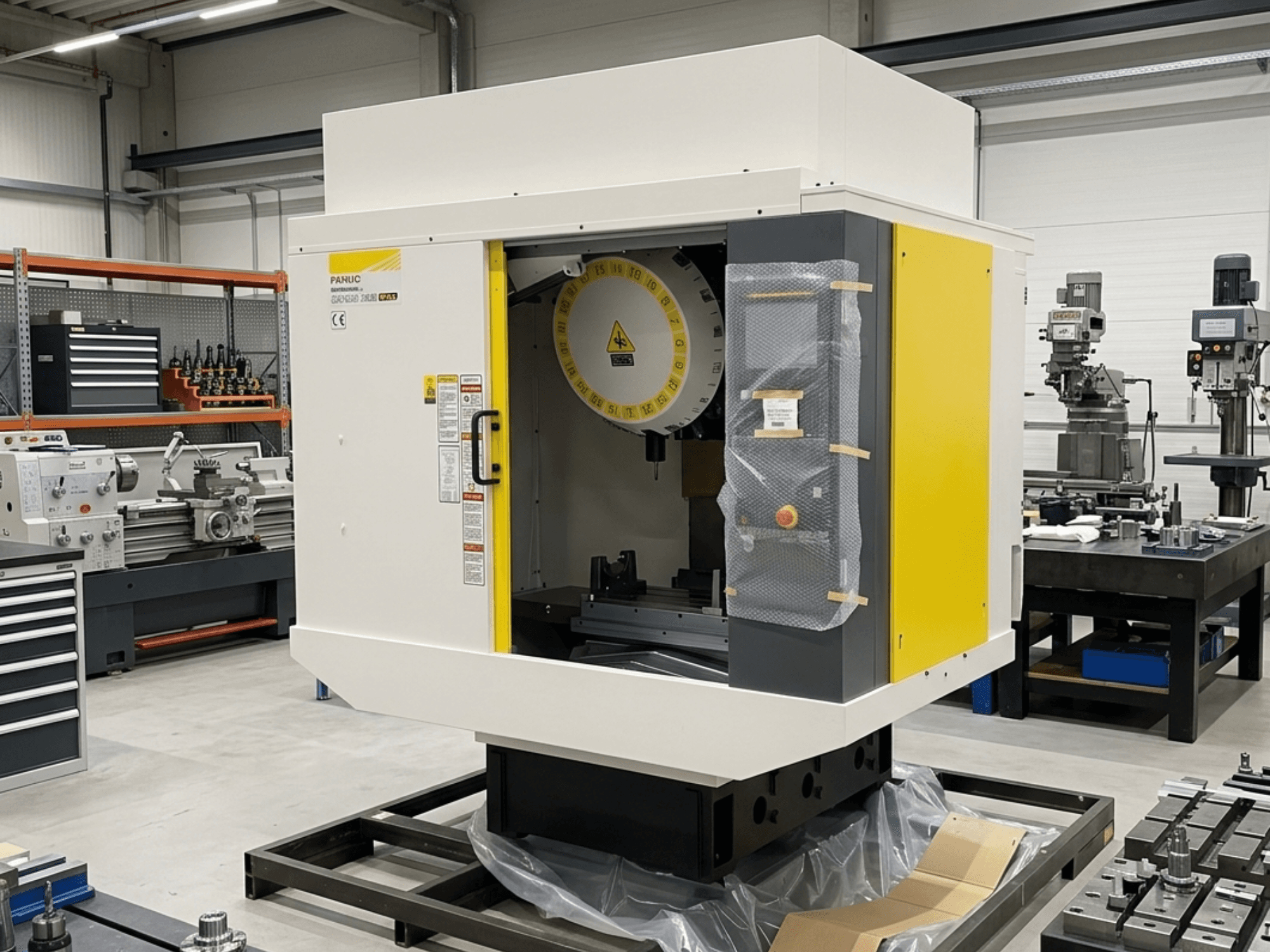

This 3-axis FANUC Robodrill Alpha D21LIB5 Plus was manufactured in 2022. It features a high-speed spindle capable of 24,000 rpm and an impressive X-axis stroke of 700 mm. The machine is equipped with a CNC control FANUC Series 31i-B5 and includes an automatic oil lubrication system. If you are looking to get high-quality machining capabilities, consider the FANUC Robodrill Alpha D21LIB5 Plus vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FANUC
- year: 2022
- MODEL: Robodrill Alpha D21LIB5 Plus
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FANUC Robodrill Alpha D21LIB5 Plus
Control Unit
- Control Brand: FANUC
- Control Model: 31i-B5
Dimensions
- Machine Weight: 2100 kg
Movement
- Number of Axes: 3
- X-axis Travel: 700 mm
Technical Specification
- Number of Tools: 21
- Spindle Speed: 24000 RPM
Additional Information
Model/format: L‑Machine Advanced (700 x 400 x 330)
Control: FANUC Series 31i‑B5 (FS31i‑B5), high‑speed CPU, basic software 31i‑B5, operator panel English, compact flash card adapter
Spindle: BIG‑24000‑CTC‑MAS, center‑through coolant, air‑through spindle
Lubrication: Automatic oil lubrication system
Covers/guarding: Telescopic cover, spindle head cover, Z‑axis rubber cover, splash guard, side plates, top cover, gutter cover, CE control enabling switch unit
Lighting: Internal LED lighting
Column option: High column +100 mm (module weight approx. 65 kg)
Conformity: CE/CCC
Condition: New machine, 1‑year guarantee
Notes: Without significant accessories or software options
Additional equipment
External transformer 20 kVA, IP23 (weight approx. 115 kg)
32A CEE power plug
Cable EU/CHNS for 24,000 rpm spindle
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
