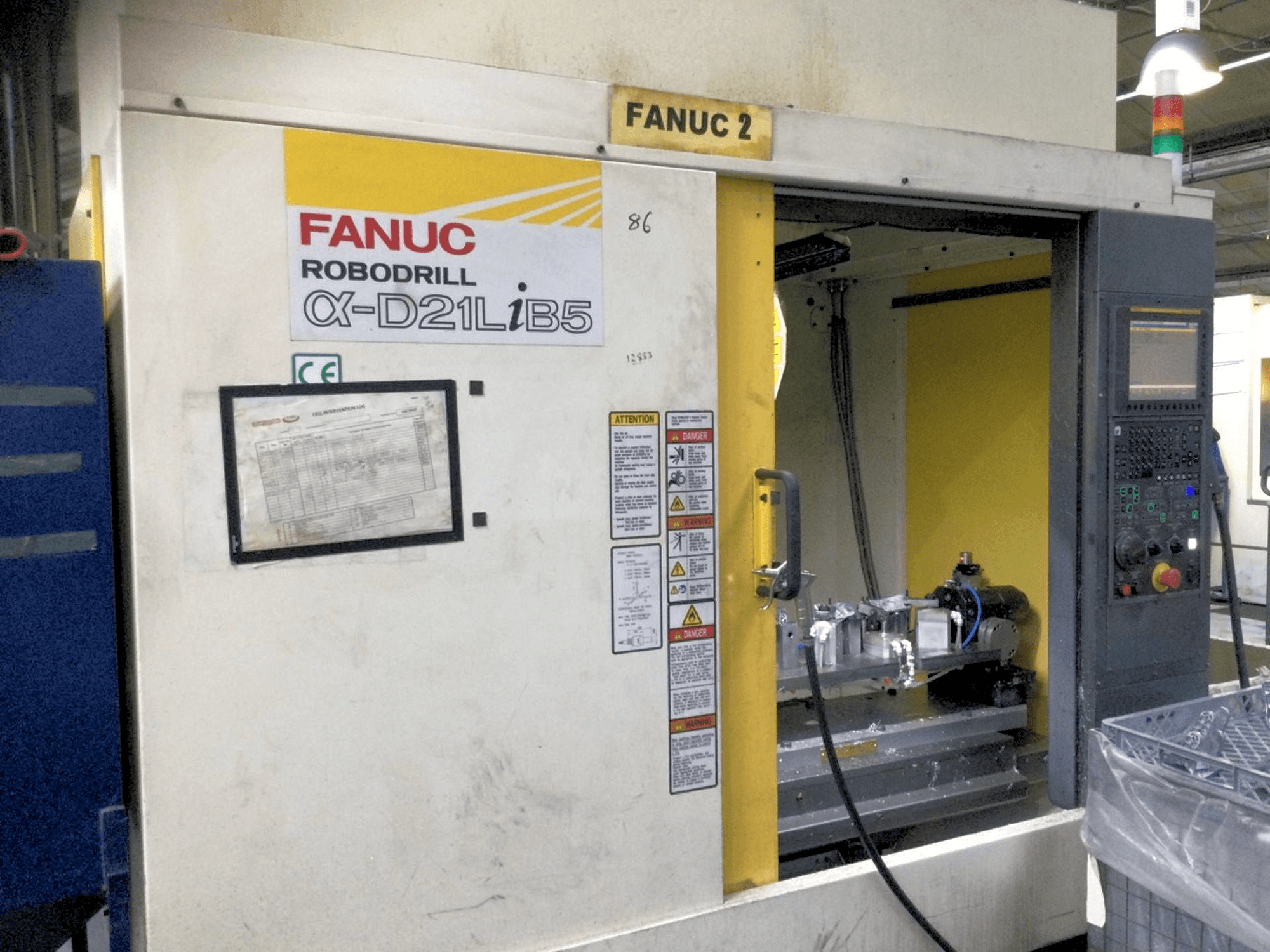

FANUC Robodrill Alpha D21LiB5 Vertical Machining center

This FANUC Robodrill Alpha D21LiB5 Vertical Machining center was manufactured in the year 2016 in Japan. It is equipped with a Fanuc Series 31I MODEL B5 control unit and has 3+1 axis. The machine has a spindle speed of 10000 rpm, is in very good condition and well maintained.

Overview

brand: FANUC
year: 2016
MODEL: Robodrill Alpha D21LiB5
application type: Milling
Location: United Kingdom
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Fanuc
GINDUMAC ID: GB-MIL-FAN-2016-00002

Technical Information

General Data

Machine weight: 2200 kg

Control Unit

Brand: Fanuc
Model: Series 31I MODEL B5

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 14.4KW
Number of axis: 4

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 850 mm
Outer width: 410 mm

Tools

Slots in storage: 21
Max weight: 3 kg
Max tool diameter: 850 mm
Max tool length: 250 mm
Type of tool holder: BT 30

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min - max height under spindle: 250 - 580mm
- - Rapid feedrates: 54m/minute
- - Tool setter
- - Integrated 4th axis and tailstock
- - Fume extractor
- - Coolant
- - High-torque spindle with bbt-30 option
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
