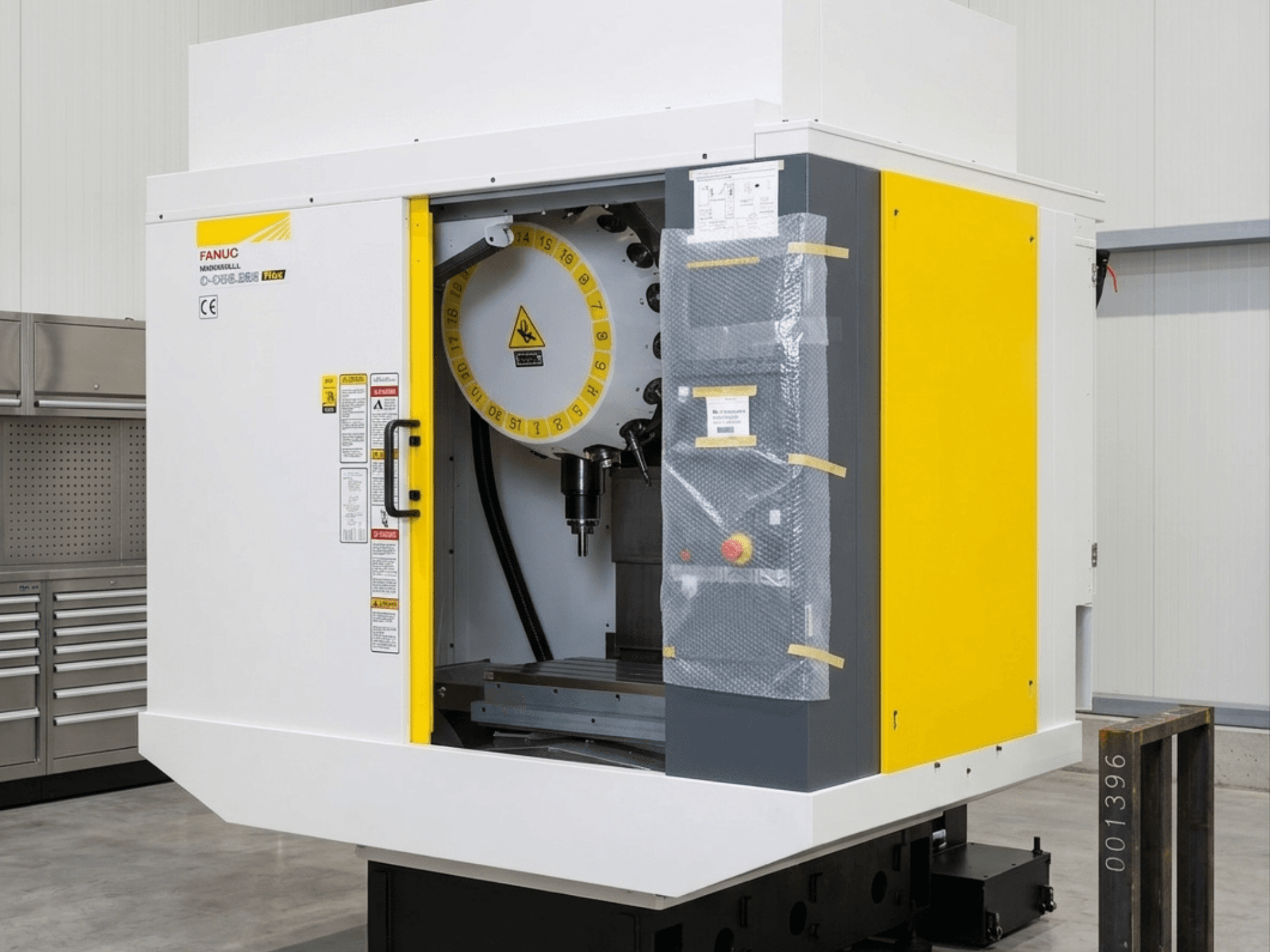

- ➤ Used FANUC Robodrill D21MIB 5ADV Plus | Machining Center
This 3-axis FANUC Robodrill D21MIB 5ADV Plus was manufactured in 2023. It features a high-speed spindle capable of 10,000 rpm and a robust automatic oil lubrication system. The machine includes a center-through coolant system and a servo turret for enhanced efficiency. If you are looking to get high-quality machining capabilities, consider the FANUC Robodrill D21MIB 5ADV Plus vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FANUC
- year: 2023
- MODEL: Robodrill D21MIB 5ADV Plus
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FANUC Robodrill D21MIB 5ADV Plus
Control Unit
- Control Brand: FANUC
- Control Model: 31i-B5
Dimensions
- Machine Weight: 2250 kg
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Mechanical unit: D21MiB5
Spindle: BIG-10000-MAS-CTC
Spindle motor: high torque CTC
Center-through coolant system (CTC)
Air blow center-through
Flood coolant piping
CTC coolant piping
Automatic oil lubrication system
Servo turret: BT-T21-MAS
Compact flash card adapter
Operator panel: English
Internal LED lighting
Designation of control axes
Designation of two additional axes
Parameter setting: 4th axis
Parameter setting: 5th axis
High column: 300 mm
Spindle head full cover
Z-axis single plate cover
Splash protection enclosure
Air-through CTC kit
Transformer: 20 kVA IP23
Mechanical unit weight: approx. 2250 kg
Condition: New machine
Warranty: 1 year
Additional equipment
Robot interface 2 without hub
Robot connection function
Additional I/O: DI/DO 48/32
