Feeler - QM-32SI-MIL-FEE-2003-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- FEELER QM-32 Vertical Machining Centre

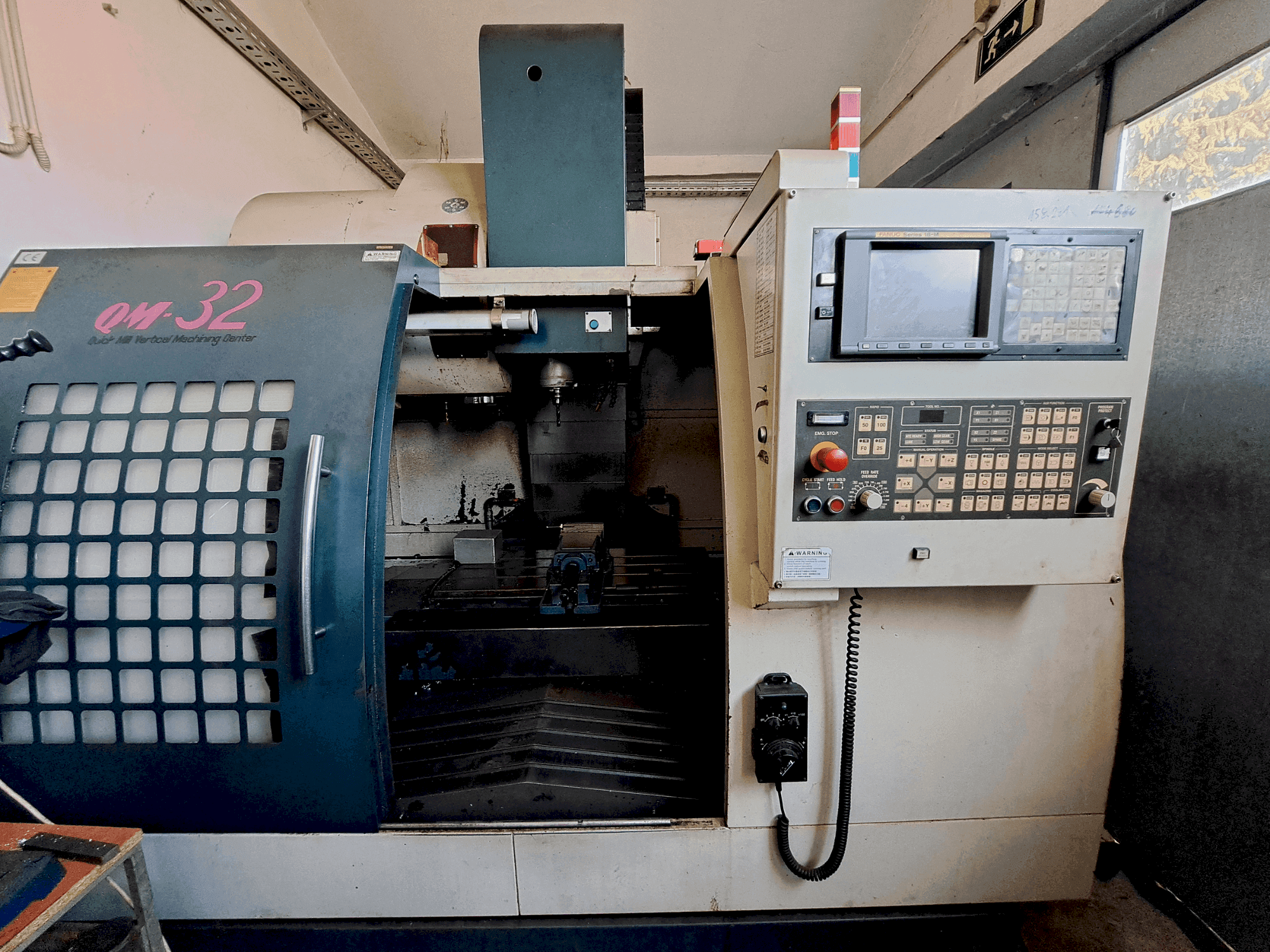

This FEELER QM-32 Vertical Machining Centre was manufactured in the year 2003 in Taiwan. It is equipped with a FANUC 18-m control unit. It is included with a Renishaw Tool Measurement System, operation documentation and 5 BT-40 Tool Holders.
Overview
- brand: Feeler
- year: 2003
- MODEL: QM-32
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - Feeler QM-32
General Data
- Measurements width: 2350 mm
- Measurements depth: 3400 mm
- Measurements height: 2500 mm
- Machine weight: 5800 kg
Control Unit
- Model: 18-m
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 18 Kw
- Number of axis: 3
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 550 mm
- Z-AXIS Movement: 500 mm
Additional Equipment
- - Renishaw Tool Measurement System
- - Operation Documentation
- - 5 BT-40 Tool Holders
Additional Information
- Technical Machine Benefits:
- - Cooling: external + through spindle
- - Table dimensions: lxw 950mm x 460mm
- - Number of magazine stations: 24 (a. T. C. )
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
