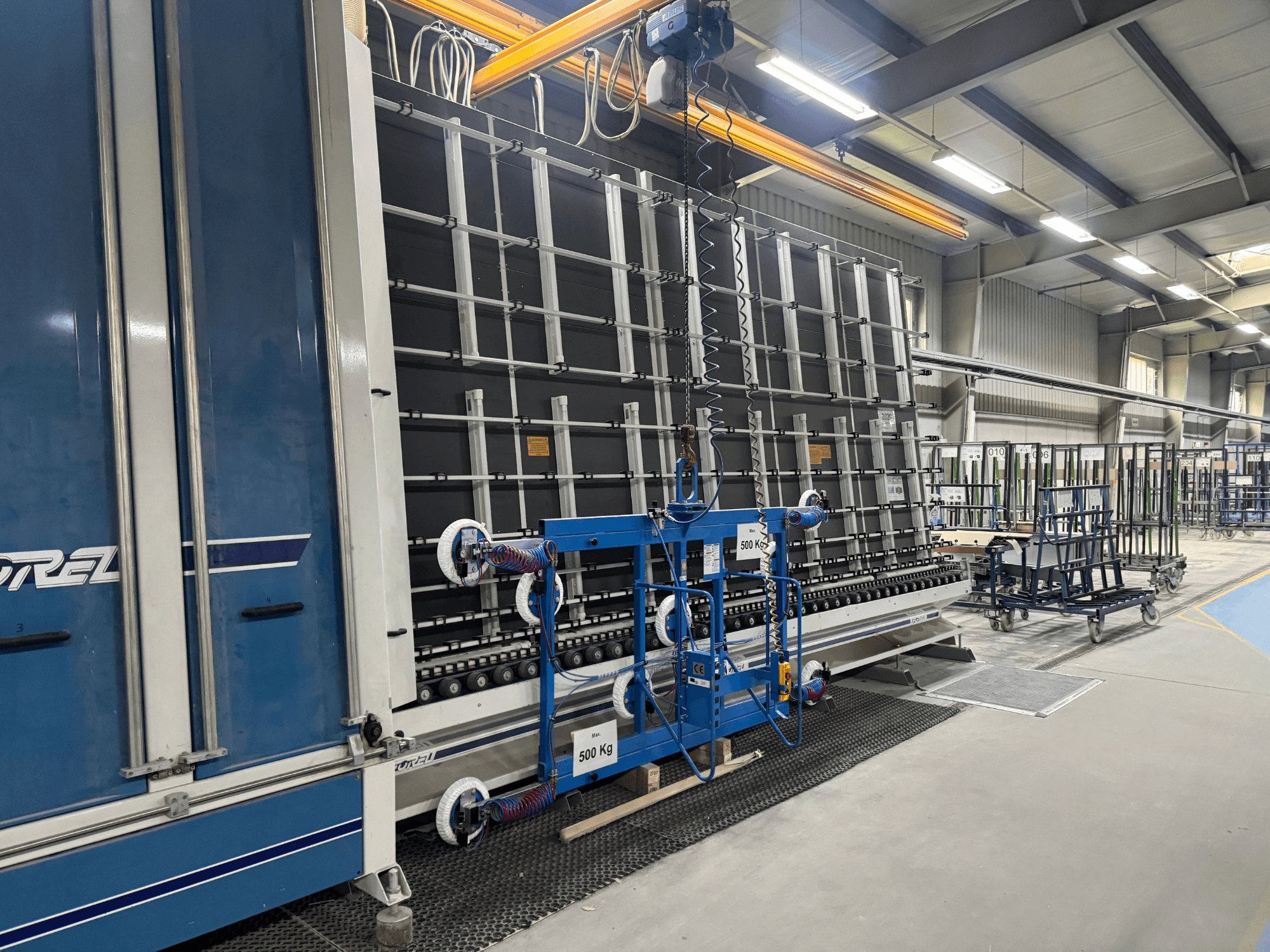

This FOREL VW2800AO was manufactured in 2014. It features a comprehensive setup for glass processing, including edge deletion, inspection, frame placement, assembly, gas filling, pressing, spacer application, and sealing capabilities. Dimensions are substantial with a length of 8950 mm and height of 4050 mm. It operates under continuous conditions, adhering to CEI EN 60204-1 standards, with a total installed power of 35 kW. Contact us for more information about this machine.
Overview
- brand: FOREL
- year: 2014
- MODEL: VW2800AO
- application type: Other Machine Tools
- Location: Germany
- machine type: Machine Tool
Technical Information - FOREL VW2800AO
Dimensions
- Machine Depth: 8950 mm
- Machine Height: 4050 mm
- Machine Weight: 3900 kg
Additional Information
Additional information
Electrical:
Standards: CEI EN 60204-1
Voltage and Frequency: 400 V, 50/60 Hz, 3P+N+PE
Insulation Voltage: 1000 V; Auxiliary Circuits: 24 V AC and 24 V DC
Voltage Limits: 400 V ± 10%; Frequency: 50/60 Hz ± 1%
Temperature Range: +5°C to +40°C
Humidity: <80%
Altitude: <1000 m above sea level
Rated Current: Motor-driven devices 34 A, Heating 20 A
Protection Class: IP 55
Power: Total Installed 35 kW
Operating conditions: Continuous operation
Grounding Type: TT
Minimum Cable Cross-section: 16 mm²
Compressed Air Consumers: Quick coupling ø 1/4", 6 bar; Compressed air consumption 50 l/min (peak)
Water Network: Connection sleeve N 1 Rp ½", core ø 17, 2.5 bar; Drains: Connection sleeve N 1 Rp 1"14, core ø 40; Consumption depends on glass type and dirt level
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
