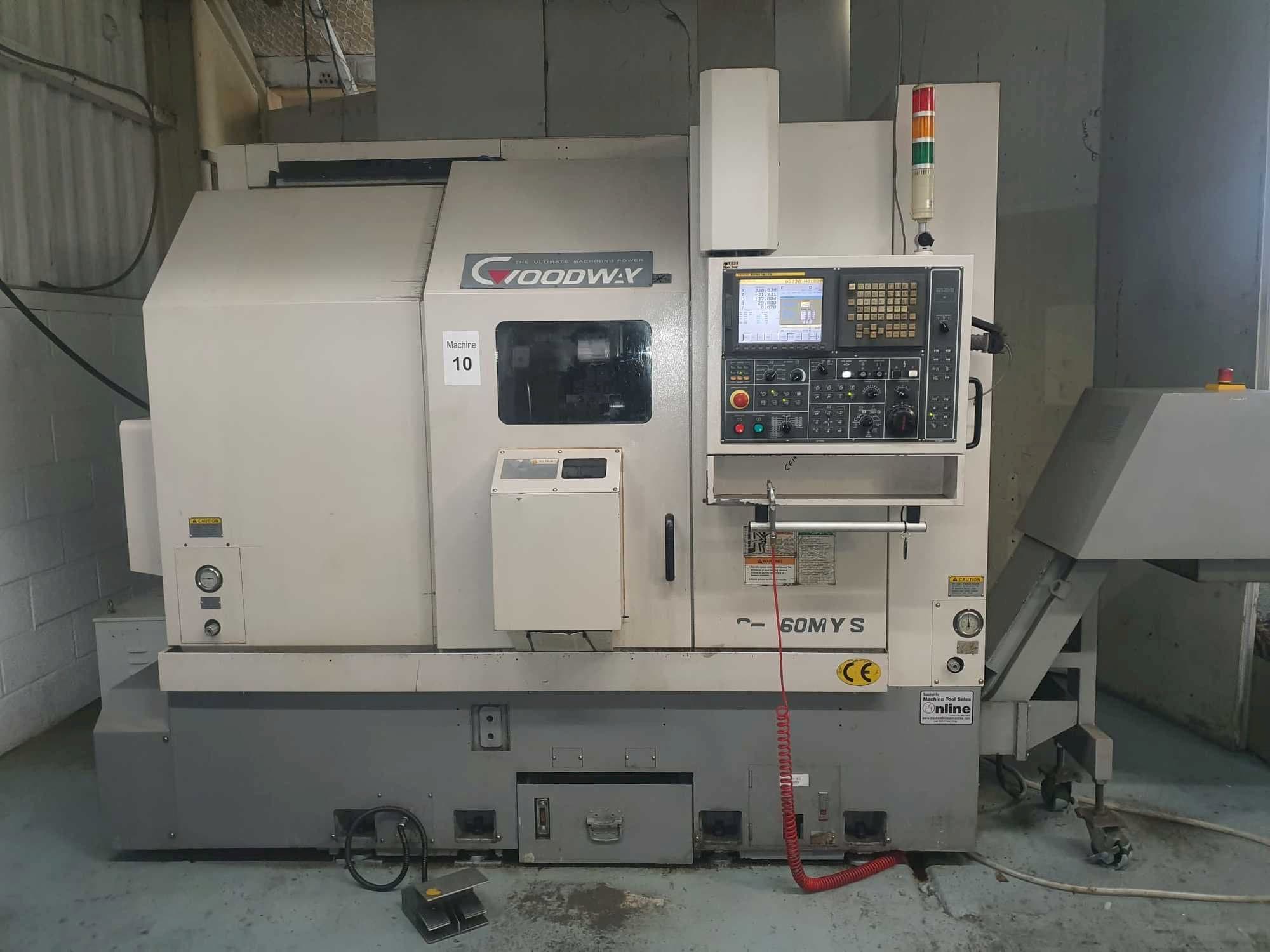

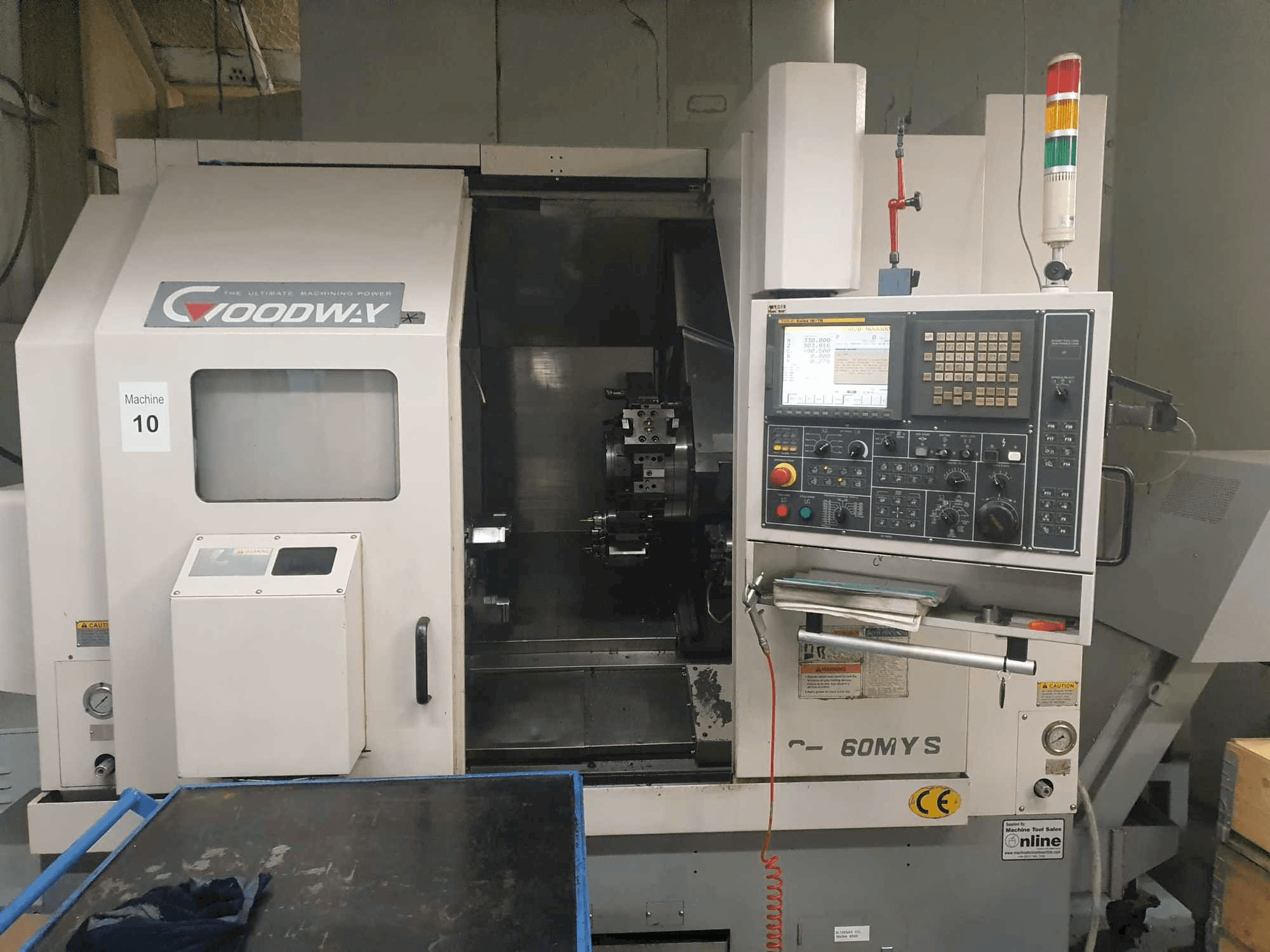

Front view of Goodway GS-260MYS  machine

Goodway GS-260MYS

Goodway - GS-260MYS

2006

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Goodway GS-260MYS Lathe was manufactured in 2006 in Taiwan. It has a production record of only 5480 hours. It is operated through a FANUC Series 18i-TB control unit. This machine can work with a spindle speed up to 4000 rpm. It includes a Kitagawa B210 chuck, and an Auto Sirona N206 Chuck as additional equipment. It presents low hours.

Overview

  • brand: Goodway
  • year: 2006
  • MODEL: GS-260MYS
  • production hours: 5480
  • application type: Turning
  • Location: Ireland
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Fanuc
  • GINDUMAC ID: IE-TUR-GOO-2006-00001

Technical Information

General Data

  • Measurements width: 2670 mm
  • Measurements depth: 1920 mm
  • Measurements height: 2260 mm
  • Machine weight: 5800 kg

Control Unit

  • Brand: Fanuc
  • Model: Series 18i-TB
  • CNC main language: English
  • CNC language customizable: Yes

Main drive

  • Number of spindles: 2
  • Spindle speed range: 4000 1/MIN

Movement

  • X-AXIS Movement: 200 mm
  • Y-AXIS Movement: 110 mm
  • Z-AXIS Movement: 570 mm
  • C-AXIS Movement: 360 Deg MM

Workpiece

  • Workpiece drm: 420 mm
  • Workpiece weight: 230 kg

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 12
  • Type of tool holder: ER32

Media

  • Main electronic connection: 400 V
  • Power consumption: 38 kva

    Additional Information

      Machine history

      • Material type: Mild steel
      • End product: Sub contract machined parts

      Machine Benefits

      • Technical Machine Benefits:
        • - Machine with sub spindle
        • - Machine with driven tool turret
        • - Machine with y axis
      • Qualitative Machine Benefits:
        • - Low machining hours

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
