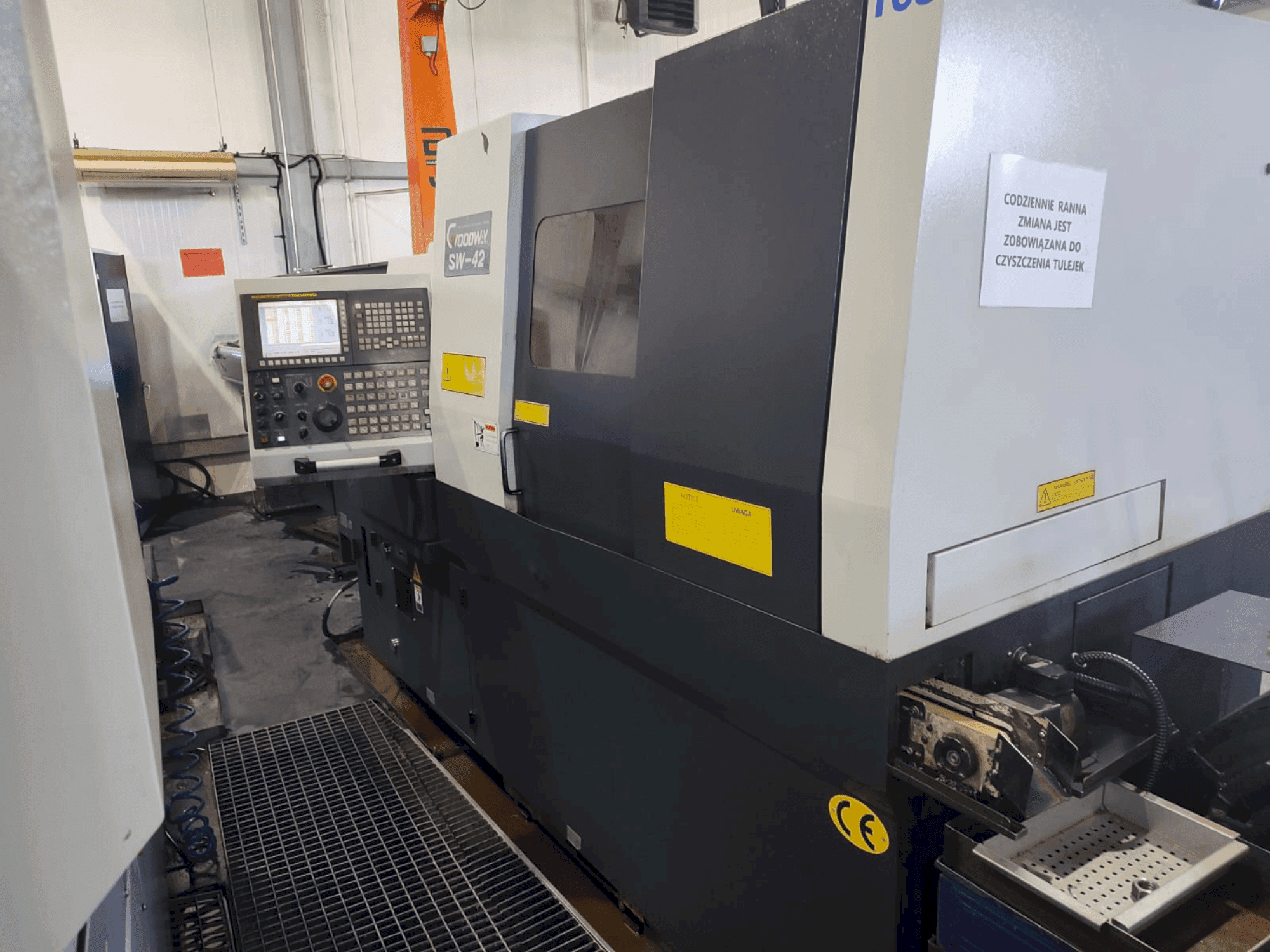

Front view of Goodway SW 42  machine

Goodway - SW 42PL-TUR-GOO-2014-00002

51,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 7-axis Goodway SW 42 swiss type turning machine was manufactured in 2014. Ideal for precision and complex machining tasks, it offers advanced functionality in a compact design. Consider the opportunity to buy this Goodway SW 42 swiss type turning machine. Contact us for more information.

Overview

  • brand: Goodway
  • year: 2014
  • MODEL: SW 42
  • application type: Turning
  • Location: Poland
  • machine type: Swiss Type Turning Machine
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - Goodway SW 42

General Data

  • Measurements width: 1550 mm
  • Measurements depth: 2950 mm
  • Measurements height: 2150 mm
  • Machine weight: 3300 kg

Control Unit

  • Brand: FANUC
  • Model: Series 31i model B

Main drive

  • Spindle speed range: 25 - 6000 rpm 1/MIN
  • Spindle motor power: 5.5 / 7.5 kW
  • Spindle bore: 42 mm
  • Number of axis: 7

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - High-pressure cooling system
    • - Parts conveyor belt

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Turning diameter over bed: 42 mm / turning diameter over cross slide: 42 mm / turning length: 110 mm
        • - Total power consumption: 25 kva
        • - 7 axes: x, z, y, c, z2, x2, c2
        • - 5-position tool holder: 20 x 20 mm / 5-position drilling holder
        • - 4 driven cross drills: max. 6000 rpm / 4 driven backworking tools: max. 5000 rpm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
