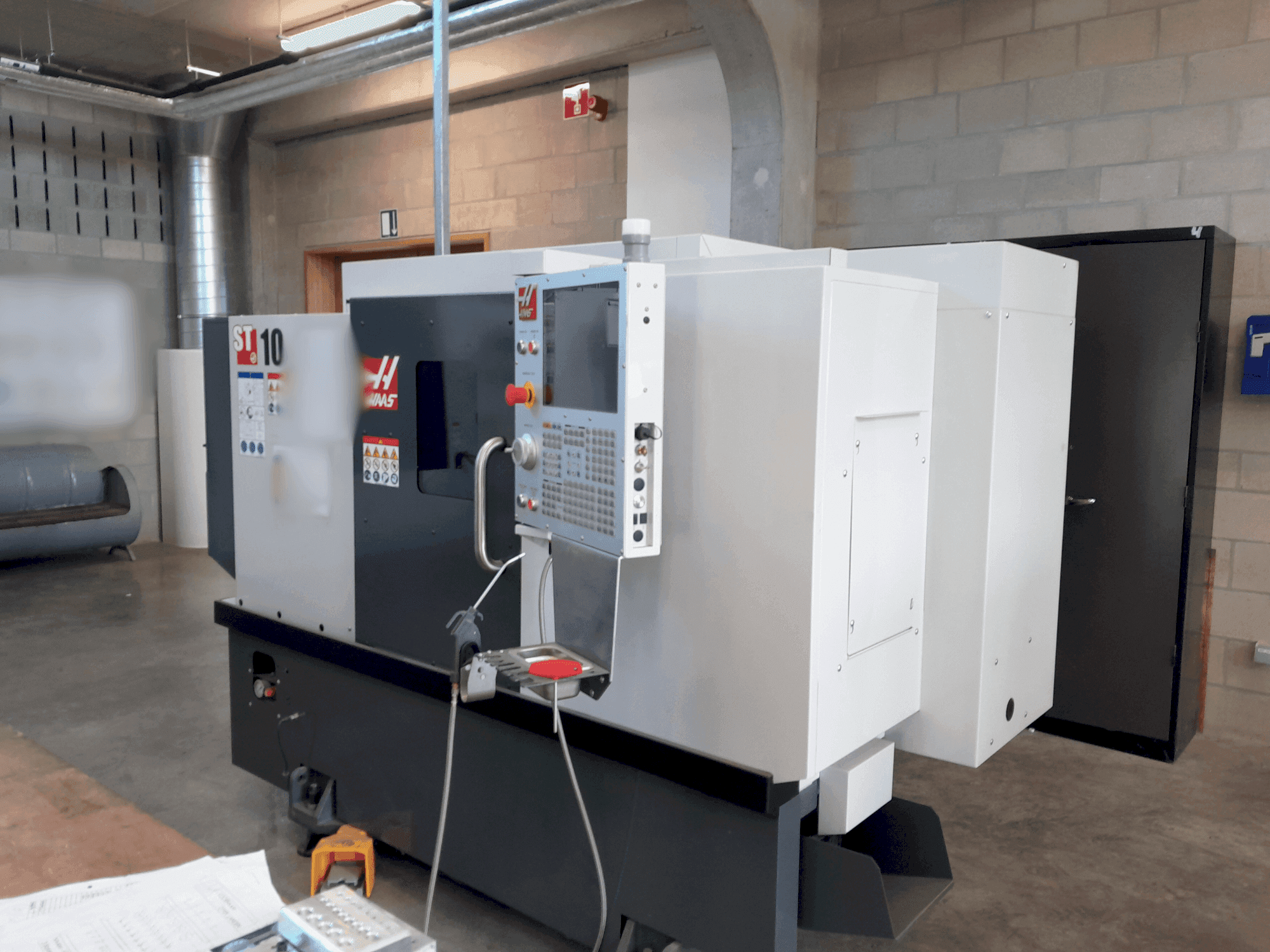

This HAAS ST-10 was manufactured in 2019. A horizontal turning machine featuring a chuck size of 165 mm and a bar capacity of 44 mm, it offers a maximum cutting diameter of 305 mm with BOT turret. With X and Z axis travels of 200 mm and 406 mm respectively, and rapid movements up to 30.5 m/min, it's ideal for efficient operations. If you are looking to get high quality turning capabilities consider the HAAS ST-10 machine we have for sale. Contact us for more information.
Overview
- brand: HAAS
- year: 2019
- MODEL: ST-10
- production hours: 6
- application type: Turning
- Location: Belgium
- machine type: Horizontal Turning Machine
- control unit brand: HAAS
Technical Information - HAAS ST-10
Control Unit
- Control Brand: HAAS
Movement
- Number of Axes: 2
- X-axis Travel: 200 mm
- Z-axis Travel: 406 mm
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Spindle nose: a2-5
- Max torque: 102. 0 nm @ 1300 rpm
Technical Machine Benefits
- Chuck size: 165 mm
- Max part swing: 419 mm
- Max cutting diameter (with bot turret): 305 mm
- Max cutting diameter (with bmt45 turret): 279 mm
- Max cutting diameter (with vdi turret): 173 mm
- Max cutting length (varies with workholding): 406 mm
- Bar capacity: 44 mm
- Max thrust x: 14679 n
- Max thrust z: 14679 n
- Max rating: 11. 2 kw
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
