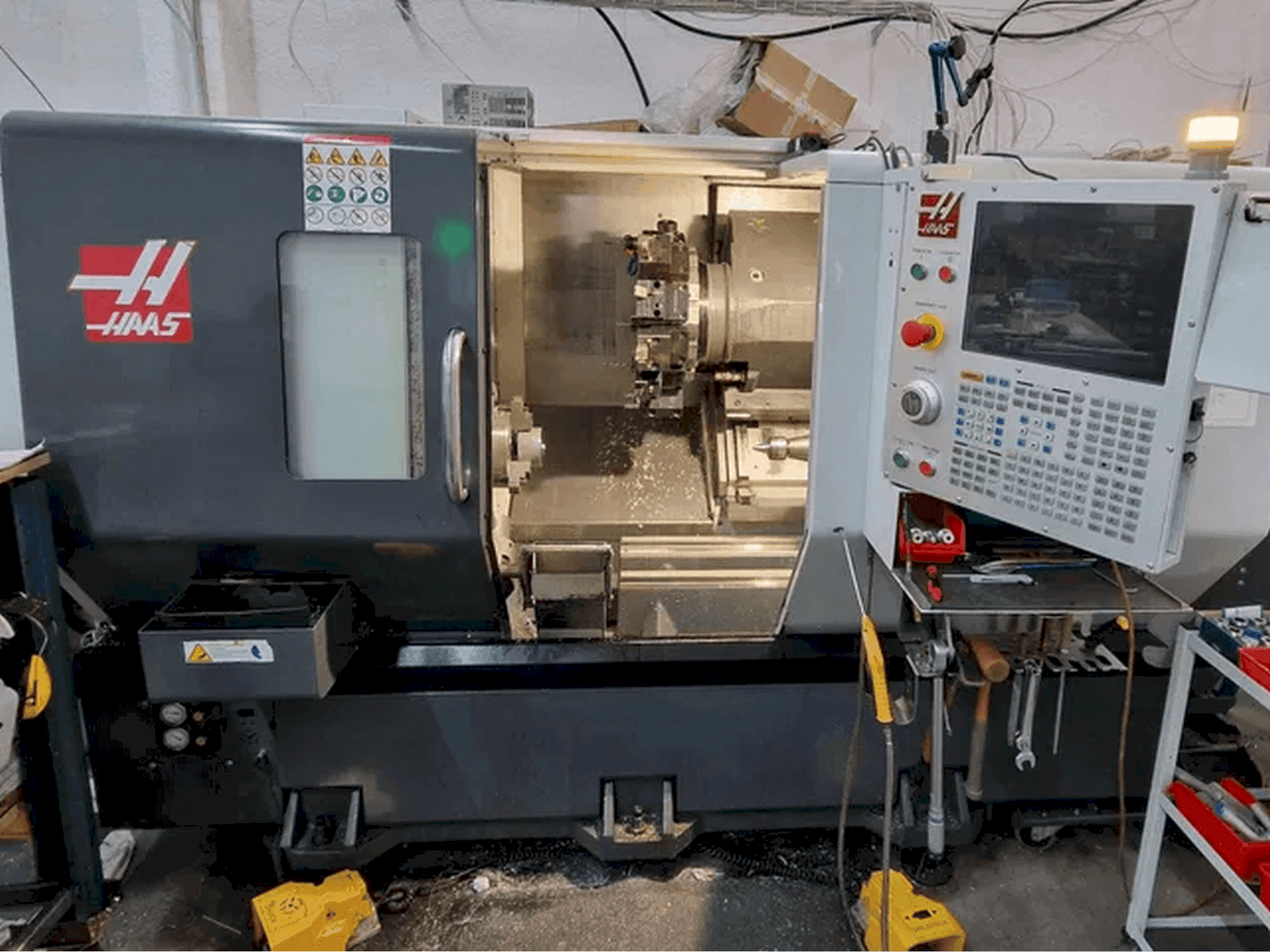

This 3-axis HAAS ST-20Y was manufactured in 2019. A robust horizontal turning machine, it offers reliable performance for precision machining. Consider the opportunity to buy this HAAS ST-20Y horizontal turning machine. Contact us for more information.
Overview
- brand: HAAS
- year: 2019
- MODEL: ST-20Y
- production hours: 3934
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: HAAS
Technical Information - HAAS ST-20Y
Control Unit
- Control Brand: HAAS
- Control Model: NGC
Movement
- X-axis Travel: 213 mm
- Y-axis Travel: 51 mm
- Z-axis Travel: 572 mm
Technical Specification
- Spindle Power: 14.9 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- ATP – Automatic tool probe
- Install Kit – Bar feeder installation kit with adapters for bar diameters 9–44 mm /
- Programmable, pneumatically operated finished part catcher (max. part dimensions: 108 mm x 54 mm, max. weight: 2.27 kg)
- CONVEYOR – Chip conveyor (belt type)
- LINER ADAPTER 2.00 – Haas liner adapter for spindle with bar diameter 2" (51 mm)
- HAAS Bar Feeder – Compatible with HAAS lathes (ST-10 to ST-35), for automatic bar feeding
- LT-6K-UP – Option to increase the speed of driven tools up to 6000 rpm
- PCAT – Pneumatic part catcher, programmable, for parts up to 96 mm x 152 mm
- PTS – Hydraulic tailstock
Machine Benefits
Technical Machine Benefits
- Chuck size: 210 mm
- Maximum part length: 533 mm
- Maximum turning diameter: 298 mm
- Maximum cutting length: 572 mm
- Spindle bore capacity: 64 mm
- Bmt65 turret with 12 positions
- Driven tools, c-axis, max. Rotational speed 4000 rpm, max. Power 9. 0 kw
- Set of driven tool holders (3 straight + 3 angular)
- Hydraulically controlled tailstock
- Option to increase the maximum speed of driven tools from 4000 rpm to 6000 rpm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
